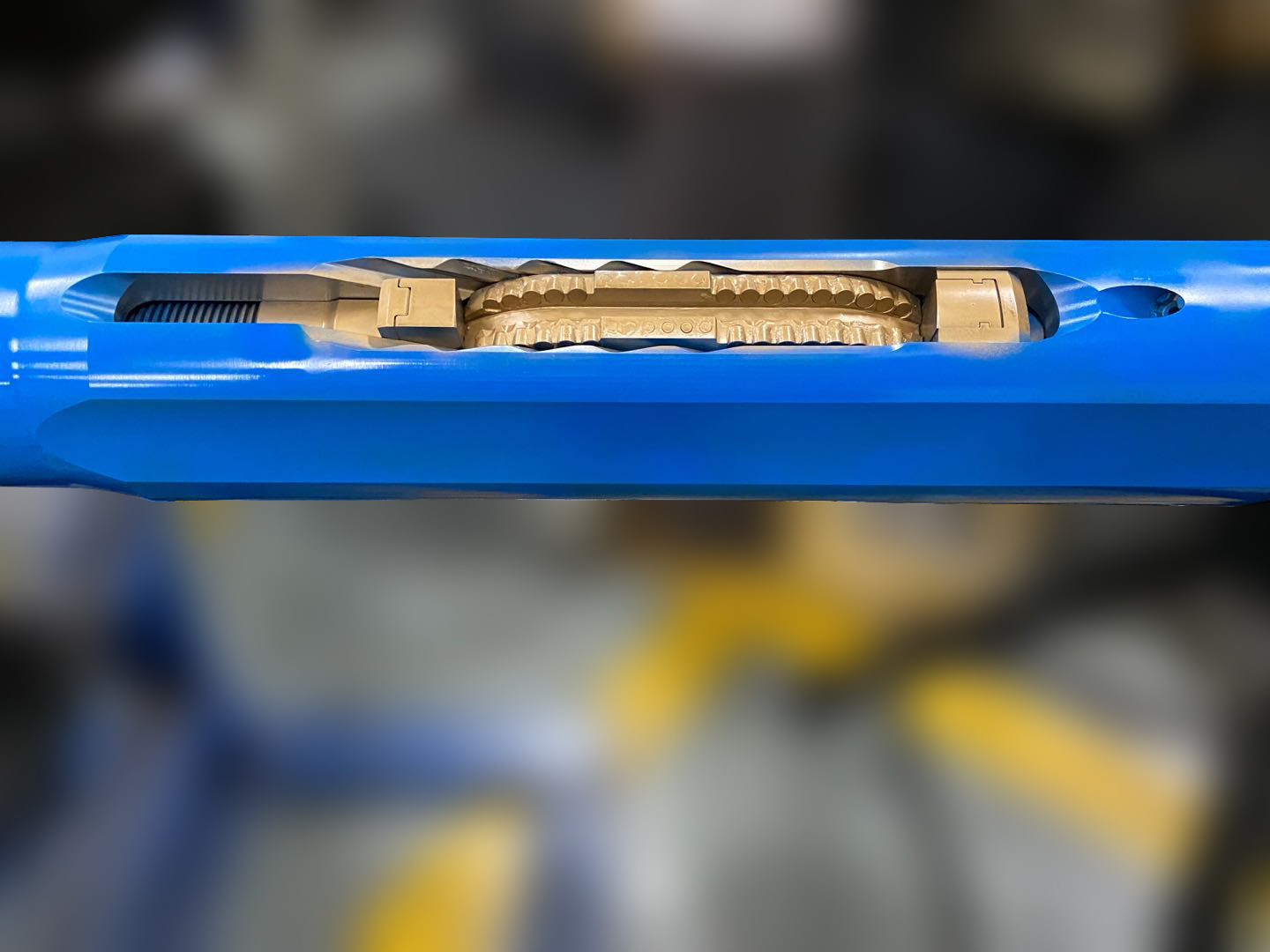

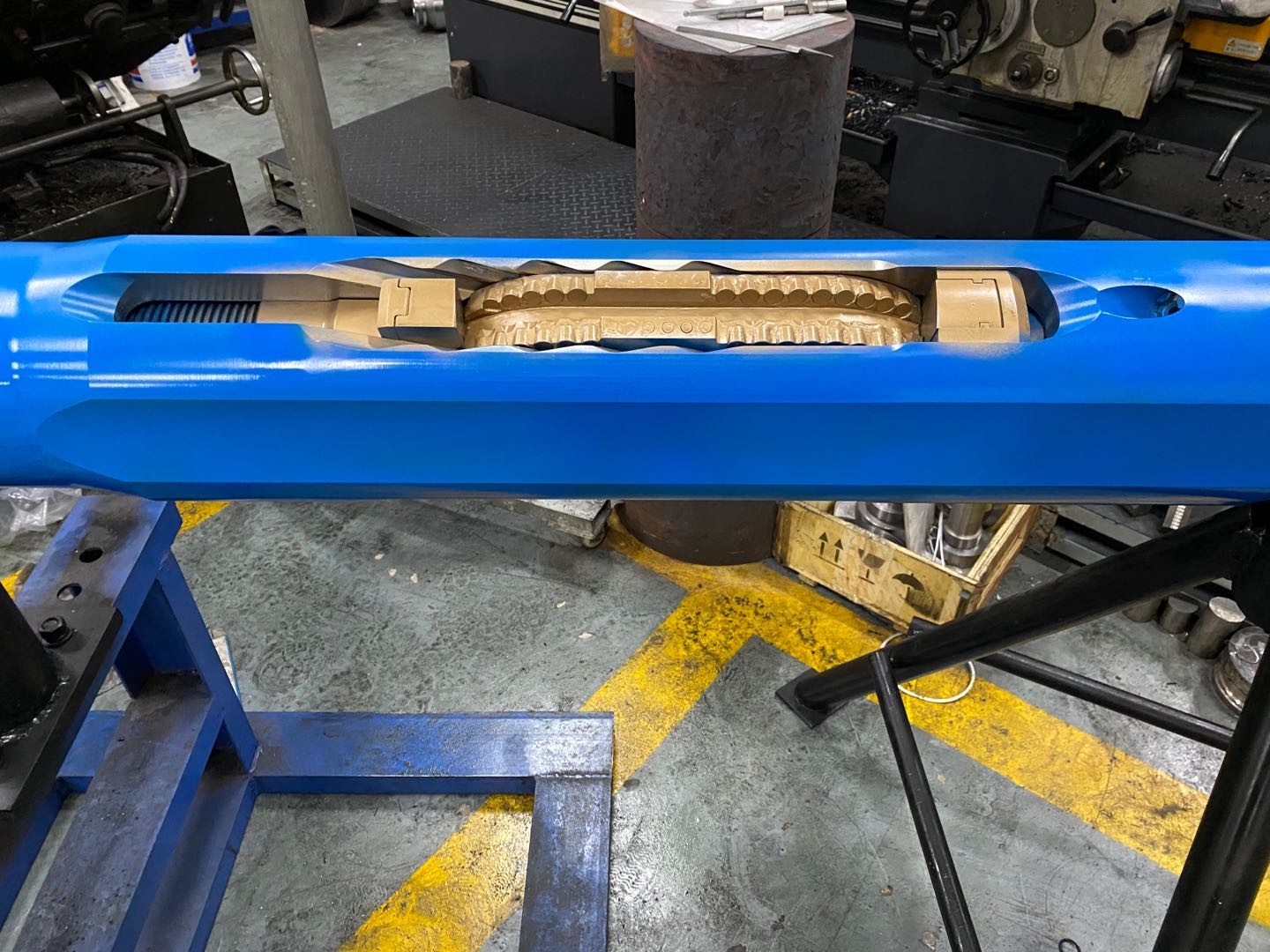

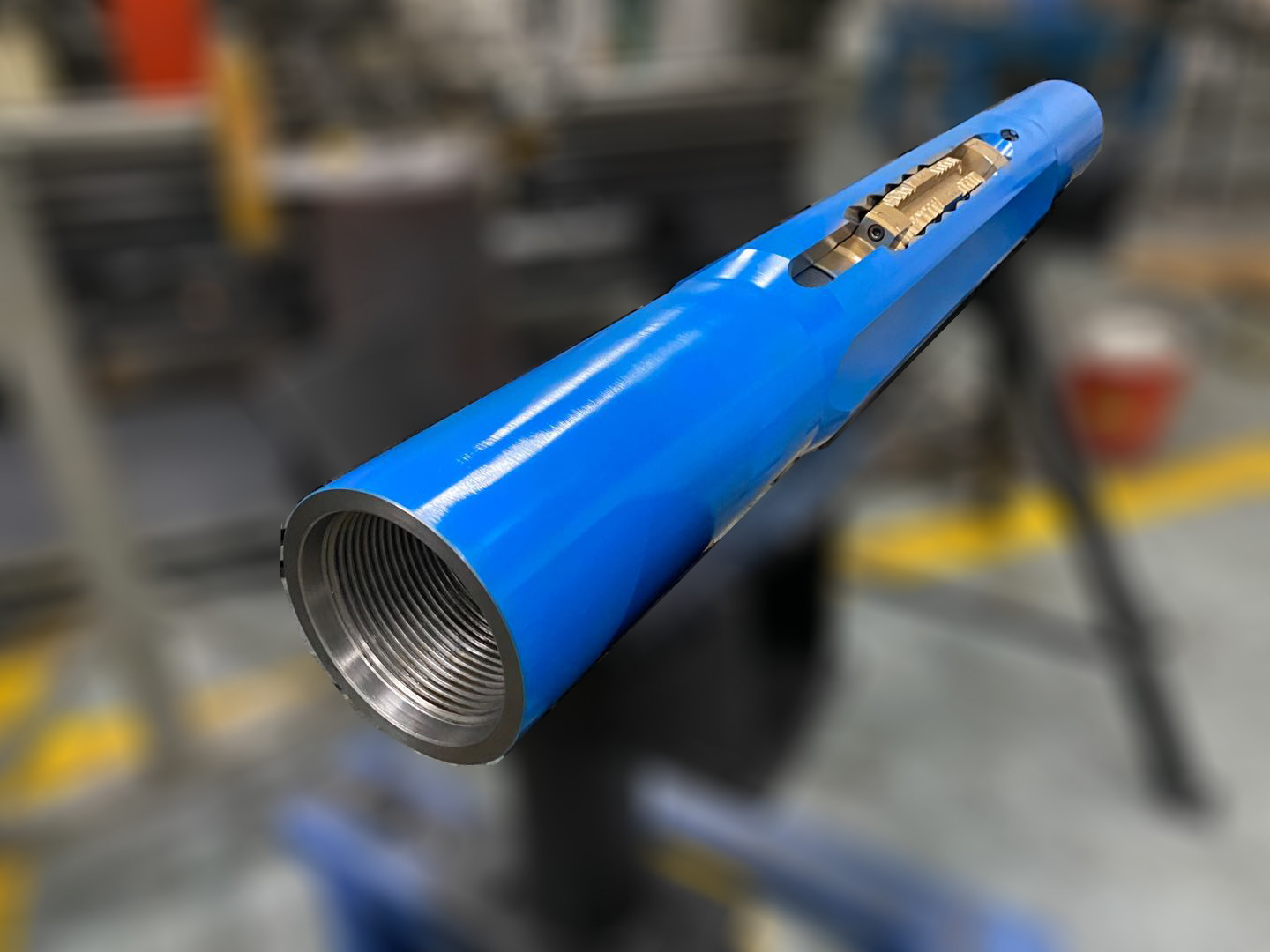

12 Inch oil Hole Down Diamond Reamer with PDC Fixed Blades
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Diamond Drilling Tool | Use | Oil ,gas ,minig ,drilling |
|---|---|---|---|
| Material | Alloy Steel ,diamond | Machine Type | Drilling Tool |
| Processing Type | Forging ,Casting | Application | Rock Drill Of Oil ,Mining ,Water ,Gas |
| Size | 12"(3408mm) | Advantange | High -efficiency |
| Cutter Diameter | 16mm | Usage | Oil ,Gas |
| Blades | 3 Blades | Markets | Global |
| Packing | Wooden Box Or Steel Box | ||
| Highlight | 12" Alloy Steel Body PDC Reamer,Drilling Bore Hole Assembly,PDC Reamer Bore Hole Assembly |
||
Product Description
12 Inch oil Hole Down Diamond Reamer with PDC Fixed Blades
Production Name :
PDC Drilling Tool ,Diamond Drilling Tool ,Oil Drilling Tool ,underground Drilling Tool , oil Well finisehd drilling Tool .
PDC Reamer , Fixed Cutting Drilling Tool , PDC Hole Opener ,Diamond Rotary Drilling Tool .
Description :
Our PDC underreamers revolutionize the realm of oil extraction by excelling in borehole expansion, distinguishing themselves from conventional metal-cutting tools. Crafted explicitly for the demands of mining and excavation, these tools showcase unparalleled efficiency and superiority. With precision-engineered polycrystalline diamond compact (PDC) cutters, our underreamers ensure optimal performance, enhancing drilling speed, accuracy, and overall productivity. Whether it's rock formations or challenging terrains, our tools stand out for their ability to effortlessly navigate and expand boreholes with precision and reliability, setting new standards in the realm of oil extraction technology.
Specification
Available Size :
| Tool Series | Overall Body Diameter | Standard Fishing Neck Diameter | Enlarge Hole Size | Minimum Pilot Hole Size | Internal Bore Diameter | Maximum Thru Flow.gpm |
| 3500 | 3.50 | 3-1/2 | 4 - 4-1/2 | 3 3/4 | 0.875 | 141 |
| 4000 | 4.00 | 4 | 4-1/2 - 5-1/2 | 4 1/4 | 0.875 | 141 |
| 5500 | 5.50 | 5-1/4 | 6-1/2 - 7 | 5 3/4 | 1.25 | 230 |
| 5625 | 5.62 | 5-1/4 | 6-1/2 - 7 | 5 7/8 | 1.38 | 350 |
| 5800 | 5.80 | 5-1/4 | 6-1/2 - 7-3/8 | 6 1/8 | 1.38 | 350 |
| 6125 | 6.13 | 5-3/8 | 7 - 7-1/2 | 6 3/8 | 1.38 | 350 |
| 6375 | 6.38 | 5-3/8 | 7 - 8 | 6 3/4 | 1.38 | 350 |
| 7300 | 7.25 | 6-1/4 | 8 - 9 | 7 1/2 | 1.50 | 500 |
| 8000 | 8.00 | 7-1/4 | 9-10 - 1/4 | 8 1/4 | 2.00 | 750 |
| 9250 | 9.25 | 7-1/4 | 10-1/4 - 11-3/4 | 9 1/2 | 2.00 | 750 |
| 10000 | 10.00 | 8-1/2 | 11-12 - 1/2 | 10 1/2 | 2.50 | 1200 |
| 10375 | 10.38 | 8-1/2 | 11-3/4 - 13-1/2 | 10 7/8 | 2.50 | 1200 |
| 11625 | 11.63 | 10-1/2 | 13 - 15 | 12 1/8 | 3.00 | 1700 |
| 13000 | 13.00 | 10-3/4 | 14-1/2 - 16 | 13 1/2 | 3.00 | 1700 |
| 14250 | 14.25 | 11 | 15-3/4-18 - 1/4 | 14 1/2 | 3.00 | 1700 |
| 16000 | 16.00 | 12 | 17-1/2 - 20 | 16 1/2 | 3.00 | 1700 |
| 16000 | 16.00 | 12 | 18 1/2 - 22 | 17 1/2 | 3.00 | 1700 |
| 17500 | 17.50 | 12 | 21-1/2 - 24 | 18 1/18 | 3.00 | 1700 |
Benefits and Advantage :
- Enlarges hole while drilling in single run
- Ensures smooth engagement for consistent full-gauge well bore
- Provided high stress tolerance and maximum durability
- Reduces drill string vibration
- Improves drilling efficiency , BHA stabilization
- Promotes full or low flow through BHA
- Enhance hole cleaning
- Optimizes hole opening ratios of up to 25%
- Promotes operational simplicity ,reliability
- Reduces no- productive time (NPT) and Costs
Whether it is expanding an existing well bore or reaming while drilling. Regardless of whether it is
formed or operated, the reamer can provide the greatest durability parameters.This universal tool
includes a single body modeled by finite element engineering design analysis (FEA) to ensure
a robust low-quality design.This concentric symmetrical mass balance design provides the best
opening ratio, up to 25%, and increases the flow around the tool,To enhance hole cleaning and reduce
downhole vibration.The design has excellent mechanical advantages. The reamer is a spherical
drop or pass that is opened and closed by one of two hydraulic activation methods.Through the pre-set nozzle,
in the nozzle, the fully controlled pressure drop activates the tool. Either way, the reamer can be completely,
Open consistently, providing simple, reliable and cost-effective hole enlargement at one time.
The lower reamer provides a simple and reliable method to solve the low drilling efficiency and the
out-of-specification wellbore that may increase the expansion of the wellbore.
1) Costs are increasing exponentially.
2) Applicable to all formations and RSS
3) Simple single finite element modeling tool design
4) Special Trident PDC knife block
5) Adjustable nozzle with integrated runner
6) Hydraulic start by falling ball or controlled pressure drop
7) Concentric symmetrical mass balance design
8) Orbital feed design for fixing and unfolding tools
9) Two-way capability
10) Tool deployment independent of BHA weight
11) Formation strength and operating parameters
