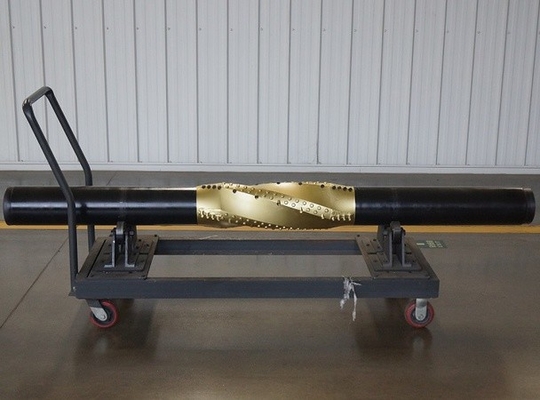

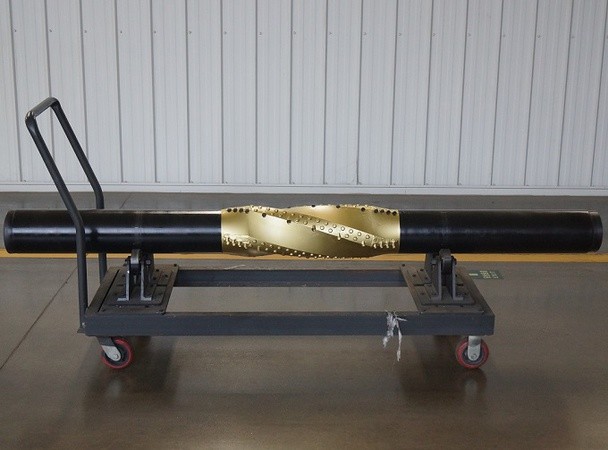

Oilfield Drilling Reamer Tool 12-1/8 Inch 3080mm PDC Downhole Assembly
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Diamdong Drilling Tool | Use | Oil ,gas ,minig ,drilling |
|---|---|---|---|
| Material | Alloy Steel ,diamond | Machine Type | Drilling Tool |
| Processing Type | Forging | Application | Rock Drill Of Oil ,Mining ,Water ,Gas |
| Size | 12-1/8"(3080mm) | Advantange | High -efficiency |
| Cutter Diameter | 16mm | Usage | Oil ,Gas |
| Blades | 4 Blades | Markets | Global |
| Packing | Wooden Box Or Steel Box | ||
| Highlight | polycrystalline diamond compact reamer china,Diamond Reamer china,PDC Drill Reamer china |
||
Product Description
Oilfield Drilling Reamer Tool 12-1/8 Inch 3080mm PDC Downhole Assembly
Description :
Drilling performance is improved while borehole quality is increased when underreamed. The variety of tools available assures excellent performance in every application with operating flexibility ranging from demountable cutters to cutters that include milled teeth, tungsten carbide inserts, and polycrystalline diamond compact (PDC) cutters.
Specification:
| Specification | ||
| Adapted Well | 12-1/4" | 311.15mm |
| Nominal Diameter | 12-1/8" | 307.98mm |
| Inner Diameter | 2.8" | 71mm |
| Fishing Neck OD(Dn) | 7.99" | 203mm |
| Total Length(L) | 104.33" | 2650mm |
| Up Neck Length(LT) | 35.56" | 903.3mm |
| Down Neck Length (Ld) | 30.44" | 773.30mm |
| Blades | 4 | |
| Connection | ||
| Top | Down | |
| In BHA | 6-5/8Reg BOX | 6-5/8Reg BOX |
| Near Bit | 6-5/8Reg BOX | 4-1/2REG BOX |
| Operation Parameter | ||
| Max. WOB | 50T | 110231 LB |
| Max.Pull Up Force | 200T | 440925 LB |
Feature :
Fast drilling in a soft formation with a bit gauge that is limited in length results in an uneven bore hole trajectory, which causes bit bouncing, high torque, and drag.
By scraping the narrow, key-seating, etc. portions, the crocodile reamer may smooth out the uneven well side.
The "full coverage"cutters cutting the unnecessary rocks in a rounded manner
The radial vibration can be decreased by using specially shaped cutters on the reamer supply series supporting point on the contact between the BHA and hole wall.
Notable features :
We provide three PDC reamer kinds in various sizes:
- Assembler in BHA
- cutting the walls of the borehole
- Stabilizing the BHA while drilling.
- Replace the stabilizer and better than stabilizer.
