12-1/4" PDC Reamer Bit Diamond Reamer Bits Rock Drilling Tool
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Diamdong Drilling Tool | Use | Oil ,gas ,minig ,drilling |
|---|---|---|---|
| Material | Alloy Steel ,diamond | Machine Type | Drilling Tool |
| Processing Type | Forging ,Casting | Application | Rock Drill Of Oil ,Mining ,Water ,Gas |
| Size | 12-1/4"(311.1mm) | Advantange | High -efficiency |
| Cutter Diameter | 13mm | Usage | Oil ,Gas |
| Markets | Global | Packing | Wooden Box Or Steel Box |
| Highlight | 8 3/4" PDC Reamer Bit,PDC Reamer Bit Rock Drilling Tool,Diamond Reamer Bits Rock Drilling Tool |
||
Product Description

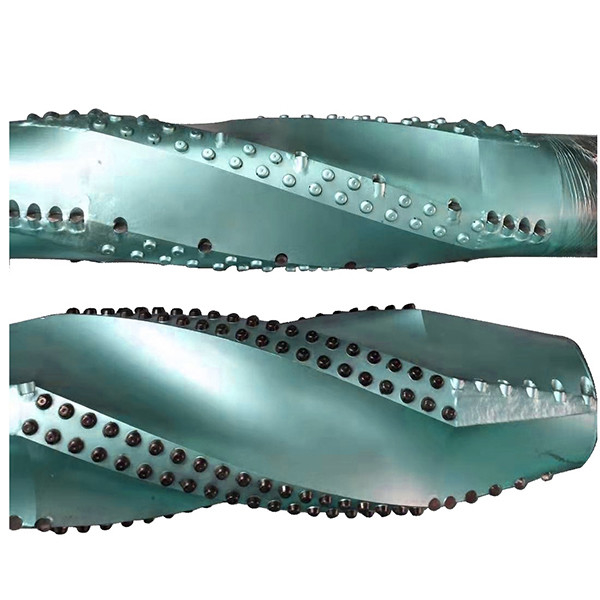

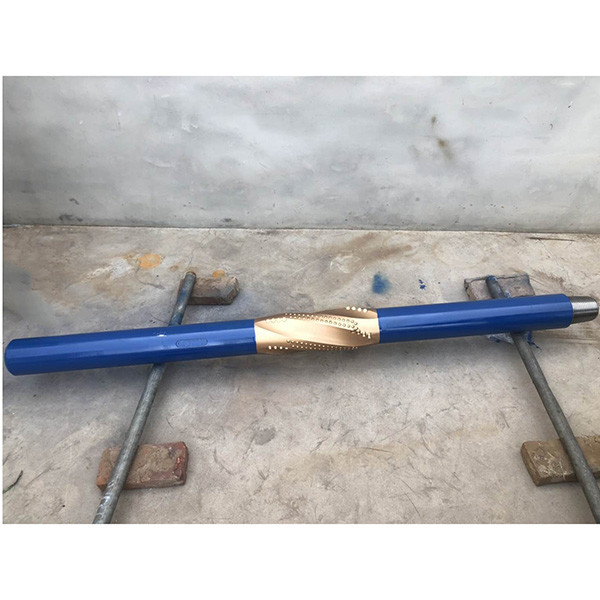

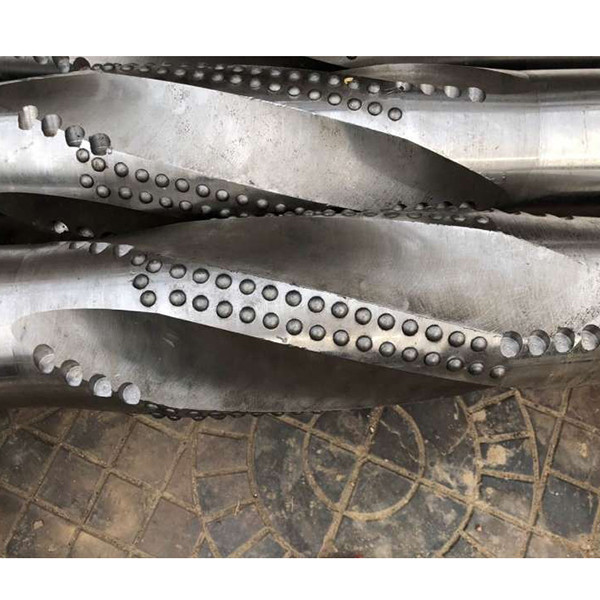

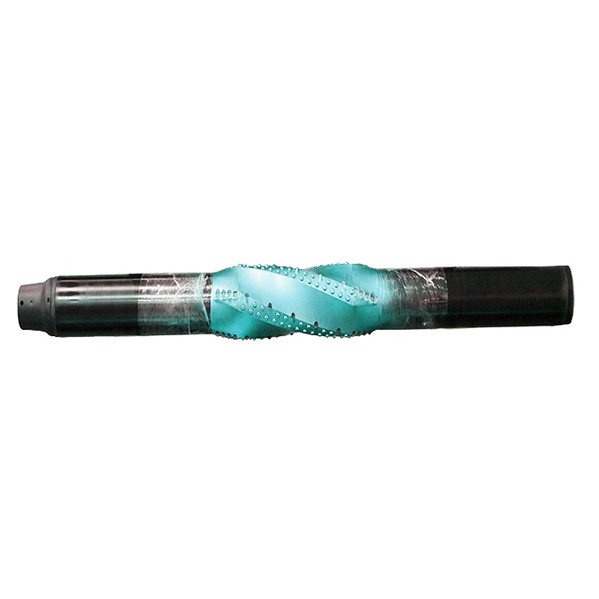

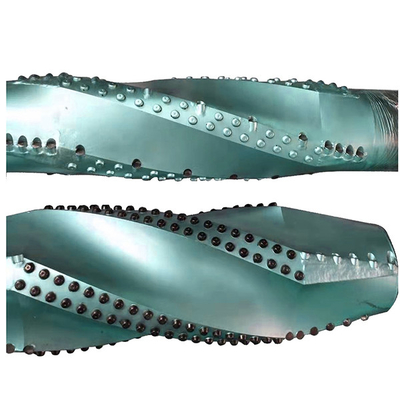

12-1/4" PDC Reamer Bit Diamond Reamer Bits Rock Drilling Tool
Production Name :
PDC Drilling Tool ,Diamond Drilling Tool ,Oil Drilling Tool ,underground Drilling Tool , oil Well finisehd drilling Tool .
PDC Reamer , Fixed Cutting Drilling Tool , PDC Hole Opener ,Diamond Rotary Drilling Tool .
Description :
PDC Driling Reamer of oilfield is a high performance Drilling Tool which can not only improved borehole quality but also increased worke performance and saving the time and money . The variety of tools available assures excellent performance in every application with operating flexibility ranging from demountable cutters to cutters that include tungsten carbide inserts, and polycrystalline diamond compact (PDC) cutters with double cutter row .
Specification:
| Dimensions | ||
| inch | mm | |
| Adapted Well | 12-1/4" | 311.15 |
| Nominal Diamter(D) | 12-1/8" | 307.98 |
| Tool Length (TL) | 86.61 | 2200 |
| Finishing Neck Length(FL) | 22.69 | 576.2 |
| Gauge Pad Length(GL) | 21.65 | 550 |
| Lower Neck Length( LL) | 24.65 | 626.2 |
| Bore Diameter (BD) | 7.99 | 203 |
| Aprox. Weigth | 1345lbs | 610kg |
| Blades | 4 Right-hand Blades | |
| Feature | ||
| Connection Type | 6-5/8 Reg Box & Pin | |
| Steel | 4145H | |
| Cutting Elements | ≥60 | |
| Cutting Direction | Bi-Diretional | |
| Cutter of A Point | ≥5 | |
| Coverage | Full Spiral | |
| Helical Direction | Right Hand | |
| Operation Reamer | ||
| Max. WOB | 50T | 110231lb |
| Max. Pull up force | 200T | 440925lb |
| Make up Torque | 53.0 kftlb | 71.8kn.m |
Advantage :
1. Help you improve the poor hole Quality .
2. PDC cutters on leading edges of blades.
3. Reduce torque and drag in highly irregular holes
4.Improve hole gauge and shape by removing
Test of Oil Drilling Tool :
All The drill bit will be test as below :
---Mechanical Testing Instruments
---Hard Test
---UT Test
---Other Test according to requirement
