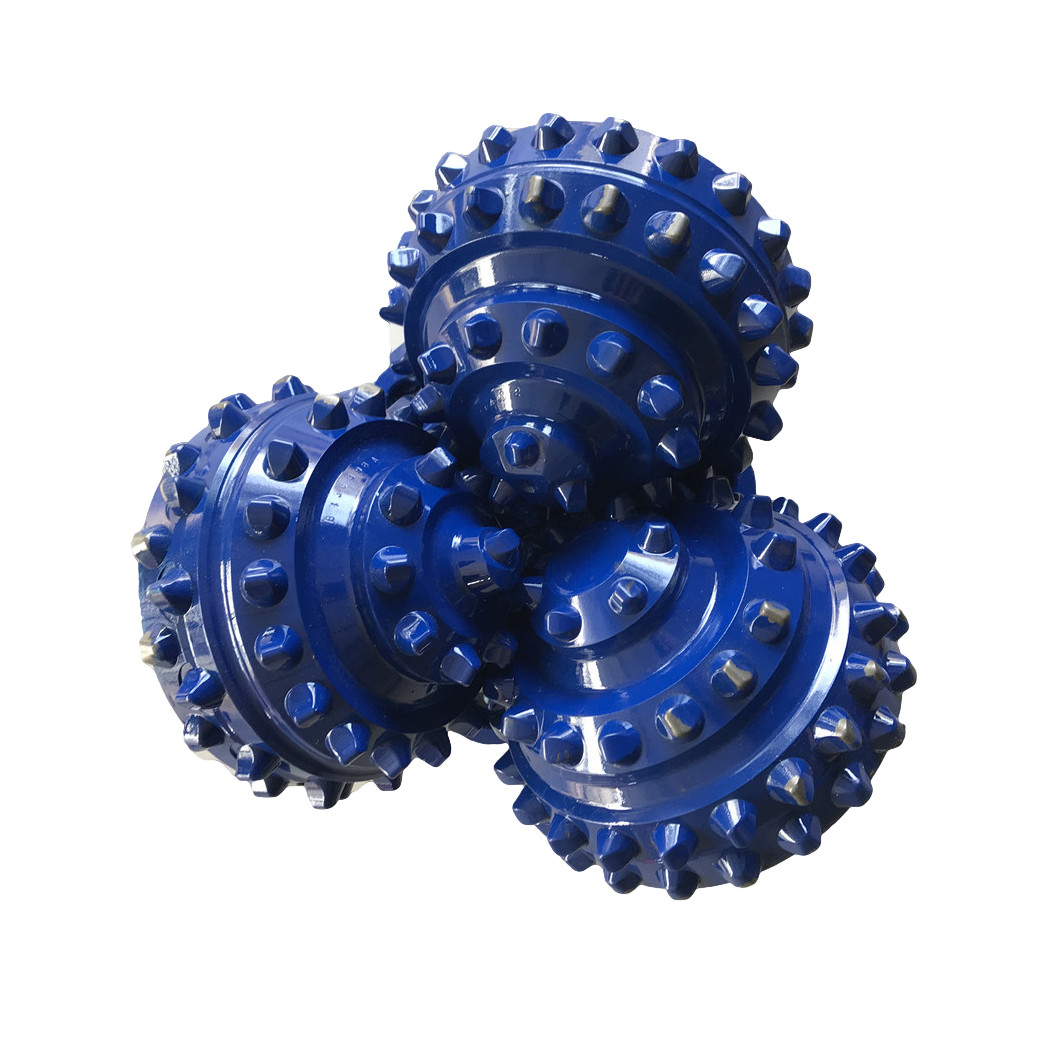

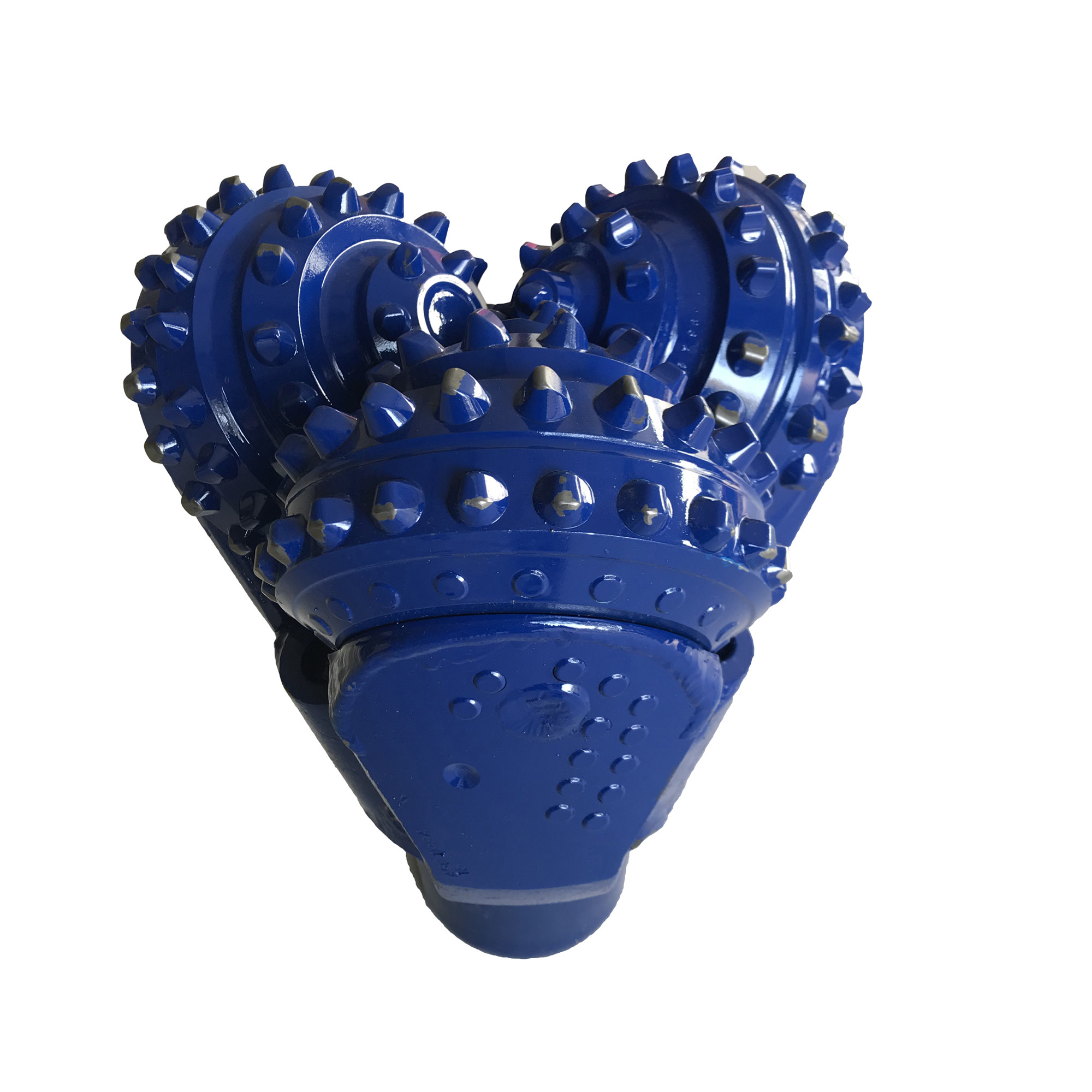

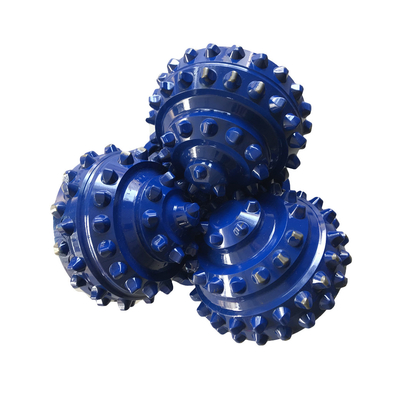

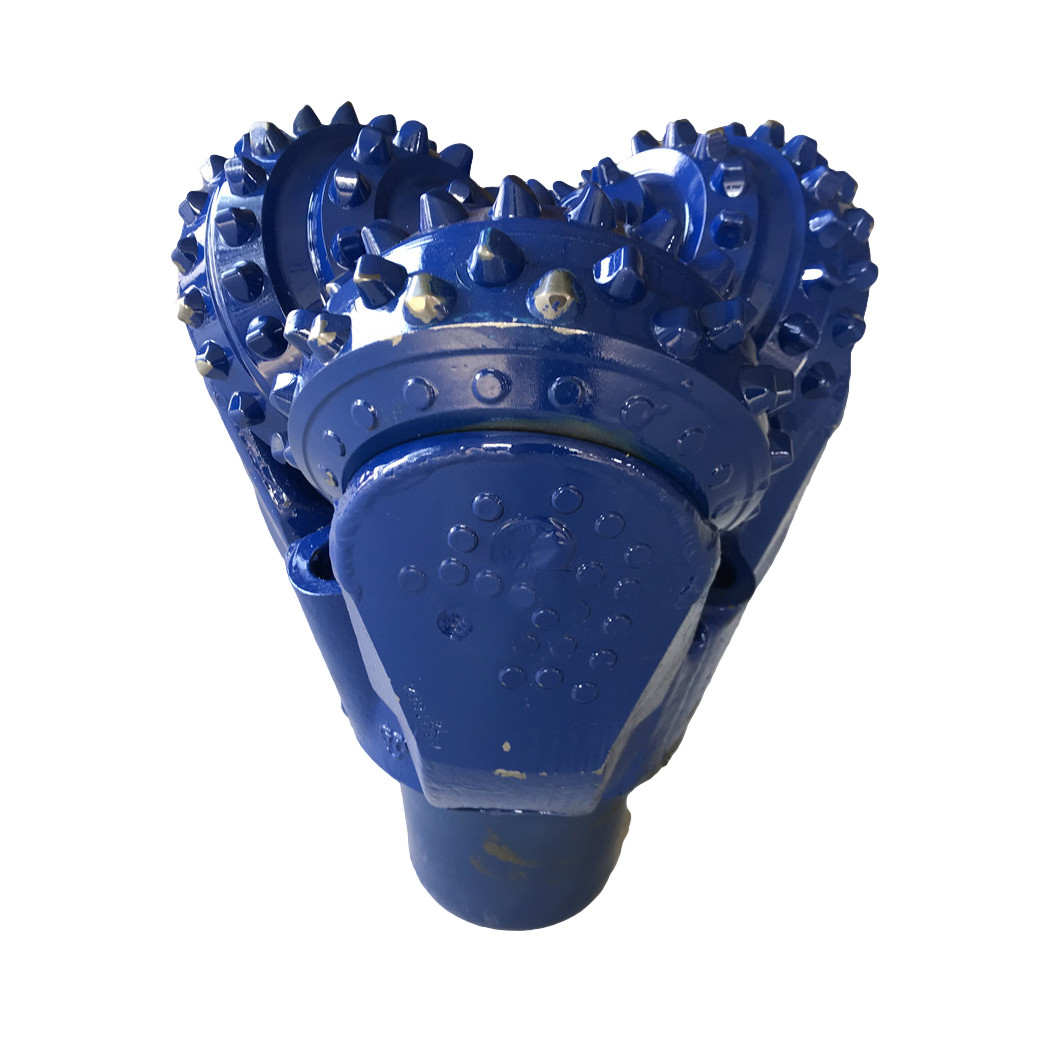

Tricone Drill Bit 8-1/2 Inch TCI Drilling Tool IADC 537
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Tricone Drill Bit | Machine Type | Drilling Tool |
|---|---|---|---|
| Use | Oil ,gas ,minig ,drilling ,water | Processing Type | Forging ,Casting |
| Material | Diamond ,Alloy Steel ,Tungston Carbide | Color | Customer Requirement |
| Size | 8-1/2"(215mm) | Application | Rock Drill Of Oil ,mining ,gas .water |
| Iadc Code | 537 | Usage | Oil ,mining ,gas ,water |
| Packing | Wooden Box Or Steel Box | Bearing | Friction Bearing |
| Connection | API Connection 4-1/2 | Seal Type | Rubber |
| Advantage | High-efficiency , High Strength | Weight | 45kgs |
| Highlight | Tricone Roller Drill Bit IADC 537,tricone roller bit IADC 537,8.5" TCI Tricone Roller Drill Bit |
||
Product Description
Tricone Drill Bit 8-1/2 Inch TCI Drilling Tool IADC 537
Description :
- Roller cone bits have rollers rotating around bearings. Roller cone bits use steel teeth or tungsten carbide inserts as cutting elements.
- A roller cone bit removes rock by crushing, gouging and scraping.
- Roller cone bits are made up of three legs welded together.
- Each leg holds a rolling cone fitted with teeth or inserts. Teeth are milled directly in the cone where tungsten carbide inserts are pushed in holes that are drilled in the cone.
- Roller cones that have teeth milled into them are called tooth bits. These steel teeth are brazed over with a protective hard facing which substantially increases the life of the bit. Steel tooth bits are mainly used for fast soft rock applications like surface bits or shallow wells. When the cutters are made from tungsten carbide inserts, the bit is called a TCI (tungsten carbide insert) bit. TCI bits are more durable but are not as aggressive as a steel tooth bit. TCIs are used in harder more abrasive applications.
Specification :
Tricone Bit Size : 8-1/2”
IADC : 537
Make Up Torque(KN.M): 24.1-26.5
API Connect : 4-1/2” REG
Weight on Bit (KN): 108-227
APPLICATION
Petroleum & gas, water well, mining and tectonic industries, oil field, construction,
geothermal, directional boring, and underground foundation work.
RE: Medium hard formation /high compressive strength
|
SPECIFICATION |
APPLICATION |
|
|
Tricone Bit Size : |
8-1/2" |
Petroleum & gas, water well, mining and tectonic industries, oil field, construction, geothermal, directional boring, and underground foundation work |
|
IADC : |
537 |
|
|
Make Up Torque (KN) : |
24.1-26.5 |
|
|
Weight on Bit (KN) : |
108-227 |
Middle Hard formation/High compressive strength |
|
API Connection : |
4-1/2" REG |
|
Tricone Bit Cutting Structure
Unique steel tooth structure effectively improving the wearing resistance of the
teeth and greatly increasing the rate of penetration.
Tricone Bit Gauge Structure
Enhanced gauge protection with hard facing on the shirttail, strength enabled
with special insert tungsten carbide.
Tricone Bit Bearing Structure
High precision journal bearing, hard-faced bearing surface. Cone bearing inlaid
with friction-reducing alloy and then silver-plated, made the rotating more
stable, safe, and durable.
Tricone Bit Seal and Lubrication
The patented unique metal seal can enhance the seal performance, it has longer
durability than the rubber seal. The compensation bearing grease system greatly
increases the lubricating reliability and improve the bearing life effectively.
Application:
Soft formations with low compressive strength,such as shale/clay/ sand stone/
soft limestone/ halite/anhydrite.etc.
We supply different sizes of this type of bit as clients’requirement.
