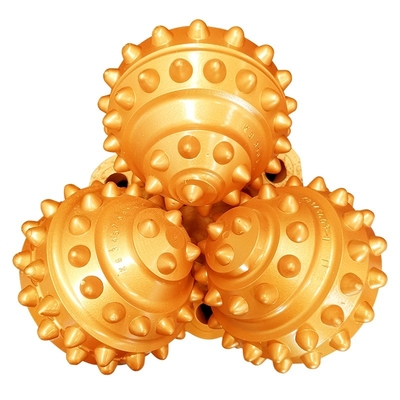

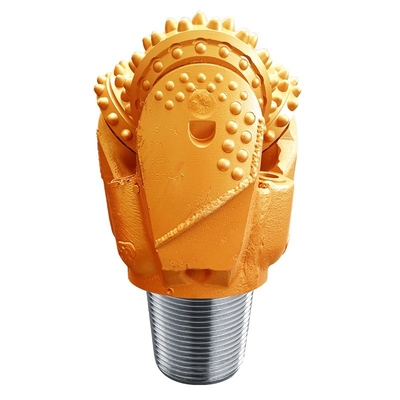

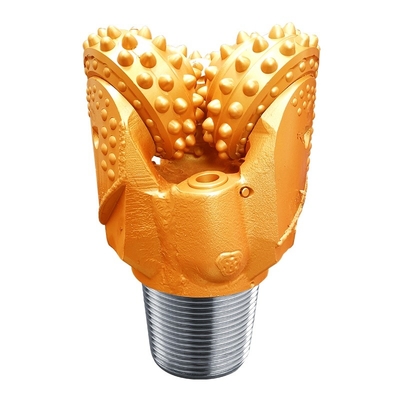

IADC 635 Tungsten Insert Roller Cone Tricone Button Drill Bits For Water Well Mining drilling

TCI Tooth Roller Tricone Button Bit Rock Drill Tricone Bit

IADC roller-cone bit classification method

The IADC Roller-Cone Bit Classification Method is an industry-wide standard for the description of milled-tooth and insert-type roller-cone bits.

This coding system is based on key design- and application-related criteria.

The currently used version was introduced in 1992 and incorporates criteria cooperatively developed by drill bit manufacturers under the auspices of the Society of Petroleum Engineers.

The IADC classification system is a four-character design- and application-related code.

The first three characters are always numeric;

the last character is always alphabetic.

The first digit refers to bit series, the second to bit type, the third to bearings and gauge arrangement, and the fourth (alphabetic) character to bit features.

         CUTTING STRUCTURE

• Conical on gage, double spherical on inner rows.
  Designed for high compressive strength, medium hard and abrasive formations, such as limestone, sandstone, interbedded dolomite.
  Compressive strength: 29,000-38,000 psi/200-262 MPa

         SHIRTTAIL PROTECTION

• Hard welding and wear resistant carbide protection on shirttail lip and lug
