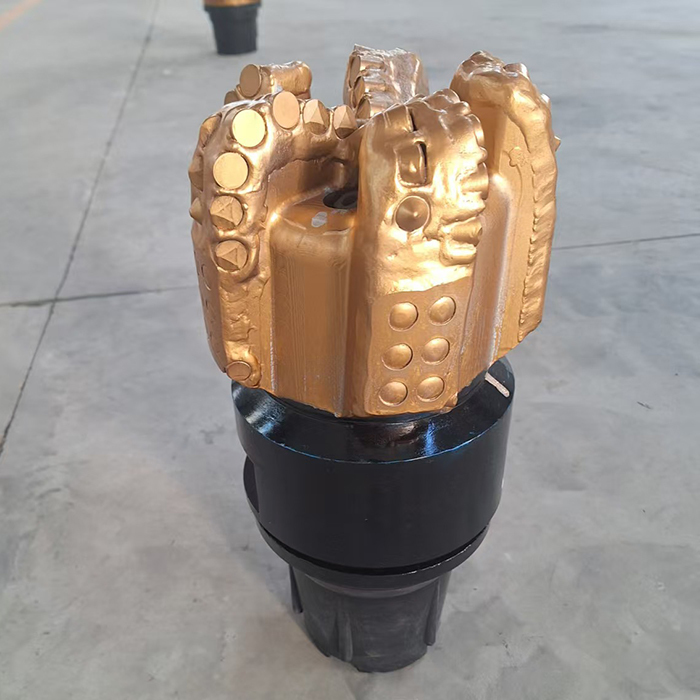

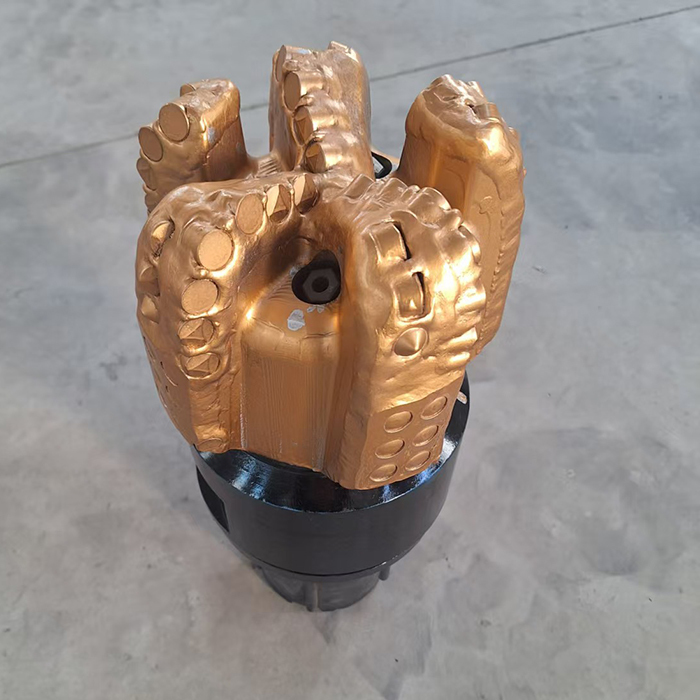

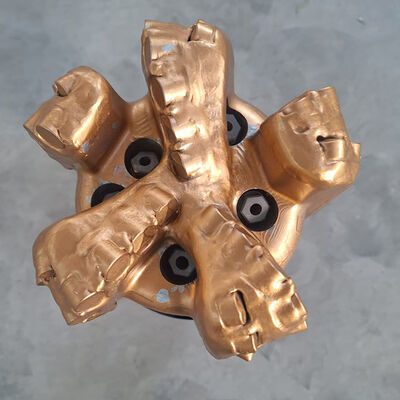

8-1/4" PDC Drill Bit Higher Performance Diamond Drilling Tool
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Diamond Drill Bit | Use | Oil ,gas ,mine ,water Drilling Well |
|---|---|---|---|
| Material | Diamond ,Alloy Steel , | Machine Type | Drilling Industry |
| Processing Type | Forging ,Casting | Application | Rock Drill Of Oil ,mining ,gas |
| Size | 17. 50"(444.50mm) | Color | Customer Requirement |
| Cutters | Polycrystalline Diamond Compact (PDC) | Surface Treatment | PDC Insert |
| Highlight | 8-1/4 inch PDC drill bit,steel body diamond drill bit,high performance PDC drilling tool |
||
Product Description
Diamond 12-1/4 " PDC Drill Bit of Down Hole Diamond Drilling Tool
1 . Descriptions:
A PDC (Polycrystalline Diamond Compact) bit is a fixed-cutter drilling tool featuring synthetic diamond cutters, designed for rock drilling in oil, gas, water, or mining wells. Manufactured to API specifications, this tool is API-certified, ensuring compliance with industry standards.
Material Advantages
The PDC cutters are composed of synthetic diamond, the hardest known material, which provides exceptional wear resistance and durability. Compared to tricone bits, PDC bits typically offer higher drilling efficiency but at a premium cost.
Design and Functionality
PDC bits utilize multiple diamond cutters arranged in optimized patterns to shear through rock formations. They are primarily categorized into two types:
- Matrix Body PDC Bits: Ideal for abrasive formations due to their wear-resistant matrix material.
- Steel Body PDC Bits: Suited for softer formations, offering cost-effective performance.
2. PDC Drill Bit Specification:
| SPECIFICATION | |
| Size : | 8-1/4 "(206.38mm) |
| Drill Body Type : | Steel Body |
| Blades Quantity : | 5 |
| Nozzles Quantity : | 5 |
| API Connection (in) : | 4-1/2" REG |
| Gauge Length (In): | 2.5 |
| OPERATIONAL PARAMETERS | |
| Weight on Bit (KN): | 22-112 KN |
| RPM Range(Rotary): | 100 - DHM |
| Flow Rate(lps): | 29-38 LPM |
| Make-Up Torque(KN): | 16-22 KN.M |
3 . PDC Bit profile
4 . Drill Bit PDC Cutters
Polycrystalline Diamond Composite (PDC) cutters are the main point of contact for a drill bit. PDC bits remove the rock mainly by shearing.
The PDC cutters are exposed to a lot of heating and cooling down the well, a very challenging environment.
PDC cutters that have lower thermal degradation and more thermal stability generally achieve higher ROP and increased wear resistance. So, optimizing the cutter is important.

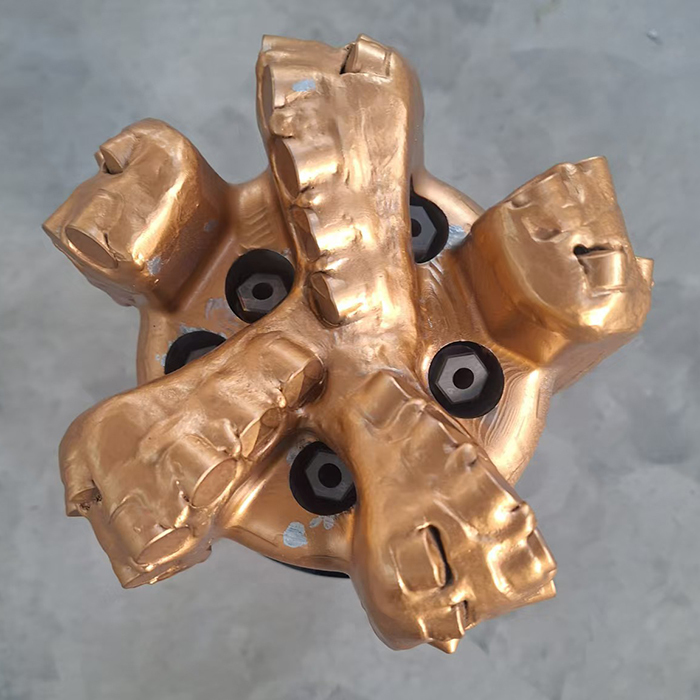

5. Drill Bit Nozzles
Drill bit nozzles help clear the cutting area and cool the Polycrystalline Diamond Composite (PDC) cutters.
Effective placement of these nozzles along with the angle they are set at plays a critical role on how efficient the drill bit performs.
Fluid channels also complement nozzle placement to improve the clearing of cuttings.
6. Steel Body PDC Bits
Steel body is the opposite of matrix body. It can of withstanding high impact loads, but is softer and lacks protective features. The strength and ductility of steel give steel-bit bodies high impact resistance.
Steel bodies are considerably stronger than matrix bodies.
A beneficial feature of steel bits is that they can easily be rebuilt a number of times because worn or damaged cutters can be replaced rather easily. This is a particular advantage for operators in low-cost drilling environments.
Polycrystalline diamond compact (PDC) drill bits are different than roller cones in that they are one piece bodies with no moving parts. The fixed-cutters shred the rock, so the bit is able to operate with higher rotation speeds more efficiently in consolidated formations.
