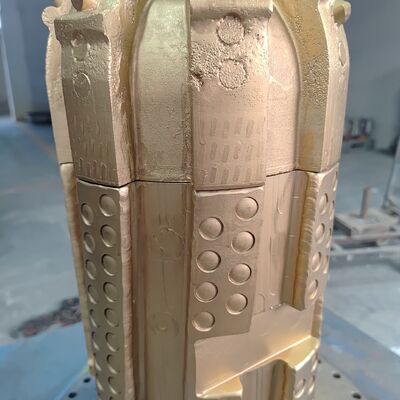

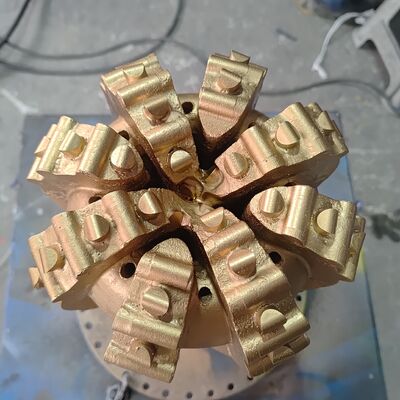

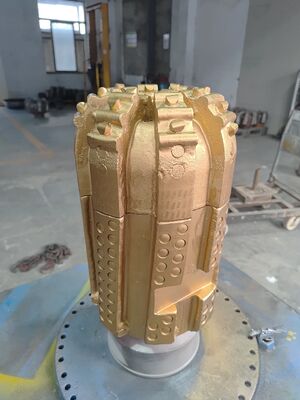

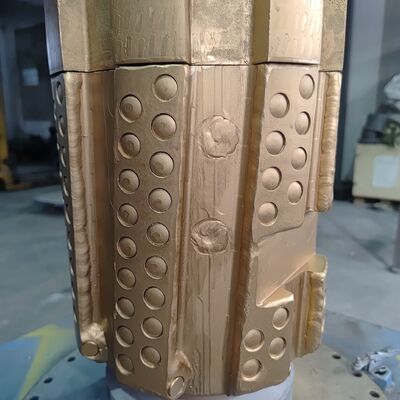

Customized Blade-type Impregnated Diamond Drill Bit for Extreme Hard Abrasive Rock
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Highlight | customized blade-type diamond drill bit,impregnated PDC drill bit for hard rock,matrix body diamond bit abrasive rock |
||
|---|---|---|---|
Product Description
Description:
Due to the unique mechanical cutting principle of impregnated diamond drill bits, even in the most abrasive formations and under high speed, impregnated diamond drill bits can achieve longer penetration and higher drilling speed.
We can provide standard sizes of impregnated drill bits from 5-7/8 inch to 12-1/4 inch.
1, Diamond-impregnated drill bits enhance the durability, performance, and drilling depth.
2, A more aggressive design enables higher torque output, resulting in increased drilling speed.
3, Application-specific diamond grits and matrix body provide optimal performance by matching technology to application.
4, Optimized profiles can balance workload better and extend drill bit life.
Applications:
1, Extremely hard and abrasive interlayers.
2, Hard interbedded with soft shales and siltstones.
3, Enhanced coring operations.
| Model No.: | EY808 |
| Body Type: | matrix body |
| Available Diameter: | 5-7/8-12-1/4 inch |
| Thread Connection: | API Reg. Pin |
| Body Painting Color: | yellow or customized |
| Bit Condition: | new manufacture |
| Machinery Test: | as requirements |
| Minimum Order Quantity: | 1pc |
| Unit Price: | negotiation |
| Payment Terms: | T/T, LC or negotiation |
| Supply Ability: | 5,000pcs per year |
| Lead Time: | negotiation |
| Packaging Details: | wooden case or customized |
| Specifications | |||
| Bit Size (in) | 5-7/8 | 6 | 8-1/2 |
| TFA (in²) | 0.3-0.8 | 0.3-0.8 | 0.6-1.5 |
| Gauge (in) | 2-1/2~3-1/2 | 2-1/2~3-1/2 | 2~3 |
| API Connection (in) | 3-1/2 | 3-1/2 | 4-1/2 |
| Operating Parameters | |||
| Flow Rate (l/s) | 12-19 | 12-19 | 15-35 |
| Rotary Speed (rpm) | 60-1000 | 60-1000 | 60-1000 |
| Weight On Bit (kn) | 45-90 | 45-90 | 75-130 |
| above for reference, other sizes can be customzied | |||
Package & Shipment:
FAQ:
| Q: You are a trading company or manufacturer ? |
| A: Manufacturer, We are a 100% real factory with over 10 years' experience in Drill Bits. |
| Q: How about your products ? |
| A: All bits strictly conform to API 7 requirements and ISO9001. we will do kinds inspections before delivery, also cover for after-sales service. |
| Q: Package Methods ? |
| A: Normally wooden case, also can be steel box; can be customized if need. |
| Q: Payment Terms ? |
| A: we accept T/T, L/C, Paypal, Western Union, etc. |
| Q: Can I visit your factory ? |
| A: Yes, we welcome you to our factory all the time, will send invitation letters if need; also can show our workshop and warehouse online. |
