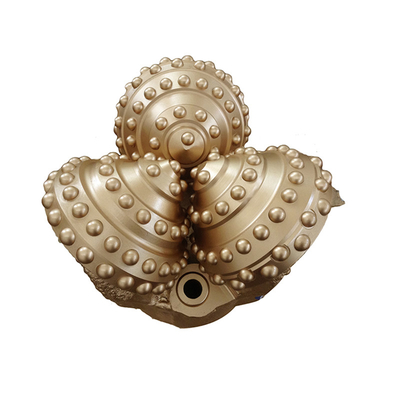

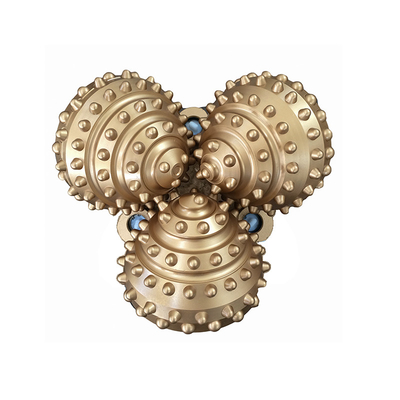

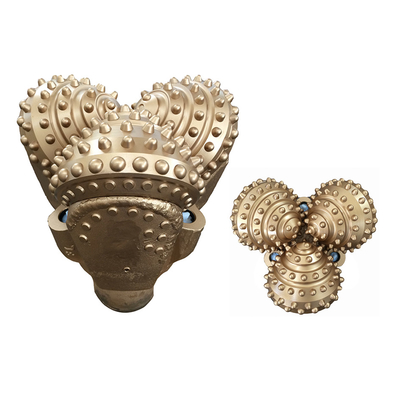

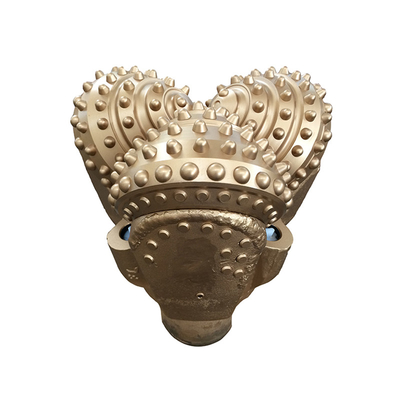

Tricone Drill Bit 14-3/4" IADC 645 Roller Cone Bit Of Water Mining Drilling Tools
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Diameter | 14-3/4 Inch | Connection Type | API Reg |
|---|---|---|---|
| Machines | Drilling Rig Machines | Drill | Well Drilling |
| Bit Type | TCI Tricone Bit | Iadc Code | 645 |
| Highlight | 14-3/4” Tricone Drill Bit,Roller Cone Tricone Drill Bit,Water Mining Tricone Drill Bit |
||
Product Description
Roller Cone Bit Of Water Mining Drilling Tools
Tungsten Carbide Insert (TCI) bits serve as indispensable tools for drilling operations in middle to hard rock formations, presenting a versatile range of carbide inserts meticulously designed to address the varying hardness levels of rock encountered during drilling endeavors. These inserts come in diverse shapes, including spherically shaped inserts tailored for exceptionally hard rock formations and conically shaped inserts optimized for softer rock materials.
The selection of carbide inserts plays a pivotal role in determining the efficiency and effectiveness of the drilling process, as different rock formations demand specific insert configurations to achieve optimal results. The number of rows of inserts featured on TCI bits is directly correlated with the nature of the application and the desired hole size, allowing for customizable configurations that cater to specific drilling requirements.
| Product | Tricone Drill Bit |
| Model | Steel Tooth Bit (Milled Tooth Bit),TCI Bit |
| IADC CODE (Milled Tooth) | 116 117 126 127 136 137 216 217 226 316 317 326 327 336 337 115 125 135 215 225 235 315 325 335 114 124 214 314 111 121 131 346 347 |
| IADC CODE (TCI Tooth) | 417 427 437 517 527 537 617 627 637 737 837 832 415 425 435 445 525 625 635 416 427 436 446 447 516 526 537 547 516 536 535 |
| Available sizes | From 3 5/8" to 26" |
| Used as hole opener bit , reamer bit | |
| Advantage | Most favorable price and best quality |
| Bearing type | Sealed bearing Bit and Non-sealed bearing Bit |
| Metal sealed Journal bearing and Sealed Rolling Bearing | |
| Rubber sealed journal bearing and sealed Rolling Bearing | |
| aircooled bearing type | |
| Formation or layer | soft,medium soft ,hard, medium hard, very hard formation |
| Tricone Bit Additional Features : | Button bit,saw teeth |
| 1) Y-Conical teeth 2) X-chisel teeth | |
| 3)K- wide teeth 4)G- Gague protection | |
| 5)C- Center Jet 6) L- Lug Pads | |
| 7)W- Enhanced Cutting Structure 8) R-Reinfource Welds | |
| 9)M- Motor Application 10)E-Extend Jet | |
| Application Area | Petroleum & gas Well ,water well ,mining and tectonic industries ,oil field, construction, geothermal, directional boring, and underground foundation work |
TCI Tricone Bits
Tungsten carbide inserts, excel in drilling operations in middle to hard rock formations. These bits offer a variety of carbide inserts, including spherically shaped inserts for very hard rock and conically shaped inserts for softer rock, catering to the diverse hardness levels encountered during drilling endeavors.
The number of insert rows directly correlates with the application type and hole size, ensuring customizable configurations for optimal drilling performance. Operators can choose between open and sealed bearings, along with three shirttail protection options, enhancing durability and performance in challenging drilling conditions.
Bearing Types
There are primarily three types of Open and seal bearing designs used in tricone drilling bits:
• STANDARD OPEN BEARING ROLLER BIT:
On these bits the cones will spin freely. This type of bit has a front row of ball bearings and a back row of roller bearings.
• SEALED BEARING ROLLERS BITS
These bits have an O-Ring seal with a grease reservoir for bearing cooling. The seals acts as a barrier against mud and cuttings to protect the bearings
• JOURNAL BEARING ROLLER BITS
These bits are strictly oil/grease cooled with nose bearings, O-Ring seal and a race for maximum performance.
