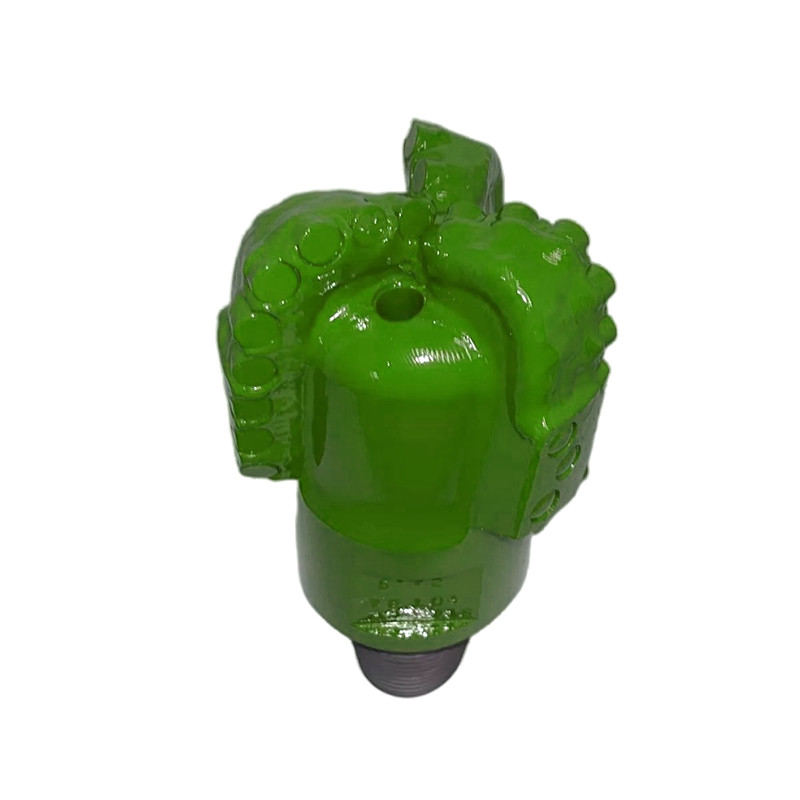

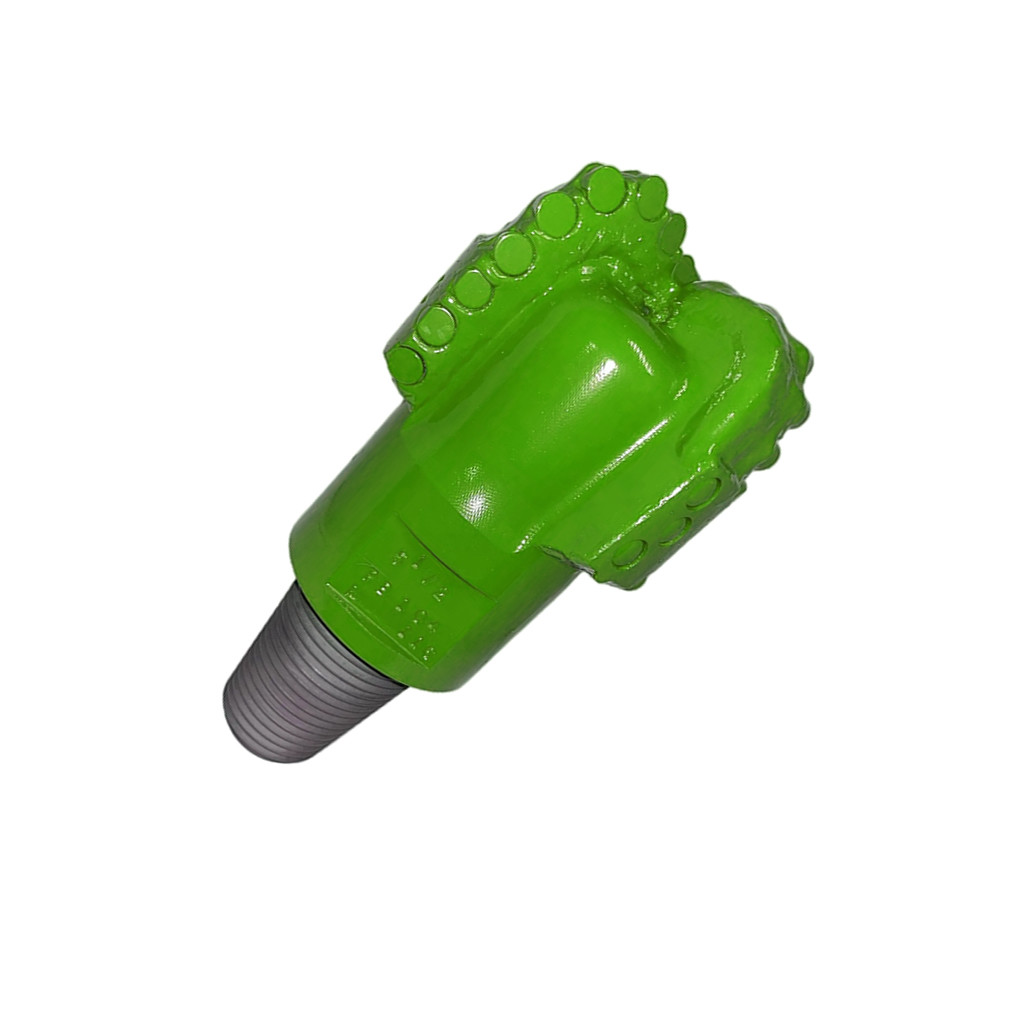

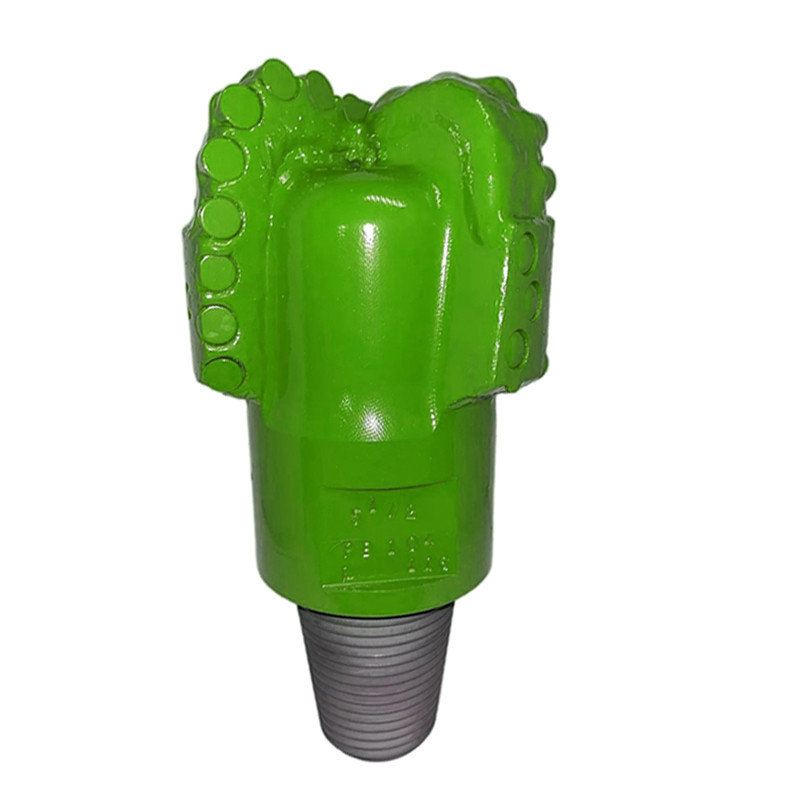

Diamond Drilling Bit 5-1/2 " PDC Drill Bit Of Mining Water Oil Well Drilling Tool
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Application | Oil Well ,Mining Well ,Water Well ,Geographical Exploration | Processing Type | Forging,Casting |
|---|---|---|---|
| Primary Cutter Sise | 16mm | Connection Type | API 3-1/2 |
| API Certification | 7-1548-1 | Surface Treatment | PDC Insert |
| Machine Type | Drilling Industry | Size | Various Sizes Available |
| Warranty | 1 Year | Packing | Steel Box |
| Advantages | Faster Drilling, Improved ROP, Reduced Drilling Costs | Number Of Blades | 3 |
| Cutter Diameter | 16mm | Nozzle Qunatity | 3 |
| Usage | Water Well Drilling,geotechical Drilling | Use | Coal Mining / Pcd Impregnated Diamond Exploration PDC Bits |
| Blades | 3 | ||
| Highlight | Mining Water Oil Well Drilling Tool,Diamond Drilling Bit,5-1/2 ” PDC Drill Bit |
||
Product Description
Diamond Drilling Bit 5-1/2 " PDC Drill Bit Of Mining Water Oil Well Drilling Tool
1 . Descriptions:
What is PDC in Drilling Tools?
PDC stands for Polycrystalline Diamond Compact, a cutting material used in drill bits for oil and gas drilling. PDC bits are made with synthetic diamond cutters, known for their extreme hardness and wear resistance. These bits have revolutionized the drilling industry by increasing drilling efficiency, longevity, and cost-effectiveness.
Advantages of PDC Drill Bits
High Durability: PDC cutters are extremely hard, providing long-lasting performance.
Fast Penetration Rate: The sharp cutting edges allow for efficient drilling.
Cost-Effective: Longer lifespan reduces the need for frequent bit replacement.
Versatile Application: Suitable for soft to medium-hard rock formations
2. PDC Bit Specification:
Polycrystalline diamond compacts PDC bit in the Oil and Gas Industry PDC bits get their name from the polycrystalline diamond compacts used for their cutting structure. A PDC bit is a drill bit fitted with industrial diamond cutters instead of hardened metal teeth.
|
SPECIFICATION
|
|
| Size : | 5-1/2 " inch (139.7mm) |
| Drill Body Type : | Steel Body |
| Blades Quantity : | 3 |
| Nozzles Quantity : | 3 |
| API Connection (in) : | 2-7/8" REG |
| Gauge Length (In): | 1.5 |
|
OPERATIONAL PARAMETERS
|
|
| Weight on Bit (KN): | 9 -67 |
| RPM Range(Rotary): | 80- DHM |
| Flow Rate(lps): | 29- 38 LPM |
| Make-Up Torque(KN): | 9.5 -12.2 KN.M |

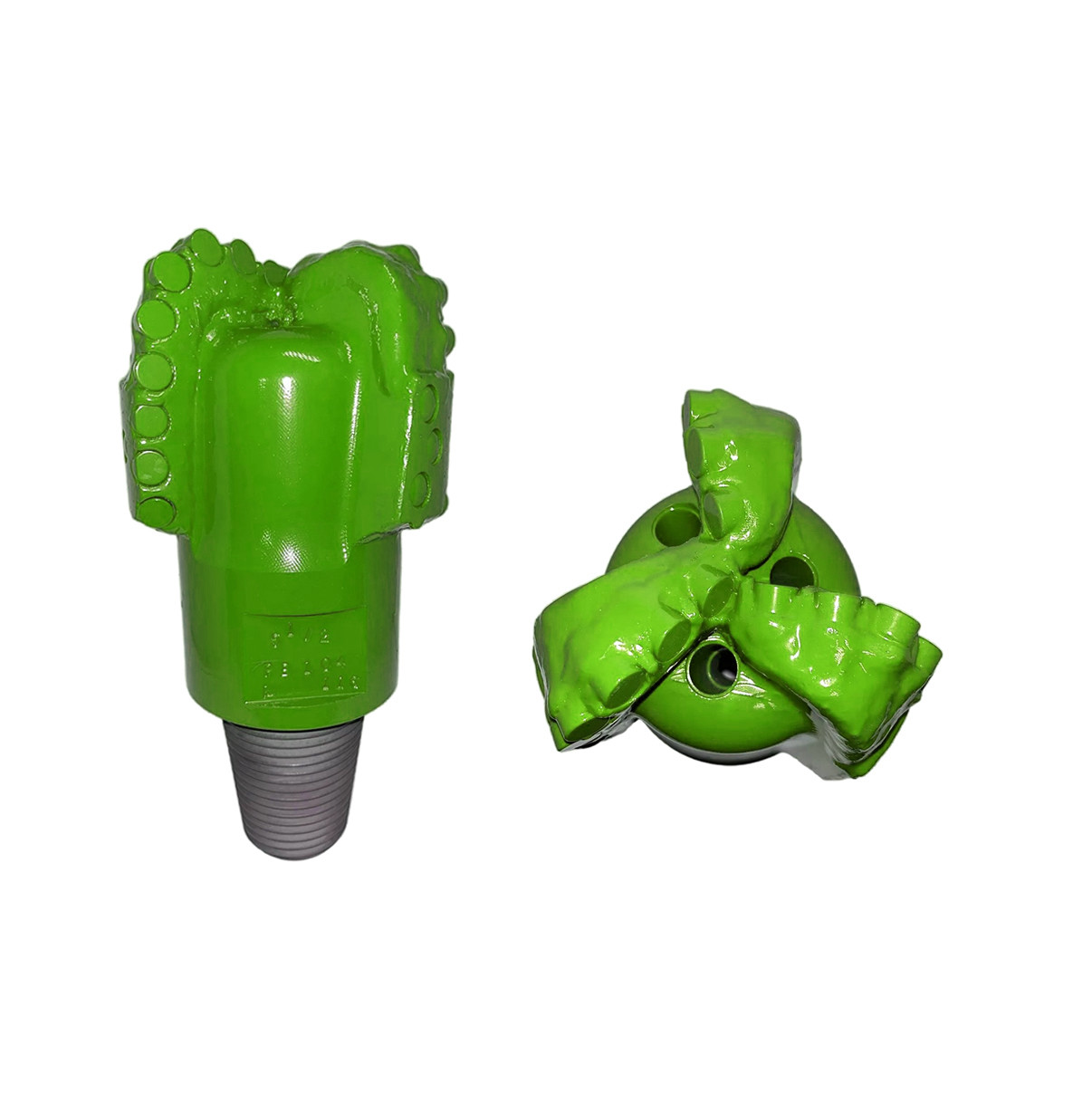

3 . PDC Drill Bit profile
4 . Drill Bit PDC Cutters
Polycrystalline Diamond Composite (PDC) cutters are the main point of contact for a drill bit. PDC bits remove the rock mainly by shearing.
The PDC cutters are exposed to a lot of heating and cooling down the well, a very challenging environment.
PDC cutters that have lower thermal degradation and more thermal stability generally achieve higher ROP and increased wear resistance. So, optimizing the cutter is important.

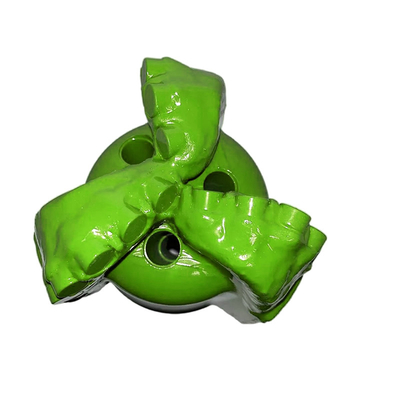

5. PDC Drill Bit Nozzles
PDC Drill bit nozzles help clear the cutting area and cool the Polycrystalline Diamond Composite (PDC) cutters.
Effective placement of these nozzles along with the angle they are set at plays a critical role on how efficient the drill bit performs.
Fluid channels also complement nozzle placement to improve the clearing of cuttings.
6. Steel Body PDC Bits
Steel body of PDC Bit is the opposite of matrix body. It can of withstanding high impact loads, but is softer and lacks protective features. The strength and ductility of steel give steel-bit bodies high impact resistance.
Steel bodies are considerably stronger than matrix bodies.
A beneficial feature of steel bits is that they can easily be rebuilt a number of times because worn or damaged cutters can be replaced rather easily. This is a particular advantage for operators in low-cost drilling environments.
Polycrystalline diamond compact (PDC) drill bits are different than roller cones in that they are one piece bodies with no moving parts. The fixed-cutters shred the rock, so the bit is able to operate with higher rotation speeds more efficiently in consolidated formations.
