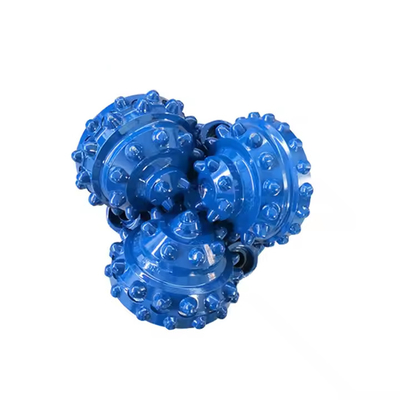

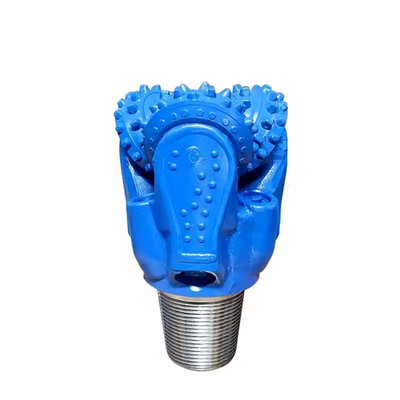

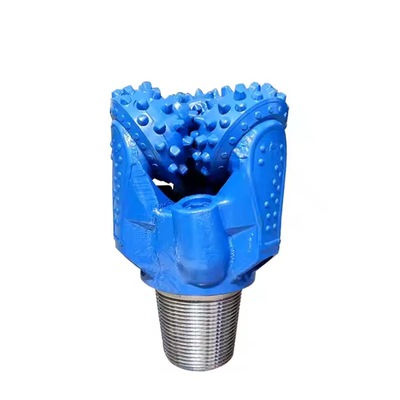

Rock Drilling Tool 8-1/2" Tricone Drill Bit Of oil Mine Water Drilling Well Bit
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Cutter Type | Round Or Domecional | Cutter | Tungsten Carbide |
|---|---|---|---|
| Blade Profile | Flat, Semi-Convex, Convex | Well | Oil, Mining ,water |
| Processing Type | Forging,Casting,sintering Item | Market | All Over The Word |
| Material | Diamond, Alloy Steel | Warranty | 1 Year |
| Machine Type | Dimond Drilling Tool | Hydraulic Design | Optimized For Maximum ROP And Durability |
| API Connection | 4-1/2" | ||
| Highlight | Oil Mine Tricone Drill Bit,Rock Drilling Tool Tricone Drill Bit,8-1/2” Tricone Drill Bit |
||
Product Description
Rock Drilling Tool 8-1/2" Tricone Drill Bit Of oil Mine Water Drilling Well Bit
1 . Descriptions:
Tungsten Carbide Insert (TCI) bits are are used middle to hard rock formation which offers a variety of carbide inserts such as spherically shaped inserts for very hard rock or conically shaped inserts for softer rock. The number of rows of inserts is directly related to the type of application and the size of hole to be drilled. here are also open and sealed bearings available as well as three types of shirttail protection to choose from. TCI stands for Tungsten Carbide Insert.
2. Tricone Specification:
| Roller Cone SPECIFICATIONS | |
| Diameter: | 8.5 ”(215.9mm) |
| Body Type : | Steel Body |
| Tooth Type: | TCI Tooth |
| Bearing : | Sealed Rearing |
| API Thread API Connection: | 4-1/2 API REG |
| IACD CODE : | 437 |
| OPERATION PARAMETERS | |
| Weight (Kg): | 42 KGS |
| RPM Range (rotary): | 90-40 |
| Weight on Bit(kN): | 151-259 kN |
| Make Up Torque ( KN): | 16 - 22 KN |
3 . Roller Cone Bit Profile
The Tricone Bit is composed by Tricone bits consist of three rotating cones that have teeth made of a hard material, usually steel, tungsten carbide, or diamond.
These teeth crush the rock as the cones rotate, and the rock debris is then cleared away by the drilling fluid
4. What we should be pay attention on choosing the tricone drill bit ?
- IADC code passport
- TCI & Steel tooth options
- Additional tungsten carbide inserts on heel rows
- Tungsten carbide coating on cone bodies
- Diamond coated tungsten carbide inserts on the gauge of the cones
- Tungsten carbide inserts on the shirttail of the legs
- Additional central nozzle for cleaning cones
The tricone feature is that they come with their own passport as below :
- The specification of the cones
- The quality stamp signed by the person who made and checked the bit
- The recommended drilling parameters to get the best performance out of the bit:
- Bit weight
- Rotation speed
- Flushing volume
Which type of tricone you should choose ?
It depends on the geology you are drilling in and the diameters of the borehole you are drilling. The International Association of Drilling Contractors (IADC) have developed an easy use step system to choose the right tricone for your geology with additional features such as bit protection for longer production life.
5. Roller Cone Application Area
