5 1/2 Inch TCI Rock Tricone Bit For Mining Well Drilling

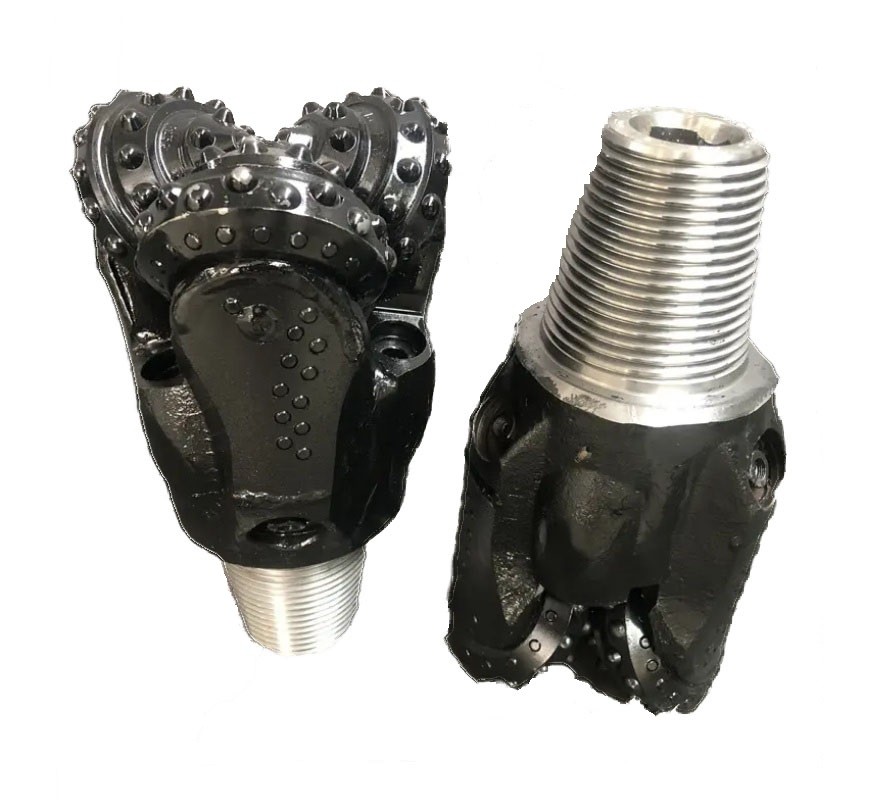

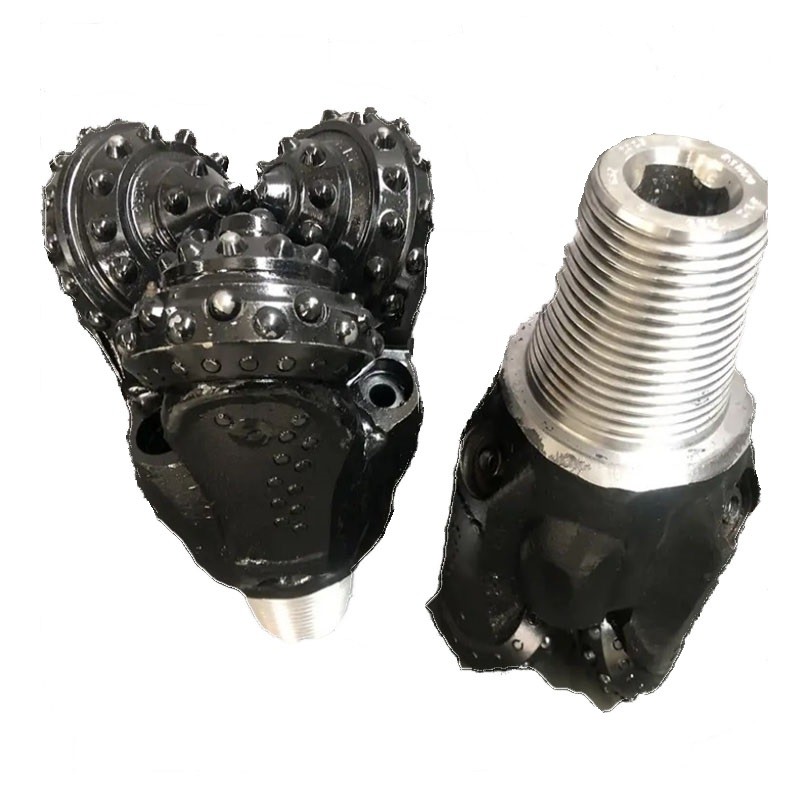

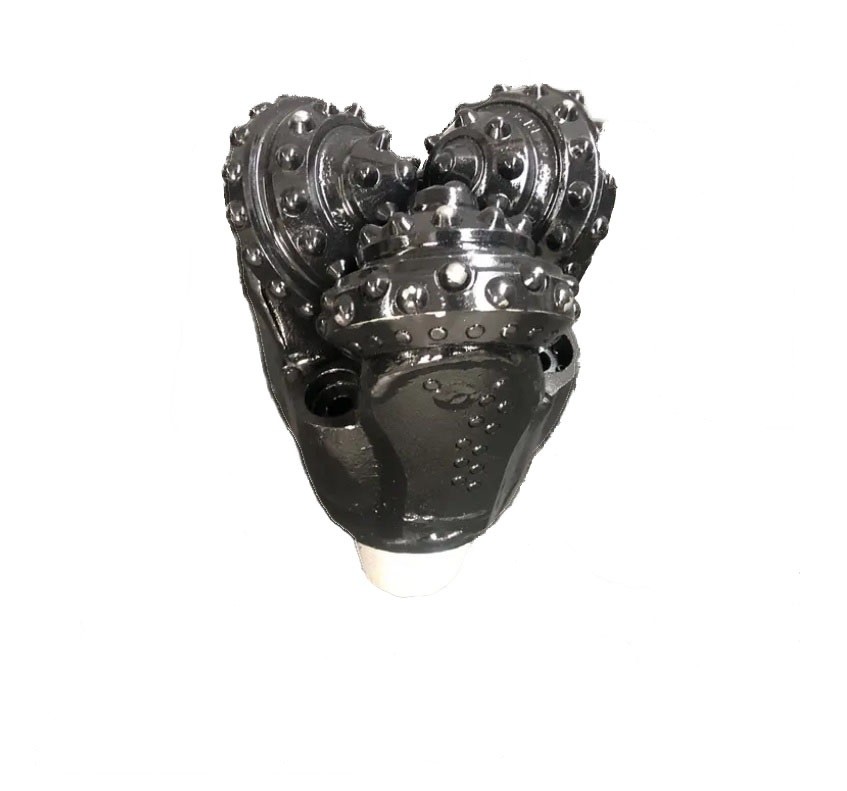

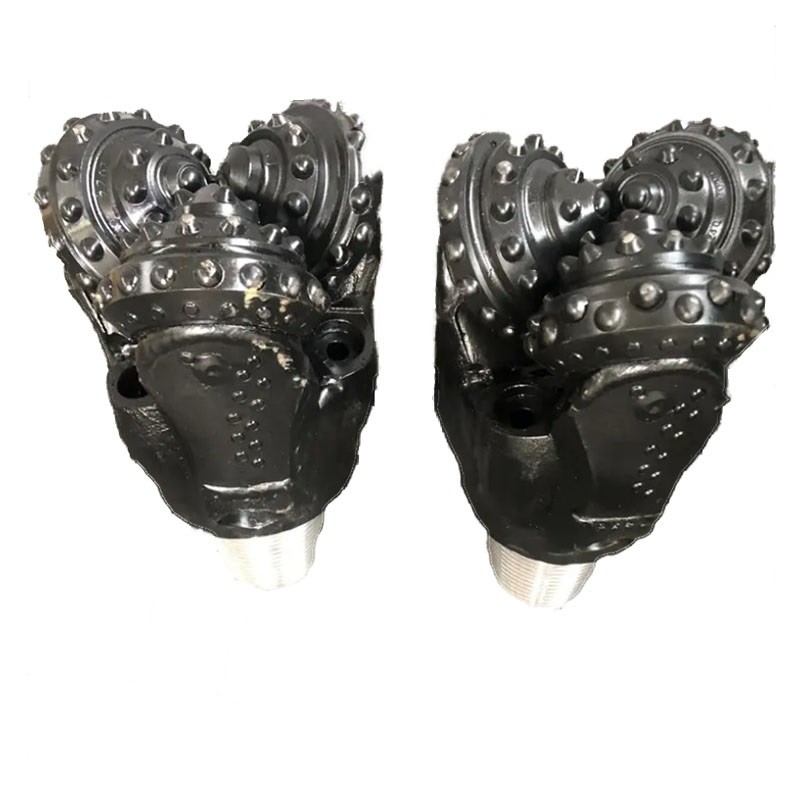

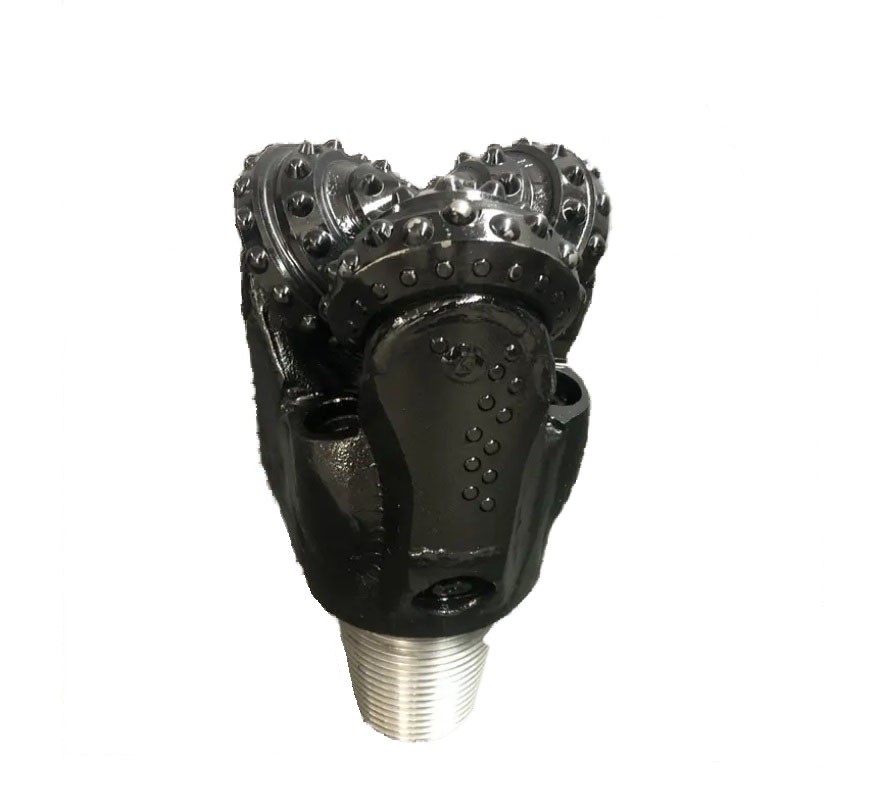

5 1/2 Inch TCI Rock Tricone Bit for Mining Well Drilling

​

Product name	TCI Tricone bit for mining well drilling
Size	3 7/8 inch~26 inch
Bearing type	rubber seal and metal seal both available
thread	2 3/8"~7 5/8" API Reg Pin
Gauge protection	gauge protection
WOB	0.4~1.05KN/mm
RPM	110~40r/min
Application formation	medium soft with low compressive strength and harder abrasive stringers,such as hard shale,hard gypsolyte,soft limestone,sandstone and dolomite with stringers,etc.
Weight	10 kg
MOQ	1

WHY TRI-CONE ROCK BITS?

1. Durability Redefined: Featuring tungsten carbide rock-engaging cones, these bits are built to endure tough conditions and stand the test of time. They are known for consistently performing in any environment with swift penetration rates. Using these bits, you'll experience faster drilling with superior penetration rates, maximizing productivity and project completion.
2. Versatility Across Industries: From telecommunications to oil and gas, our bits excel in various industries, offering reliability and versatility. Their Replaceable carbide fluid ports, shirt-tail hard facing, and strategically placed carbide buttons on the bit's housing extend the tool's service life, too.
3. Optimized Efficiency: Precision-engineered by our team with decades of combined experience, our Tri-Cone Rock Bits ensure swift progress on every project.

Suzhou Energy Tool Co., Ltd.

(short for "ENG " ) is a high-tech company formed by a group of drill bit experts with over 20 years of work experience in the world's top oil service companies.

ENG has cooperated with many research institutes at home and has formed an advanced technological system based on market-oriented and continuously promoting technological innovation and product improvement.

ENG 'S bits production lines are equipped with 5-axis machining centers, Modern lathes, and FMS (Flexible manufacturing system ) and can produce matrix body and steel body PDC bits from 3-1/4" to 26" in diameter.

ENG has been keeping on pursuing producing high-quality products with relevant inspections and tests.
The company's QMS has been certified by API, ISO 9001 for many years.

ENG has 23 patents granted in China. On the products Research and Development, ENG has built the basis of 3-dimensional CAD and PDM (Product Data Management ), can technically control the whole process of product manager, so that the product development can be done in a fast and precise manner to maximally meet the time and function requirement of the market for product lifecycle management.

Production Processes:

​​




Certifications:


​



Package & Shipment:








FAQ:​
