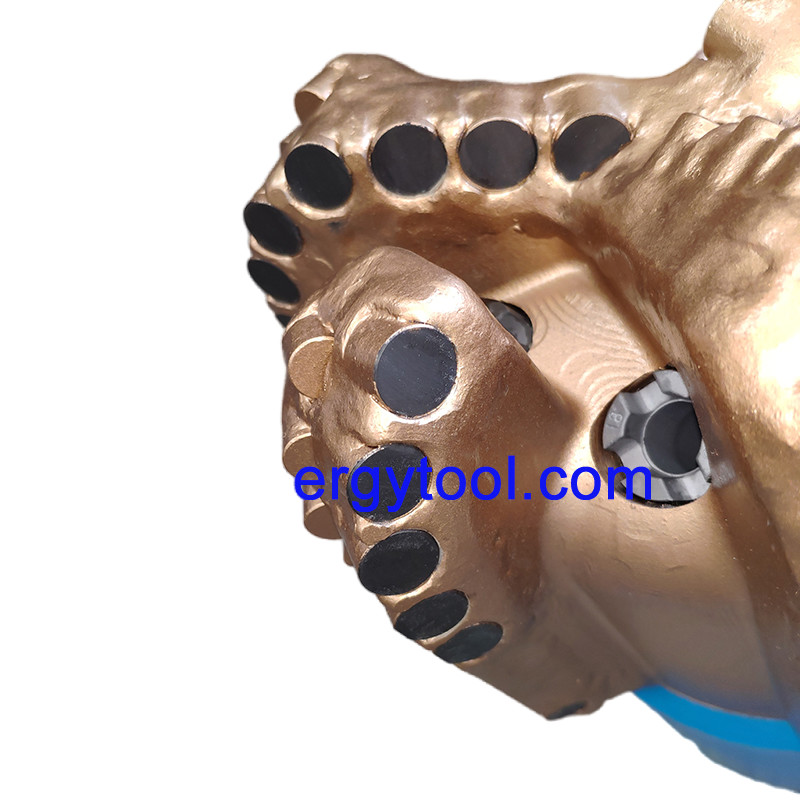

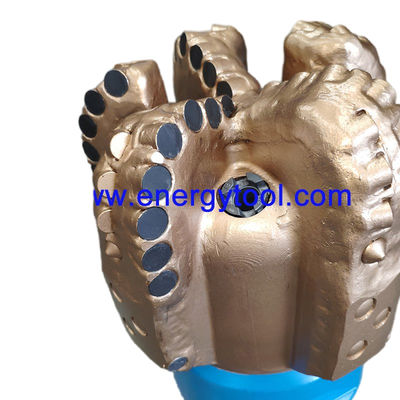

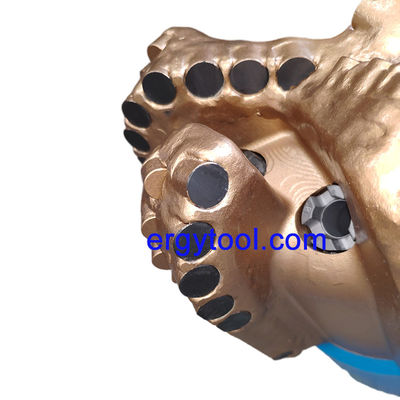

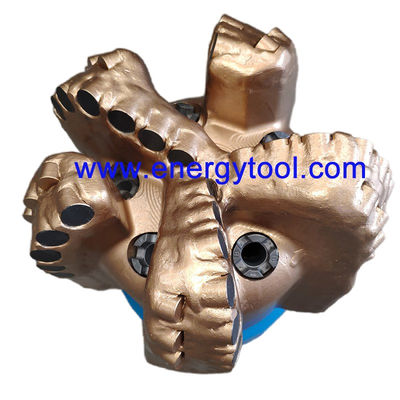

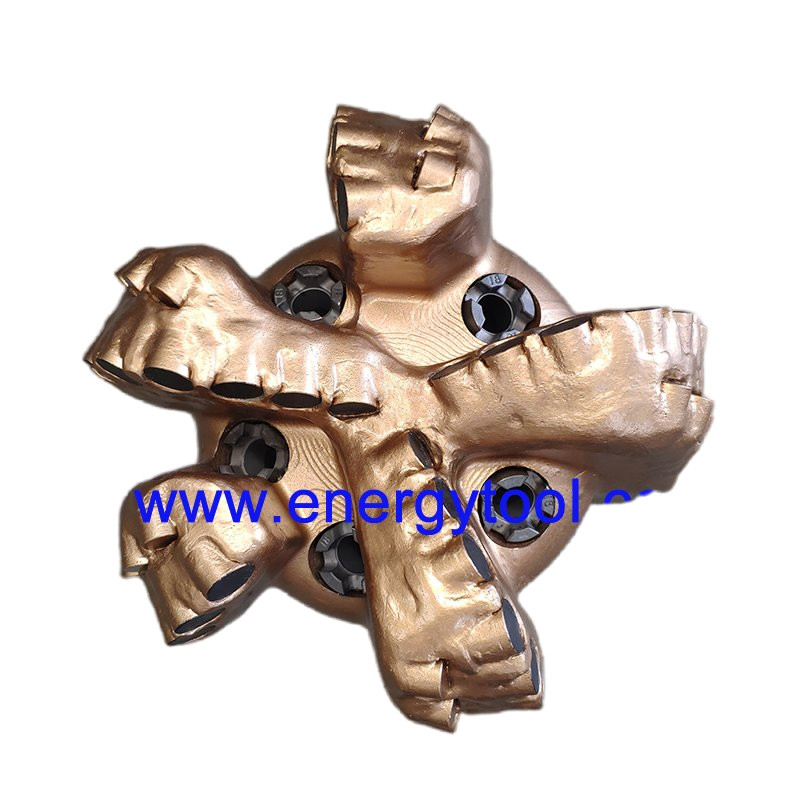

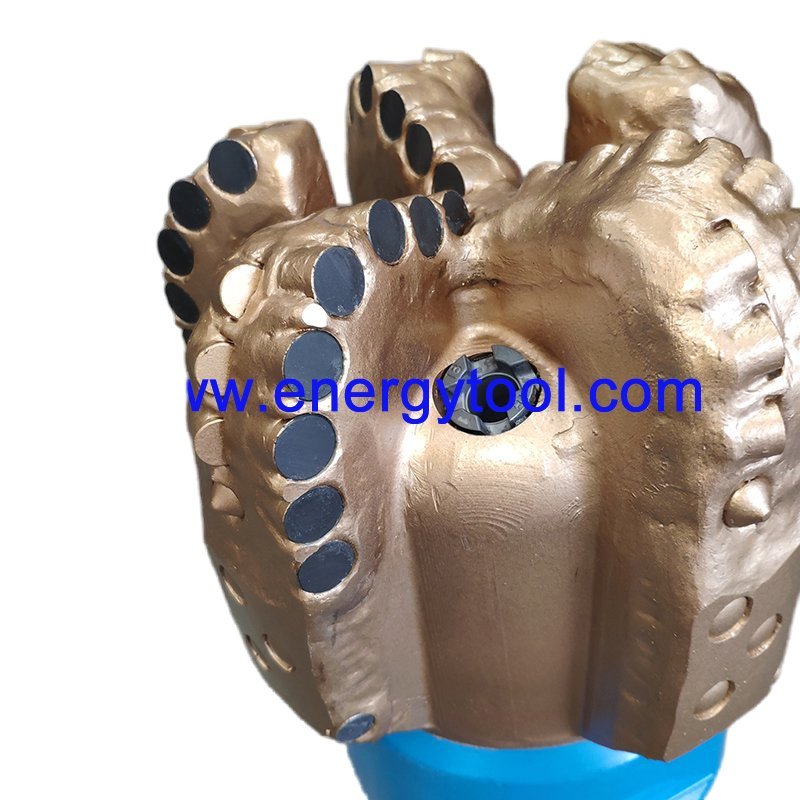

9-1/2 Inch PDC Drill Bit of Diamond Rock Drilling Tool

 9-1/2 Inch PDC Drill Bit Of Diamond Rock Drilling Tool

The profile of a PDC (Polycrystalline Diamond Compact) drill bit is the cross-sectional shape of the bit face. This geometry is critical because it determines the bit's stability, cooling efficiency, and how effectively it cuts through specific rock formations.

The profile is generally categorized into several key zones and common shapes:

To understand the profile, we look at the bit from the center to the outer edge:

• Cone: The innermost part of the bit. A deep cone helps center the bit and improves stability (anti-whirl), while a shallow cone is better for faster drilling in softer formations.

• Nose: The "point" of the bit where the curvature is sharpest. This area experiences the highest mechanical load and usually has the highest cutter density.

• Shoulder: The transition area from the face to the side of the bit. This zone is subject to high linear speeds and centrifugal force, requiring durable cutters.

• Gauge: The vertical part of the bit that defines the hole diameter. It ensures the hole stays "in gauge" and provides lateral stability.

The choice of profile depends on the "drilling objective":

• Flat/Shallow Profile: * Best for: Harder, more abrasive formations.

  • Advantage: Distributes the weight-on-bit (WOB) more evenly across the cutters, reducing the risk of individual cutter failure.

• Long Taper / Deep Cone Profile:

  • Best for: Directional drilling and softer formations.

  • Advantage: Offers superior tracking and stability. The increased surface area allows for more cutters, which helps in high-speed applications.

• Parabolic Profile: * Best for: General purpose and medium-hard formations.

  • Advantage: This is the most common "all-rounder" shape, balancing the need for cleaning (hydraulics) and structural strength.

The profile design directly affects two major factors:

1. Cutter Density: A longer profile (more curvature) allows for more cutters to be placed on the bit, increasing the tool's lifespan in abrasive rock.

2. Hydraulic Cleaning: The space between the profile and the rock (the junk slot) must be shaped to allow the drilling fluid to carry "cuttings" away from the nozzles efficiently to prevent "bit balling.
