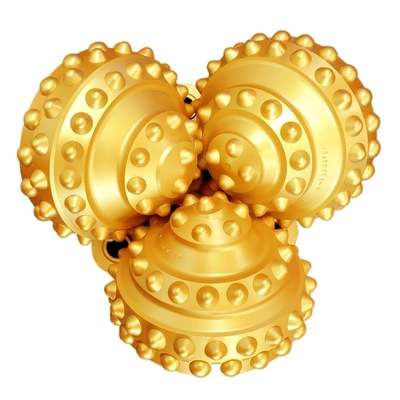

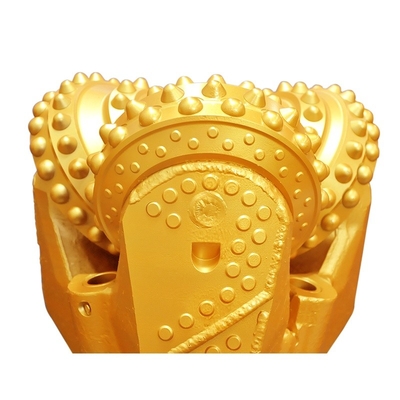

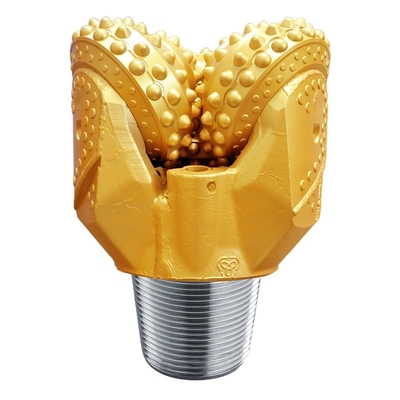

IADC 715 Solid Carbide API Rotary Tri-Cone Drill Bit For Hard Rock Mining Drilling

  • IADC 715 Solid Carbide API Rotary Tri-Cone Drill Bit For Hard Rock Mining Drilling
  • IADC 715 Solid Carbide API Rotary Tri-Cone Drill Bit For Hard Rock Mining Drilling
  • IADC 715 Solid Carbide API Rotary Tri-Cone Drill Bit For Hard Rock Mining Drilling
  • IADC 715 Solid Carbide API Rotary Tri-Cone Drill Bit For Hard Rock Mining Drilling
Place of Origin China
Brand Name ENG
Certification API, ISO
Model Number 715R
Minimum Order Quantity 1
Price 1000-20000
Packaging Details Wooden Box
Delivery Time 4 weeks
Payment Terms L/C,T/T,Western Union
Supply Ability 5000PCS/Year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Diameter 12 1/4'' (311mm) Bearing Type Roller-Ball-Roller-Thrust Button/Sealed Bearing
Circulation Jet Air Connection Thread Type 6 5/8'' REG
Bit Weight 98 Kg
Highlight

Carbide Tri-cone Drill Bit

,

12 1/4” Tri-cone Drill Bit

,

IADC 715 Tri-cone Drill Bit
Leave a Message
Product Description



    12-1/4" IADC 715 Carbide API Mining Rotary Tri-cone Drill Bit





  • CUTTING STRUCTURE
  • Spherical on gage, double spherical on inner rows.
    Designed for high compressive strength, hard and abrasive formations, such as granite, limestone, sandstone, dolomite.
    Compressive strength: 37,000-44,000 psi/255-303 MPa



IADC 715 Solid Carbide API Rotary Tri-Cone Drill Bit For Hard Rock Mining Drilling 0IADC 715 Solid Carbide API Rotary Tri-Cone Drill Bit For Hard Rock Mining Drilling 1











Product Specifications
Diameter  12 1/4"  311mm
Bearing Type  Roller-Ball-Roller-Thrust Button/Sealed Bearing
Drilling cycle type  Jet Air
Connection thread ty  6 5/8'' REG
Operation Parameters
 Rotary speed (r/min)  60-90 r/min
 Weight on Bit (KN)  49,000-73,500lb/22.2-33.3T
Air Back Pressure

 29-58 psi/0.2-0.4 MPa











About Us



        IADC 715 Solid Carbide API Rotary Tri-Cone Drill Bit For Hard Rock Mining Drilling 2





































Certifications



IADC 715 Solid Carbide API Rotary Tri-Cone Drill Bit For Hard Rock Mining Drilling 3









Package&Shipping



IADC 715 Solid Carbide API Rotary Tri-Cone Drill Bit For Hard Rock Mining Drilling 4

IADC 715 Solid Carbide API Rotary Tri-Cone Drill Bit For Hard Rock Mining Drilling 5









Applications



IADC 715 Solid Carbide API Rotary Tri-Cone Drill Bit For Hard Rock Mining Drilling 6







FAQ



Q: You are a trading company or manufacturer ?
A: Manufacturer, We are a 100% real factory with over 20 years' experience in water/oil/gas wells Drill Bits.

Q: How about your products ?
A : Both of tricone bits and PDC bits strictly conform to API 7 requirements and ISO9001. we will do kinds inspections before delivery, also cover for after-sales service.

Q: Package Methods ?
A: Normally wooden case, also can be steel box; can be customized if need.

Q: Payment Terms ?
A: we accept T/T, L/C, Paypal, Western Union, etc.

Q: Can I visit your factory ?
A: Yes, we welcome you to our factory all the time, will send invitation letters if need; also can show our workshop and warehouse online.
