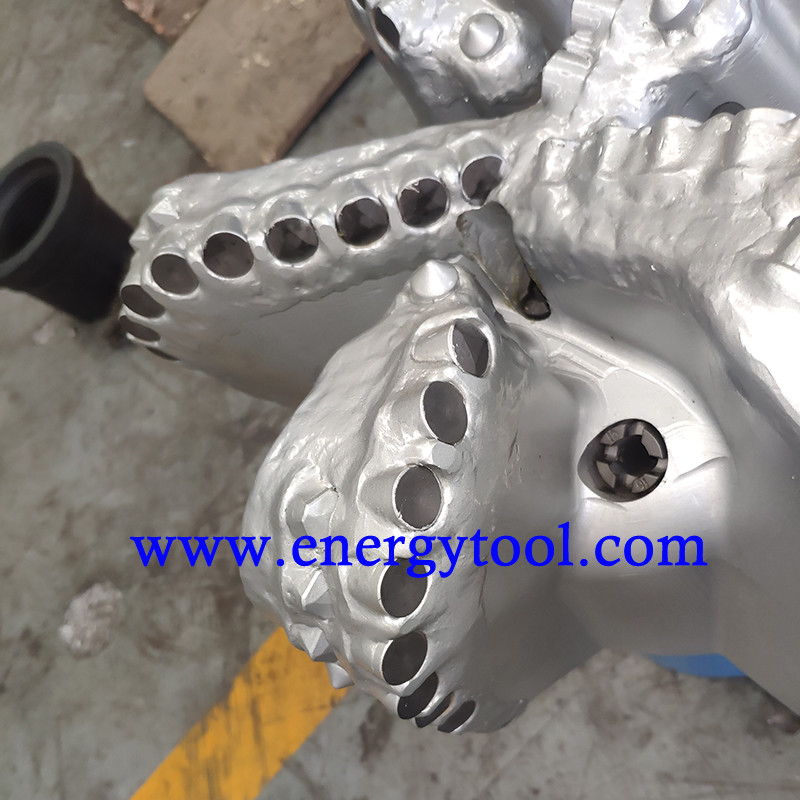

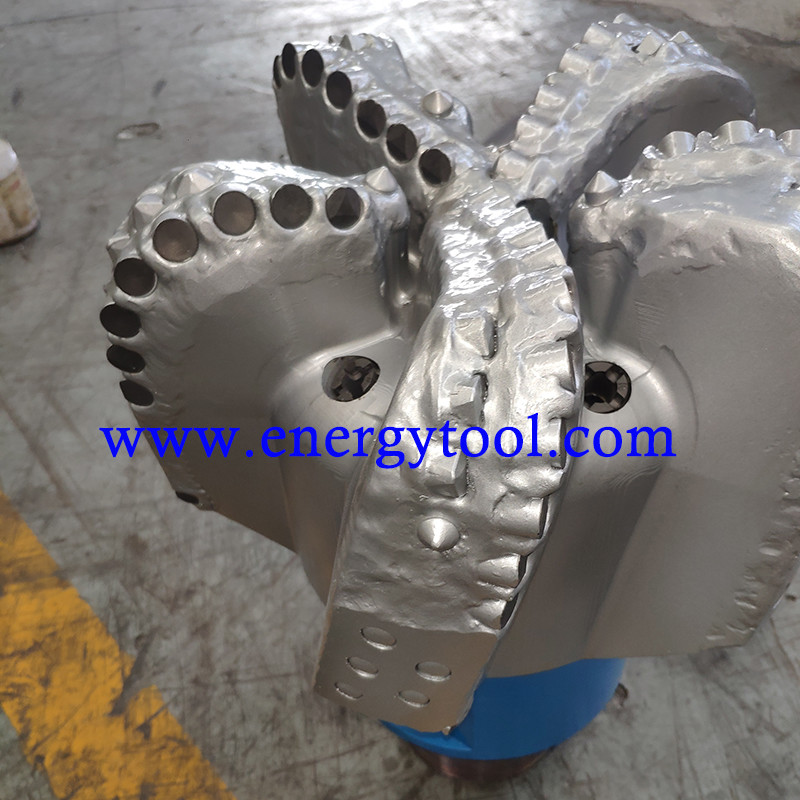

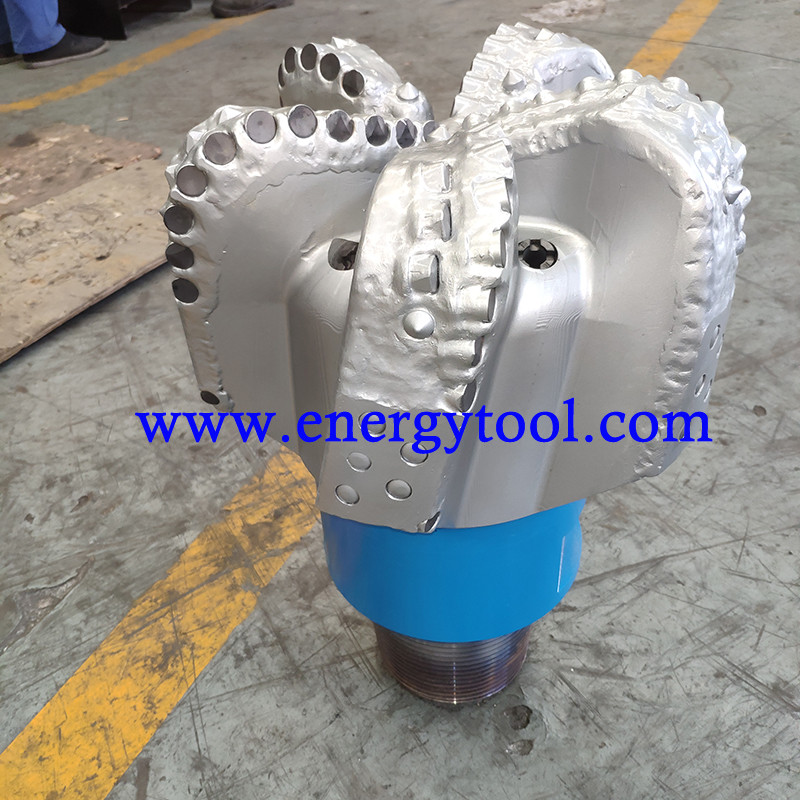

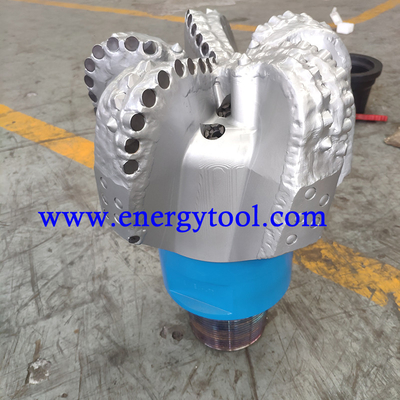

API Diamond Drill Bit 13-1/4 " PDC Bit of Oil Well Drilling Tool
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Market | Global | Well | Oil, Mining ,water |
|---|---|---|---|
| Packing | Wooden Box,steel Box | Formation | Soft To Medium Hard Formations |
| Processing Type | Forging,Casting | Material | Alloy Steel , Tungstern Carbid |
| Highlight | 6 Blade PDC Drill Bit,13-1/4 Inch PDC Drill Bit,API polycrystalline diamond drill bits |
||
Product Description
API Diamond Drill Bit 13-1/4 " PDC Bit of Oil Well Drilling Tool
1 . Descriptions:
This cutting-edge material revolutionizes efficiency and durability in oil drilling operations, ensuring consistent and reliable performance.
Take advantage of our high-performance PDC drilling bits, designed to excel in various drilling conditions. For instance, our S616 PDC bit features a fixed-head design that rotates as a single, cohesive unit, guaranteeing unwavering performance.
When selecting the ideal PDC bit for your needs, consider crucial factors such as cutter density, size, bit profile, and blade type. Our PDC bits are designed to cater to specific requirements and budgets, with sizes ranging from 3 to 22 inches and 3 to 9 blades. Rest assured, our PDC bits comply with API standards, ensuring seamless compatibility with your drilling operations.
2. Specification:
PDC bits like the S616 or M616 are specified with a 6-blade steel or matrix body and a 16mm main cutter. The IADC code indicates if the bit suits hard, soft, or specific profile formations, offering additional insights.
So the IADC 323 have different mean of the PDC Drill Bit .
| SPECIFICATION | |
| Size : | 13-1/4inch (349.3mm) |
| Drill Body Type : | Steel Body |
| Blades Quantity : | 5 |
| Nozzles Quantity : | 5 |
| API Connection (in) : | 6-5/8" REG |
| Gauge Length (In): | 3 |
| OPERATIONAL PARAMETERS | |
| Weight on Bit (KN): | 89-178 |
| RPM Range(Rotary): | 100- DHM |
| Flow Rate(lps): | 48- 57 LPM |
| Make-Up Torque(KN): | 38 - 43 KN.M |

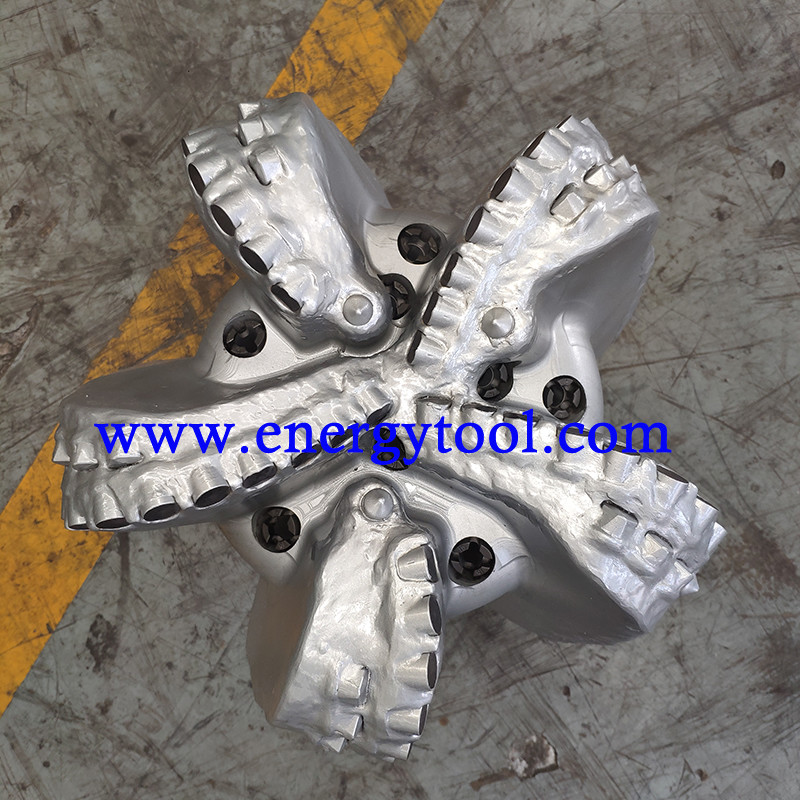

3 . PDC Drill Bit profile

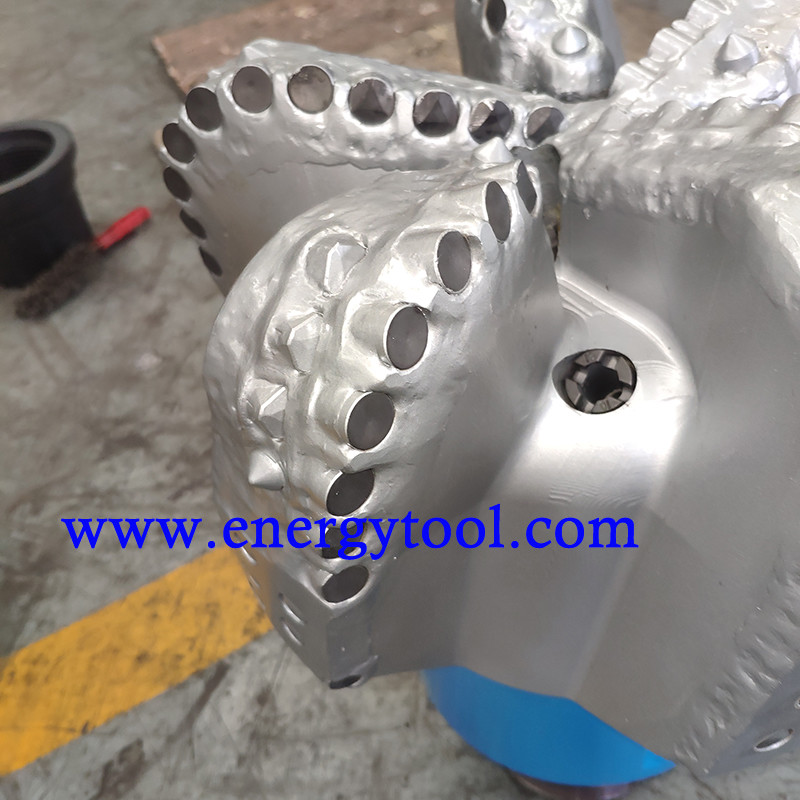

4 . Drill Bit PDC Cutters
At the core of a drill bit are Polycrystalline Diamond Composite (PDC) cutters, which directly engage with the rock, primarily using shearing action for removal. Within the demanding well environment, PDC cutters undergo frequent heating and cooling cycles, posing significant challenges.
PDC cutters with enhanced thermal stability and reduced thermal degradation tend to deliver superior performance, leading to higher Rates of Penetration (ROP) and improved wear resistance. Therefore, optimizing these cutters is crucial for maximizing efficiency.
5. PDC Drill Bit Nozzles
PDC Drill bit nozzles help clear the cutting area and cool the Polycrystalline Diamond Composite (PDC) cutters.
Effective placement of these nozzles along with the angle they are set at plays a critical role on how efficient the drill bit performs.
Fluid channels also complement nozzle placement to improve the clearing of cuttings.
6. Steel Body PDC Bits
Steel body of PDC Bit is the opposite of matrix body. It can of withstanding high impact loads, but is softer and lacks protective features. The strength and ductility of steel give steel-bit bodies high impact resistance.
Steel bodies are considerably stronger than matrix bodies.
A beneficial feature of steel bits is that they can easily be rebuilt a number of times because worn or damaged cutters can be replaced rather easily. This is a particular advantage for operators in low-cost drilling environments.
Polycrystalline diamond compact (PDC) drill bits are different than roller cones in that they are one piece bodies with no moving parts. The fixed-cutters shred the rock, so the bit is able to operate with higher rotation speeds more efficiently in consolidated formations.
