Geological Drilling PDC Bit 12 Inch API Diamond Drilling Tools
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Diamond Drill Bit | Machine Type | Drilling Industry |
|---|---|---|---|
| Processing Type | Forging | Application | Rock Drill |
| Color | Customer Requirement | Advantage | High-efficiency , High Strength |
| Market | All Over The World | Packing | Steel Box |
| Rock Formation | F<8 | ||
| Highlight | API Diamond Drilling Tool,Geological pdc bit cost,12 Inch pdc bit cost |
||
Product Description
Geological 12 Inch API Diamond Drilling Tool
1 . Descriptions:
The PDC Drill Bit is meticulously engineered to conquer the most arduous drilling scenarios encountered in oil and geological drilling. By harnessing the unparalleled strength of PDC (Polycrystalline Diamond Compact), this cutting-edge drill bit cutter exhibits remarkable durability and efficiency when confronted with the task of cutting through rock formations. Its meticulously designed structure is precisely tailored to deliver unmatched performance and an extended lifespan in the face of daunting drilling operations.
The remarkable durability of the PDC Drill Bit is a result of its ingenious construction, which incorporates state-of-the-art cutting mechanisms. Strategically positioned PDC cutters, comprised of tiny synthetic diamond crystals fused under immense pressure and temperature, form a surface that is exceptionally hard and resistant to wear.
2. Specification:
| SPECIFICATION | |
| Size : | 12 inch (304.8mm) |
| Drill Body Type : | Steel Body |
| Blade Quantity : | 5 |
| Nozzle Quantity : | 7 |
| API Connection (in) : | 6-5/8" REG |
| Gauge Length (In): | 3.0 |
| OPERATIONAL PARAMETERS | |
| Weight on Bit (KN): | 89 -178 KN |
| RPM Range (Rotary): | 100- DHM |
| Flow Rate (lps): | 48- 56 LPM |
| Make-Up Torque (KN): | 51 -57 KN.M |

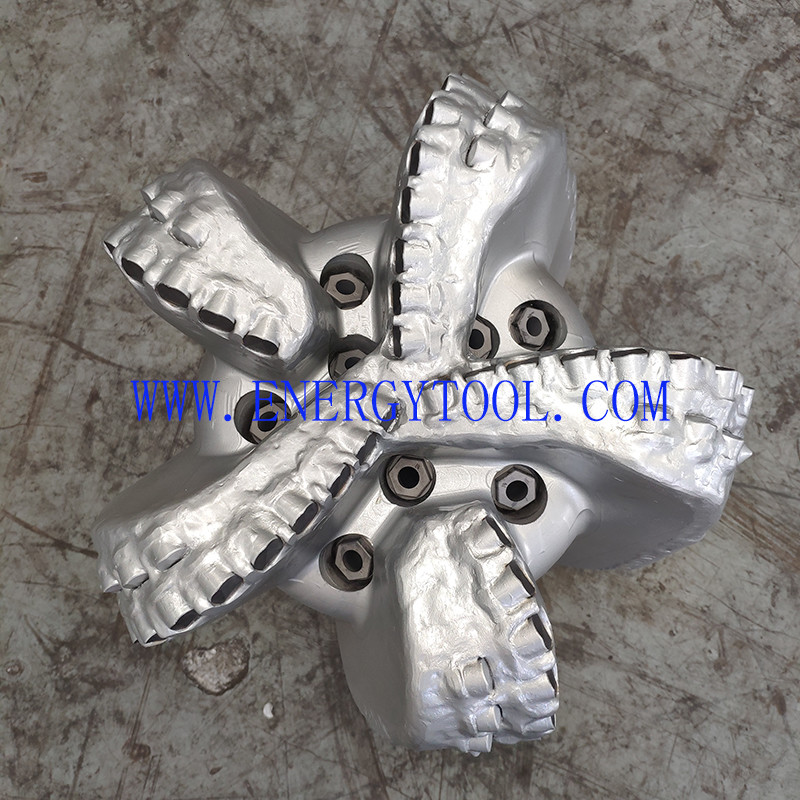

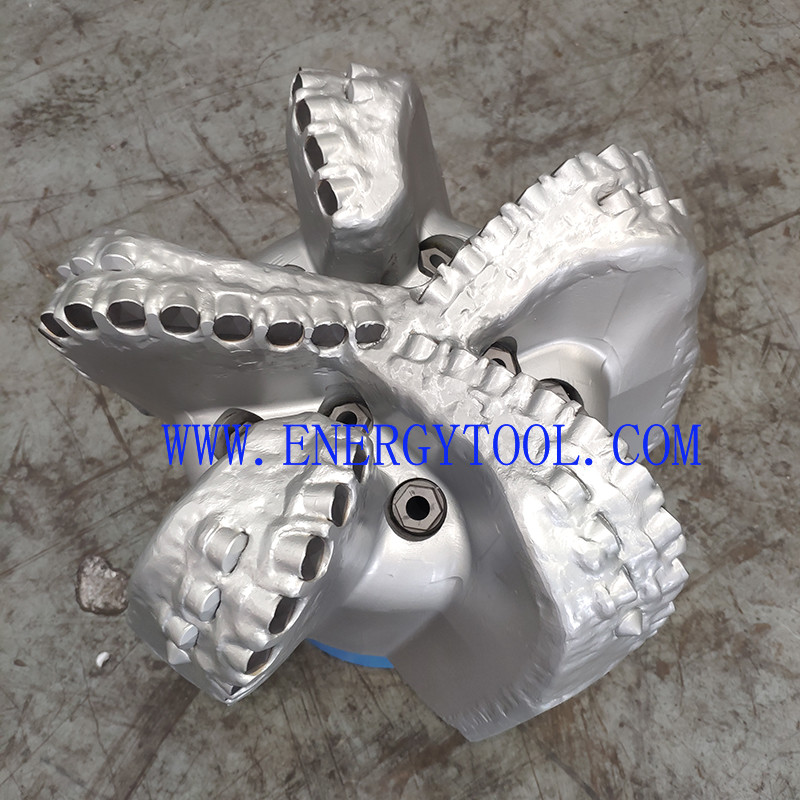

3 . PDC Bit profile

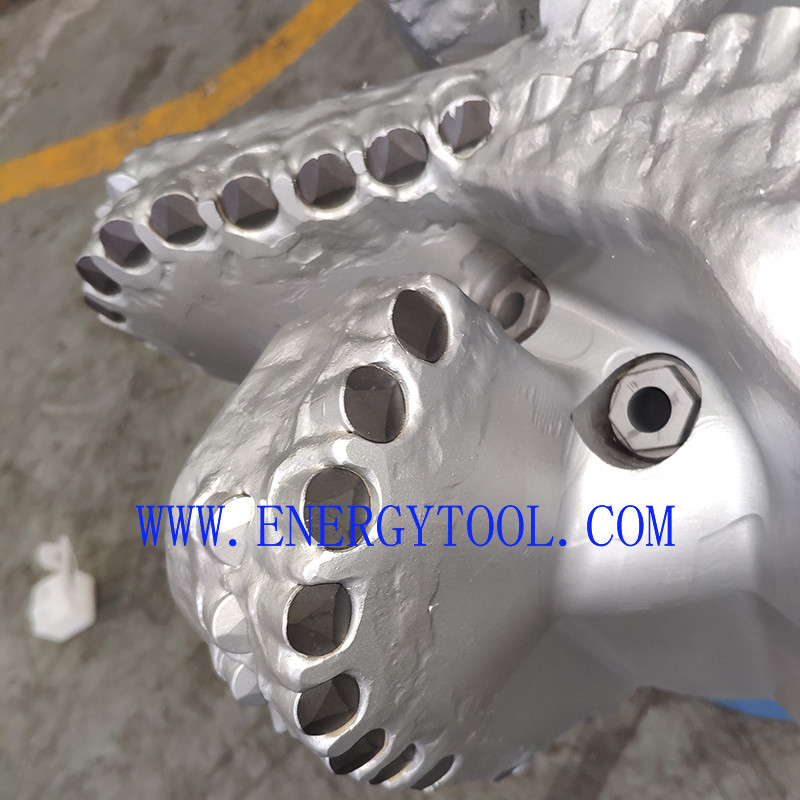

4 . Drill Bit PDC Cutter
Polycrystalline Diamond Composite (PDC) cutters are the main point of contact for a drill bit. PDC bits remove the rock mainly by shearing.
The PDC cutters are exposed to a lot of heating and cooling down the well, a very challenging environment.
PDC cutters that have lower thermal degradation and more thermal stability generally achieve higher ROP and increased wear resistance. So, optimizing the cutter is important.

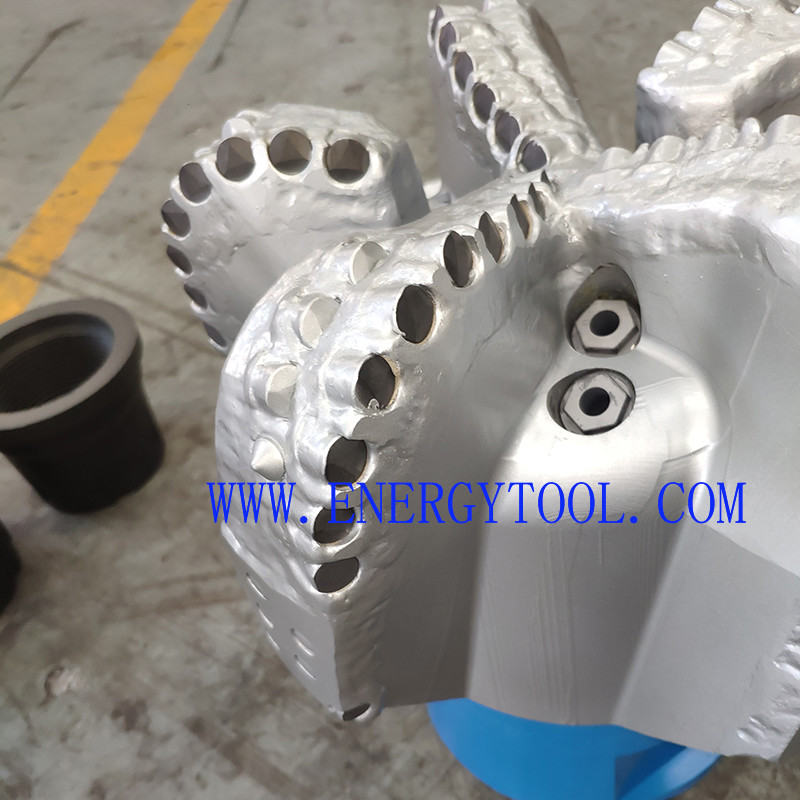

5. Drill Bit Nozzle
Drill bit nozzles help clear the cutting area and cool the Polycrystalline Diamond Composite (PDC) cutters.
Effective placement of these nozzles along with the angle they are set at plays a critical role on how efficient the drill bit performs.
Fluid channels also complement nozzle placement to improve the clearing of cuttings.

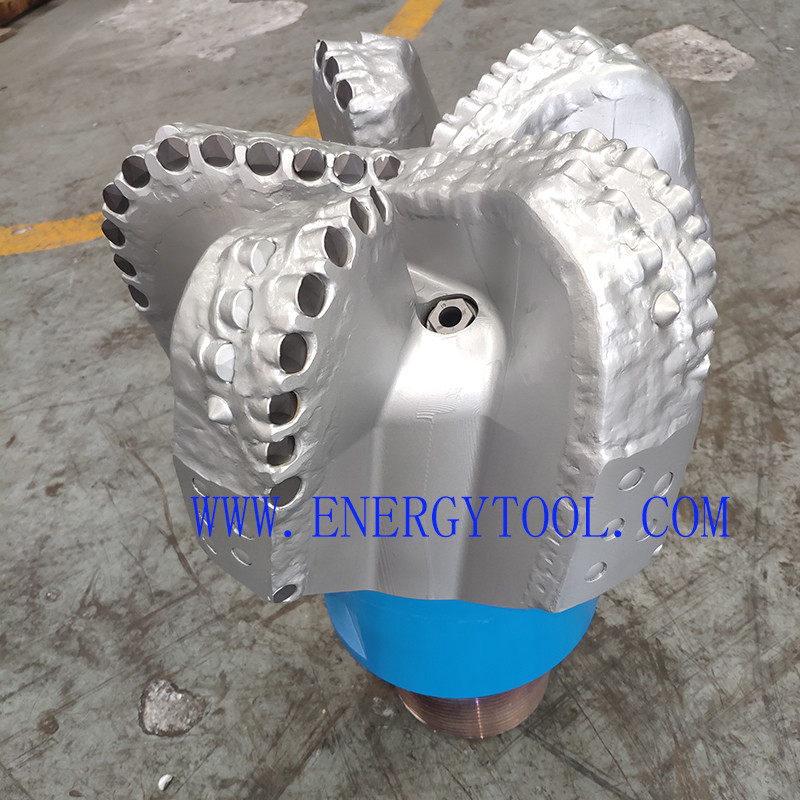

6. Steel Body PDC Bits
Steel body is the opposite of matrix body. It can of withstanding high impact loads, but is softer and lacks protective features. The strength and ductility of steel give steel-bit bodies high impact resistance.
Steel bodies are considerably stronger than matrix bodies.
A beneficial feature of steel bits is that they can easily be rebuilt a number of times because worn or damaged cutters can be replaced rather easily. This is a particular advantage for operators in low-cost drilling environments.
Polycrystalline diamond compact (PDC) drill bits are different than roller cones in that they are one piece bodies with no moving parts. The fixed-cutters shred the rock, so the bit is able to operate with higher rotation speeds more efficiently in consolidated formations.
7. Special Requirement :
