PDC Hard Rock Drill Bits 12 Inch S516 Of API Diamond Drilling Tools
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Diamond Drill Bit | Machine Type | Drilling Industry |
|---|---|---|---|
| Processing Type | Forging | Application | Rock Drill |
| Size | 12" (304.8mm) | Color | Customer Requirement |
| Advantage | High-efficiency , High Strength | Market | All Over The World |
| Packing | Steel Box | ||
| Highlight | 12 Inch PDC Drill Bits,S516 PDC Drill Bits,Hard Rock pdc bit manufacturers |
||
Product Description

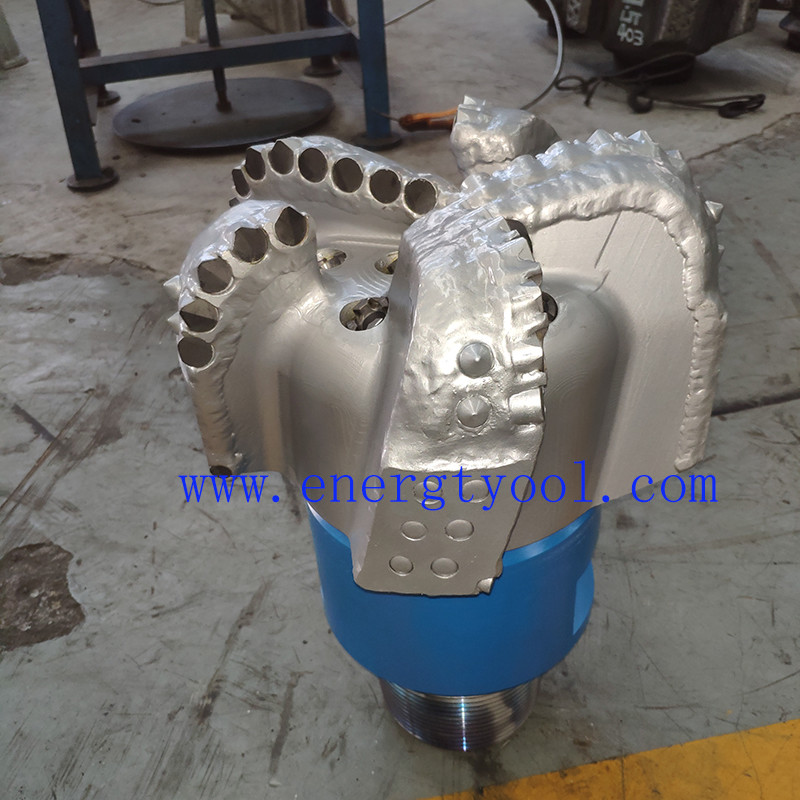

PDC Hard Rock Drill Bits
1 . Descriptions:
In addition to its exceptional durability and efficiency, the PDC Drill Bit offers several key advantages that make it a preferred choice for oil and geological drilling. One notable feature is its advanced cutting structure, which consists of a series of strategically placed PDC cutters on the bit's surface. These cutters are composed of tiny synthetic diamond crystals bonded together under high pressure and temperature, resulting in an incredibly hard and wear-resistant material.
The PDC cutters on the drill bit are designed to provide aggressive and rapid penetration into various rock formations, including hard and abrasive formations. Their precise placement ensures optimal contact with the formation, maximizing the cutting efficiency and reducing the drilling time. This feature makes the PDC Drill Bit highly effective in challenging drilling situations, where speed and precision are crucial.
2. Specification:
| SPECIFICATION | |
| Size : | 12 inch (304.8mm) |
| Drill Body Type : | Steel Body |
| Blade Quantity : | 5 |
| Nozzle Quantity : | 7 |
| API Connection (in) : | 6-5/8" REG |
| Gauge Length (In): | 3.0 |
| OPERATIONAL PARAMETERS | |
| Weight on Bit (KN): | 89 -178 KN |
| RPM Range (Rotary): | 100- DHM |
| Flow Rate (lps): | 48- 56 LPM |
| Make-Up Torque (KN): | 51 -57 KN.M |

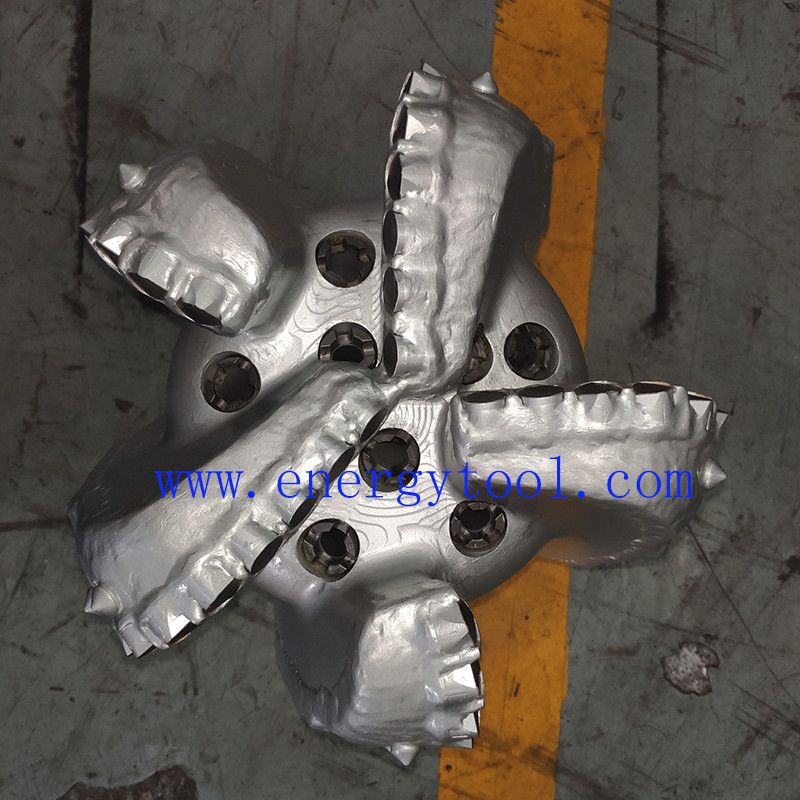

3 . PDC Bit profile
4 . Drill Bit PDC Cutter
Polycrystalline Diamond Composite (PDC) cutters are the main point of contact for a drill bit. PDC bits remove the rock mainly by shearing.
The PDC cutters are exposed to a lot of heating and cooling down the well, a very challenging environment.
PDC cutters that have lower thermal degradation and more thermal stability generally achieve higher ROP and increased wear resistance. So, optimizing the cutter is important.
5. Drill Bit Nozzle
Drill bit nozzles help clear the cutting area and cool the Polycrystalline Diamond Composite (PDC) cutters.
Effective placement of these nozzles along with the angle they are set at plays a critical role on how efficient the drill bit performs.
Fluid channels also complement nozzle placement to improve the clearing of cuttings.

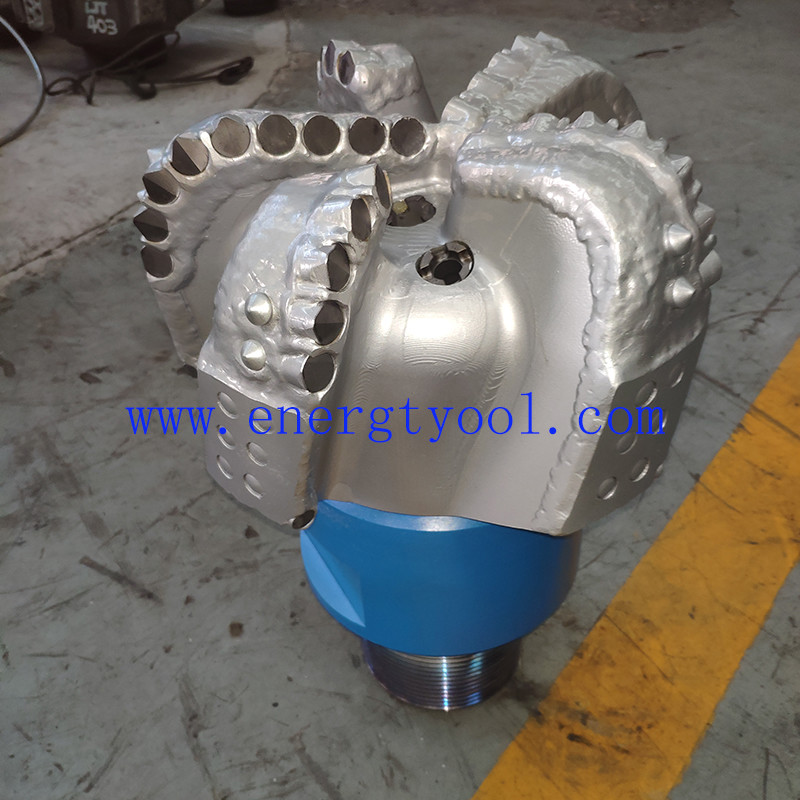

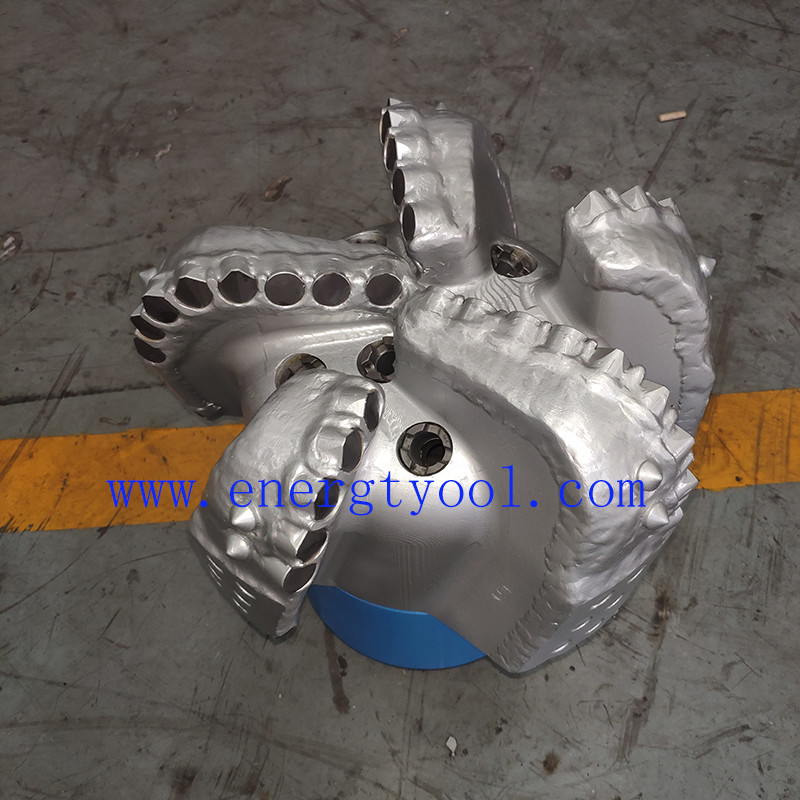

6. Steel Body PDC Bits
Steel body is the opposite of matrix body. It can of withstanding high impact loads, but is softer and lacks protective features. The strength and ductility of steel give steel-bit bodies high impact resistance.
Steel bodies are considerably stronger than matrix bodies.
A beneficial feature of steel bits is that they can easily be rebuilt a number of times because worn or damaged cutters can be replaced rather easily. This is a particular advantage for operators in low-cost drilling environments.
Polycrystalline diamond compact (PDC) drill bits are different than roller cones in that they are one piece bodies with no moving parts. The fixed-cutters shred the rock, so the bit is able to operate with higher rotation speeds more efficiently in consolidated formations.
7. Special Requirement :
