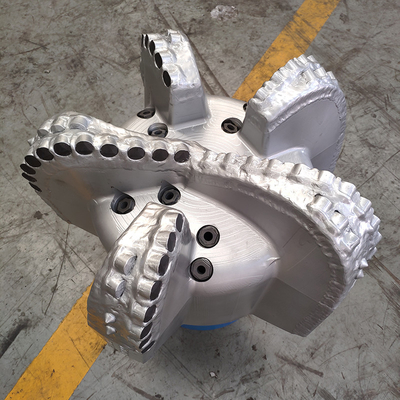

PDC Drill Bit 12 Inch 5 Blades API Spec Of Oil Diamond Drilling Tool
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Diamond Drill Bit | Use | Oil ,gas ,minig ,drilling ,water |
|---|---|---|---|
| Material | Diamond ,Alloy Steel ,Tungston Carbide | Machine Type | Drilling Industry |
| Processing Type | Forging ,Casting | Application | Rock Drill Of Oil ,mining ,gas |
| Highlight | 5 Blades PDC Drill Bit,API Spec PDC Drill Bit,12 Inch PDC Drill Bit |
||
Product Description
PDC Drill Bit 12 Inch 5 Blades API Spec Of Oil Diamond Drilling Tool
1 . Descriptions:
The PDC Drill Bit is designed for the toughest drilling conditions in oil and geological drilling. Made with the hardest material, PDC (Polycrystalline Diamond Compact), this drill bit cutter is highly durable and efficient in cutting through rock formations. It is specifically engineered to provide superior performance and longevity in challenging drilling operations.
Features: - Made with PDC, the hardest material for enhanced durability and cutting efficiency - Designed for oil and geological drilling applications - High-performance cutter design for improved drilling speed and efficiency - Suitable for drilling through various rock formations
Benefits: - Exceptional durability and longevity for extended drilling operations - Improved drilling speed and efficiency for increased productivity - Reliable performance in challenging drilling conditions - Suitable for a wide range of drilling applications in the oil and geological industries
2. Specification:
|
SPECIFICATION
|
|
| Size : | 12 inch (304.8mm) |
| Drill Body Type : | Steel Body |
| Blades Quantity : | 5 |
| Nozzles Quantity : | 7 |
| API Connection (in) : | 6-5/8" REG |
| Gauge Length (In): | 3.0 |
|
OPERATIONAL PARAMETERS
|
|
| Weight on Bit (KN): | 89 -178 KN |
| RPM Range(Rotary): | 100- DHM |
| Flow Rate(lps): | 48- 56 LPM |
| Make-Up Torque(KN): | 51- 57 KN.M |

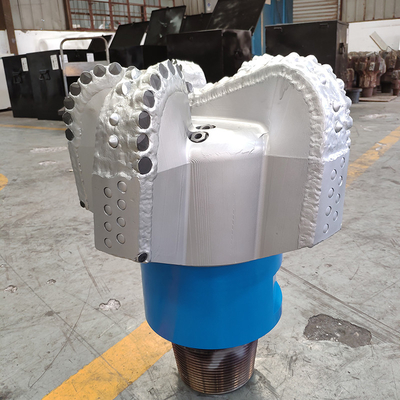

3 . PDC Bit profile

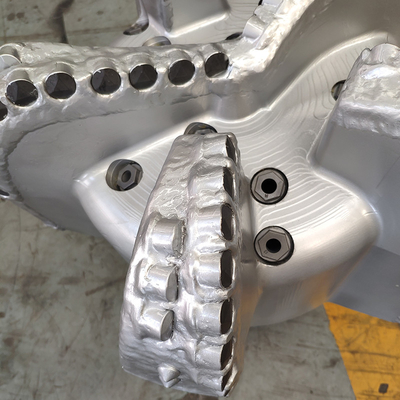

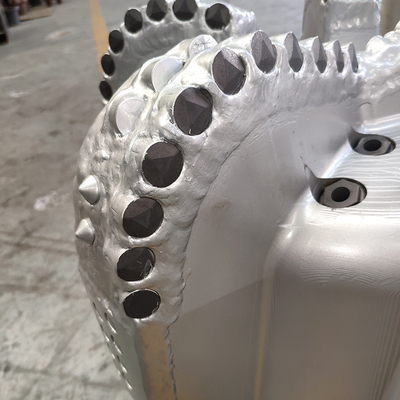

4 . Drill Bit PDC Cutters
Polycrystalline Diamond Composite (PDC) cutters are the main point of contact for a drill bit. PDC bits remove the rock mainly by shearing.
The PDC cutters are exposed to a lot of heating and cooling down the well, a very challenging environment.
PDC cutters that have lower thermal degradation and more thermal stability generally achieve higher ROP and increased wear resistance. So, optimizing the cutter is important.

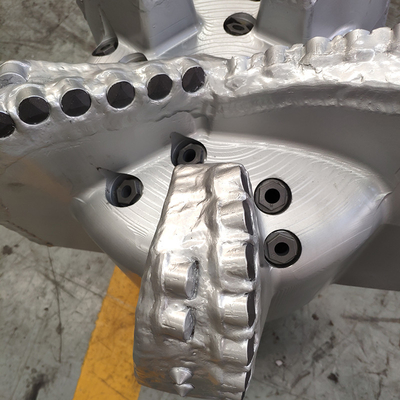

5. Drill Bit Nozzles
Drill bit nozzles help clear the cutting area and cool the Polycrystalline Diamond Composite (PDC) cutters.
Effective placement of these nozzles along with the angle they are set at plays a critical role on how efficient the drill bit performs.
Fluid channels also complement nozzle placement to improve the clearing of cuttings.
6. Steel Body PDC Bits
Steel body is the opposite of matrix body. It can of withstanding high impact loads, but is softer and lacks protective features. The strength and ductility of steel give steel-bit bodies high impact resistance.
Steel bodies are considerably stronger than matrix bodies.
A beneficial feature of steel bits is that they can easily be rebuilt a number of times because worn or damaged cutters can be replaced rather easily. This is a particular advantage for operators in low-cost drilling environments.
Polycrystalline diamond compact (PDC) drill bits are different than roller cones in that they are one piece bodies with no moving parts. The fixed-cutters shred the rock, so the bit is able to operate with higher rotation speeds more efficiently in consolidated formations.
7. Special Requirement :
