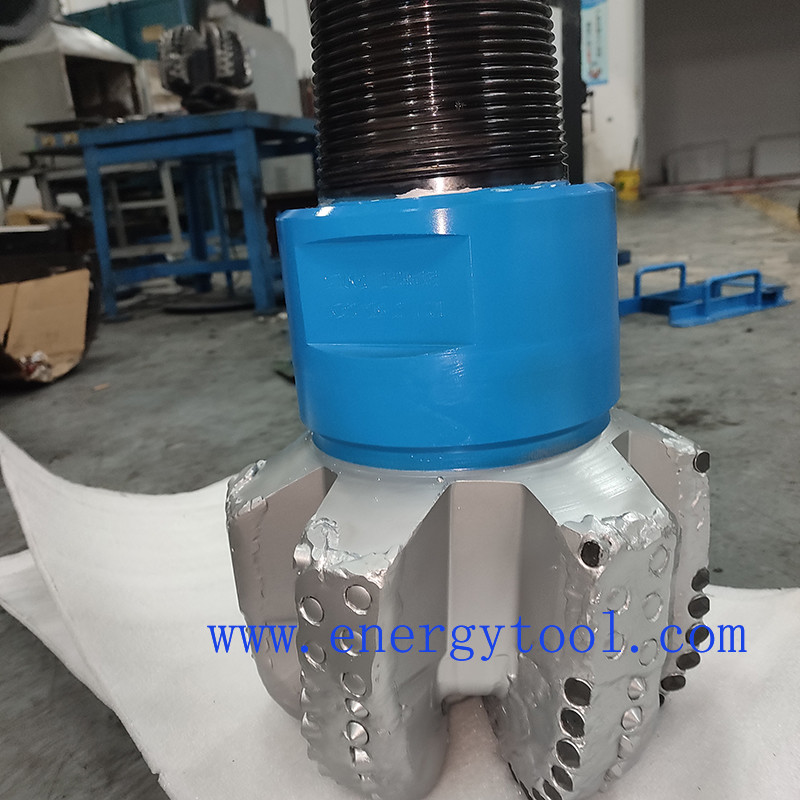

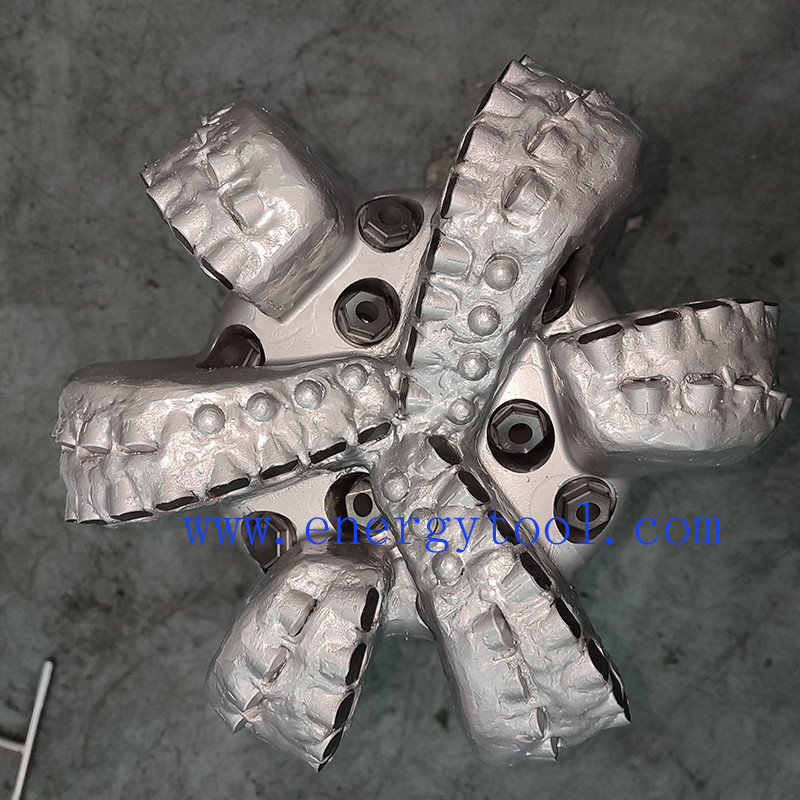

PDC Rock Bit 12-1/4 Inch 5 Blades of Oilfield Drilling Bit

PDC Rock Bit 12-1/4 Inch 5 Blades of Oilfield Drilling Bit





1 . Descriptions:





The size and shape of the diamond cutters can vary depending on the type of rock being drilled. For example, larger cutters may be used for drilling through hard formations, while smaller cutters may be used for softer formations.



PDC drill bits can also be designed with different types of nozzles to optimize the flow of drilling fluid and improve cooling and lubrication of the bit.



According to the International Association of Drilling Contractors (IADC), the Fixed-cutter bit classification composed of four characters that designate:

• PDC Bit Body material
• PDC Bit Cutter density
• PDC Bit Cutter size or type
• PDC Bit  Profile

All of our PDC Drill bits are fit for API standard and used in the drilling Industry.

The PDC drill bits size 3~22inch with 3~9Blades are available. And different classification cutter are optional according to your budget .





2. Specification:



SPECIFICATION
Size :	12-1/4" (311.1mm)
Drill Body Type :	Steel Body
Blades Quantity :	5
Nozzles Quantity :	7
API Connection (in) :	6-5/8" REG
Gauge Length (In):	2
OPERATIONAL PARAMETERS
Weight on Bit (KN):	91-200
RPM Range(Rotary):	80-DHM
Flow Rate(lps):	48-57 LPM
Make-Up Torque(KN):	51-62KN.M







3 . PDC Bit of  profile

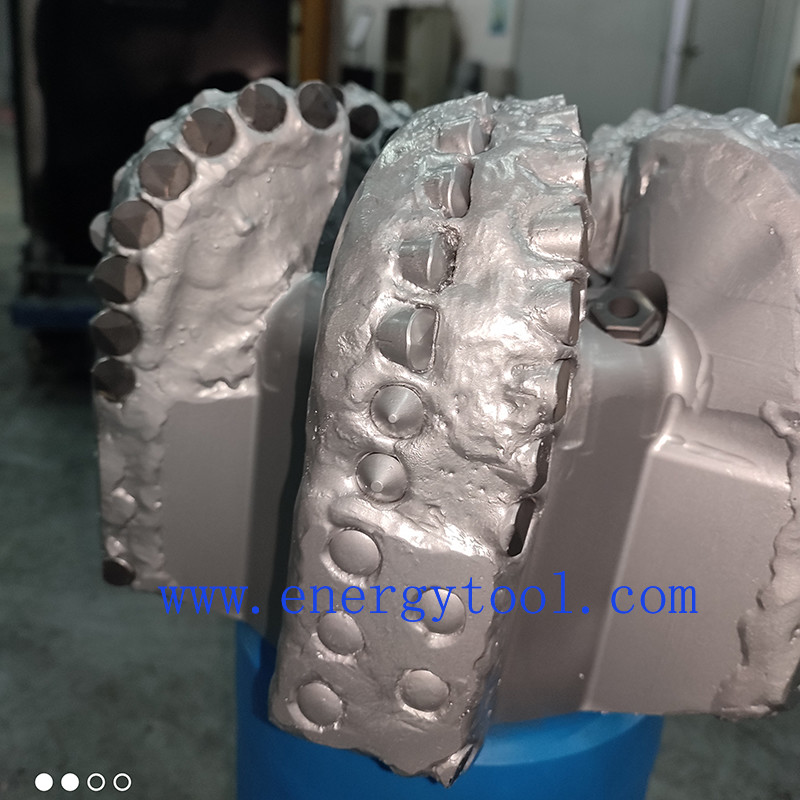

4  . PDC Drill Bit  Cutters



Polycrystalline Diamond Composite (PDC) cutters are the main point of contact for a drill bit. PDC drill bits remove the rock mainly by shearing.

The PDC cutters are exposed to a lot of heating and cooling down the well, a very challenging environment.

PDC cutters that have lower thermal degradation and more thermal stability generally achieve higher ROP and increased wear resistance. So, optimizing the cutter is important.



Accorrding to the Api ,the cutter size are as below :



1 indicates PDC cutters > 24 mm in diameter.

2 represents cutters from 14 to 24 mm in diameter.

3 indicates PDC cutters < 14 but > 8 mm. 4 is used for cutters < 8 mm.





5. PDC  Drill Bit Nozzles



Drill bit nozzles help clear the cutting area and cool the Polycrystalline Diamond Composite (PDC) cutters.

Effective placement of these nozzles along with the angle they are set at plays a critical role on how efficient the drill bit performs.

Fluid channels also complement nozzle placement to improve the clearing of cuttings.







6. Steel Body PDC Bits



Steel body of PDC Bit is the opposite of matrix body. It can of withstanding high impact loads, but is softer and lacks protective features. The strength and ductility of steel give steel-bit bodies high impact resistance. Steel bodies are considerably stronger than matrix bodies.

A beneficial feature of steel bits is that they can easily be rebuilt a number of times because worn or damaged cutters can be replaced rather easily. This is a particular advantage for operators in low-cost drilling environments.



Polycrystalline diamond compact (PDC) drill bits are different than roller cones in that they are one piece bodies with no moving parts. The fixed-cutters shred the rock, so the bit is able to operate with higher rotation speeds more efficiently in consolidated formations.
