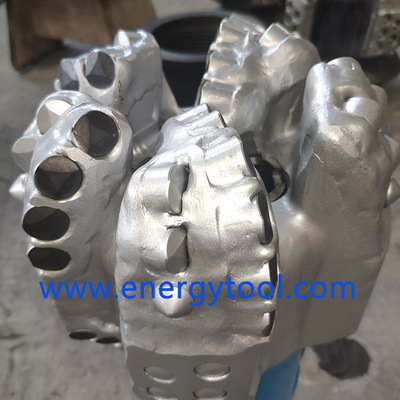

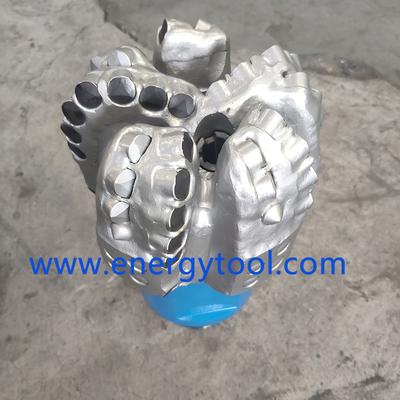

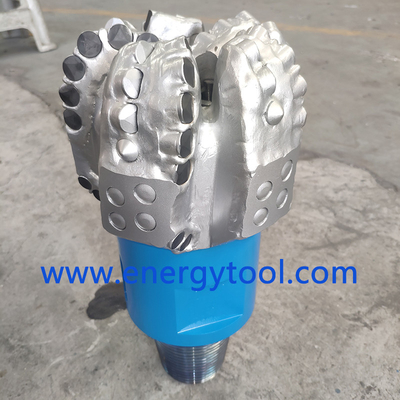

6-1/2 Inch 6 Blades PDC Drill Bit with Polycrystalline Diamond Composite Material
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Surface Treatment | PDC Insert | Use | Drilling Well |
|---|---|---|---|
| Bit Type | Fixed Cutter PDC Bit | Connection Type | API Thread |
| Shipment | According To Requirement | Cutter Strucuter | Para-curve |
| Usage | Oil ,mining ,gas | Connection | API Or Premium |
| Formation Type | Soft, Medium, Hard, Or Extreme Hard | ||
| Highlight | 6 Blades PDC Bit,API Spec PDC Drill Bit,6 Blades PDC Drill Bit |
||
Product Description
PDC Drilling Bit 6-1/2 Inch 6 Blades PDC Cutter Of Drilling Rig Bit
1 . Descriptions:
What does PDC mean in drilling Tool?
Polycrystalline diamond materials, for use in polycrystalline diamond compact (PDC) bits, are one of the most important material advances for oil drilling tools in recent years. Fixed-head bits rotate as one piece and contain no separately moving parts.
PDC drill bits with high hardness and a fixed blade design offer outstanding cutting efficiency and wear resistance. They are suitable for various formations, enhancing drilling speed and operational efficiency.
The blades of PDC drill bits are made of polycrystalline diamond composite material, providing excellent anti-plugging performance and high-temperature adaptability. They can operate reliably in harsh downhole environments.
- Cutter density
- Cutter size or type
- Bit profile
- Cutter Blades
All of our Drill bits are fit for API standard and used in the drilling Industry. The PDC drill bits size 3~22inch with 3~9Blades are available. And different classification cutter are optional according to your budget .
2. Specification:
Polycrystalline diamond compacts PDC bit in the Oil and Gas Industry PDC bits get their name from the polycrystalline diamond compacts used for their cutting structure. A PDC bit is a drill bit fitted with industrial diamond cutters instead of hardened metal teeth.
|
SPECIFICATION
|
|
| Size : | 6 inch (152.4mm) |
| Drill Body Type : | Steel Body |
| Blades Quantity : | 6 |
| Nozzles Quantity : | 4 |
| API Connection (in) : | 3-1/2" REG |
| Gauge Length (In): | 2 |
|
OPERATIONAL PARAMETERS
|
|
| Weight on Bit (KN): | 9-67 |
| RPM Range(Rotary): | 80- DHM |
| Flow Rate(lps): | 11 - 15 LPM |
| Make-Up Torque(KN): | 9.5 -12.2 KN.M |

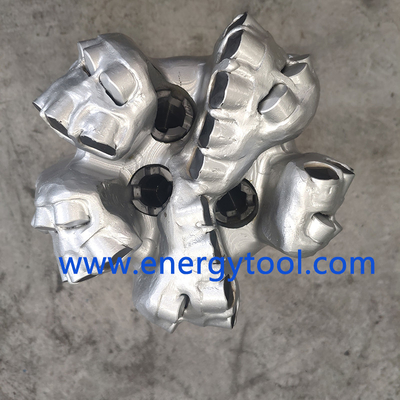

3 . PDC Drill Bit Profile :

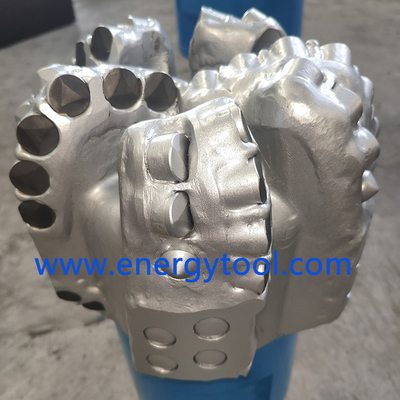

4 . Drill Bit PDC Cutters
Polycrystalline Diamond Composite (PDC) cutters are the main point of contact for a drill bit. PDC bits remove the rock mainly by shearing.
The PDC cutters are exposed to a lot of heating and cooling down the well, a very challenging environment.
PDC cutters that have lower thermal degradation and more thermal stability generally achieve higher ROP and increased wear resistance. So, optimizing the cutter is important.
5. PDC Drill Bit Nozzles
PDC Drill bit nozzles help clear the cutting area and cool the Polycrystalline Diamond Composite (PDC) cutters.
Effective placement of these nozzles along with the angle they are set at plays a critical role on how efficient the drill bit performs.
Fluid channels also complement nozzle placement to improve the clearing of cuttings.
6. Steel Body PDC Bits
Steel body of PDC Bit is the opposite of matrix body. It can of withstanding high impact loads, but is softer and lacks protective features. The strength and ductility of steel give steel-bit bodies high impact resistance.
Steel bodies are considerably stronger than matrix bodies.
A beneficial feature of steel bits is that they can easily be rebuilt a number of times because worn or damaged cutters can be replaced rather easily. This is a particular advantage for operators in low-cost drilling environments.
Polycrystalline diamond compact (PDC) drill bits are different than roller cones in that they are one piece bodies with no moving parts. The fixed-cutters shred the rock, so the bit is able to operate with higher rotation speeds more efficiently in consolidated formations.
