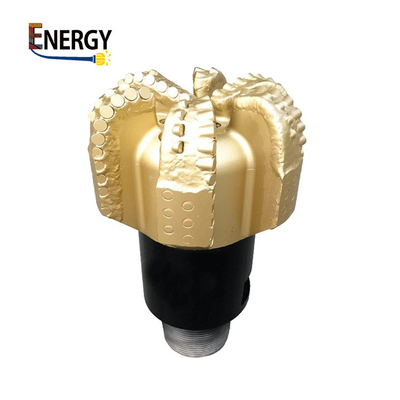

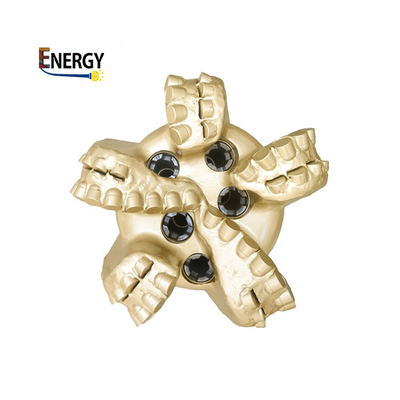

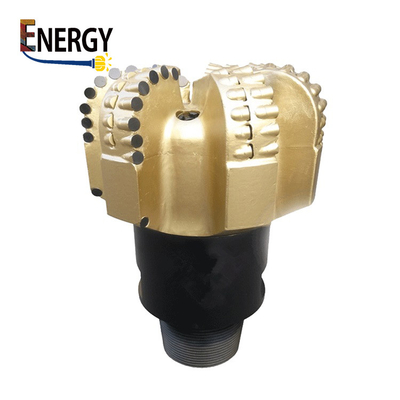

Diamond Drilling Tool 10-5/8 Inch 5Blades Double Cutter Row PDC Drill Bit
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Diamond Drill Bit | Use | Oil ,gas ,minig ,drilling |
|---|---|---|---|
| Material | Diamond ,Alloy Steel ,Tungston Carbide | Machine Type | Drilling Tool |
| Processing Type | Forging ,Casting | Application | Rock Drill Of Oil ,mining ,gas |
| Size | 10-5/8"(269.9mm) | Color | Customer Requirement |
| Advantage | High-efficiency , High Strength | Cutter Diameter | 16mm |
| Usage | Oil ,mining ,gas | Blades | 6 Blades |
| Market | Global | Packing | Wooden Box Or Steel Box |
| Name | Oil Well Drilling Pdc Drill Bit | Rock Formation | F<8 |
| Nozzles | 9 | ||
| Highlight | Double Cutter Row Diamond Drilling Tool,10-5/8 Inch Diamond Drilling Tool,5Blades Diamond Drilling Tool |
||
Product Description
Diamond Drilling Tool 10-5/8 Inch 5Blades Double Cutter Row PDC Drill Bit
1 . Descriptions:
A PDC dril bit is a special type of diamond drilling bit that does not use roller cones, but instead has polycrystalline diamond inserts. PDC bits get their name from the polycrystalline diamond compacts used for their cutting structure.
According to the International Association of Drilling Contractors (IADC), the Fixed-cutter of PDC Drill bit classification composed of four characters that designate:
- PDC Drill Bit Body material
- PDC Drill Bit Cutter density
- PDC Drill Bit Cutter size or type
- PDC Drill Bit profile
All of our PDC Drill bits are fit for API standard and used in the drilling Industry.
The PDC drill bits size 3~22inch with 3~9Blades are available. And different classification cutter are optional according to your budget .
PDC (Polycrystalline Diamond Compact/Composite) drill bits are highly efficient tools utilized for drilling through uniform sedimentary rock formations like shale, sandstone, dolomite, limestone, and more. These drill bits employ a shearing, scraping, or shaving action to effectively penetrate the rock formations.
Renowned for their exceptional rigidity, PDC bits stand out among other diamond tool materials. They are manufactured by combining layers of polycrystalline diamond (synthetic diamond) with a carbide substrate under high temperature and pressure conditions. This process ensures their durability and reliability in demanding drilling applications.
2. PDC Drill Bit Specification:
| SPECIFICATION | |
| Size : | 10-5/8 " (269.9mm) |
| Drill Body Type : | Steel Body |
| Blades Quantity : | 5 |
| Nozzles Quantity : | 10 |
| API Connection (in) : | 6 -5/8" REG |
| Gauge Length (In): | 2.5 |
| OPERATIONAL PARAMETERS | |
| Weight on Bit (KN): | 88-176 kN |
| RPM Range(Rotary): | 100-DHM |
| Flow Rate(lps): | 47-56 LPS |
| Make-Up Torque(KN): | 38 -43 KN.M |
3 . PDC Bit profile
4 . Drill Bit PDC Cutters
Polycrystalline Diamond Composite (PDC) cutters are the main point of contact for a drill bit. PDC bits remove the rock mainly by shearing.
The PDC cutters are exposed to a lot of heating and cooling down the well, a very challenging environment.
PDC cutters that have lower thermal degradation and more thermal stability generally achieve higher ROP and increased wear resistance. So, optimizing the cutter is important.
5. PDC Drill Bit Nozzles
PDC Drill bit nozzles help clear the cutting area and cool the Polycrystalline Diamond Composite (PDC) cutters.
Effective placement of these nozzles along with the angle they are set at plays a critical role on how efficient the drill bit performs.
Fluid channels also complement nozzle placement to improve the clearing of cuttings.
6. Steel Body PDC Bits
Steel body of PDC Drill Bit is the opposite of matrix body of PDC Drill Bit . It can of withstanding high impact loads, but is softer and lacks protective features. The strength and ductility of steel give steel-bit bodies high impact resistance. Steel bodies of PDC are considerably stronger than matrix bodies.
A beneficial feature of steel bits is that they can easily be rebuilt a number of times because worn or damaged cutters can be replaced rather easily. This is a particular advantage for operators in low-cost drilling environments.
Polycrystalline diamond compact (PDC) drill bits are different than roller cones in that they are one piece bodies with no moving parts. The fixed-cutters shred the rock, so the bit is able to operate with higher rotation speeds more efficiently in consolidated formations.
