PDC Drill Bit 5 Blades Steel Body PDC Bit 17-1/2 Inch Oilfield Diamond Drilling Tool
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Diamond Drilling Tool | Use | Drilling Well |
|---|---|---|---|
| Material | Diamond ,Alloy Steel ,Tungston Carbide | Machine Type | Drilling Tool |
| Processing Type | Forging,Casting | Application | Water/oil/mining |
| Product Name | PDC Cutters | Size | Required |
| Color | Request | Advantage | High-efficiency,High Strength |
| Blades | 5 Blades | Market | All Over The Word |
| Packing | Wooden Box,steel Box | Name | Pdc For Drilling Bits |
| Rock Formation | F<8 | ||
| Highlight | Forging Steel Body PDC Drill Bits,PDC Bit 17-1/2 Inch,Oilfield Diamond Drilling PDC Bit |
||
Product Description

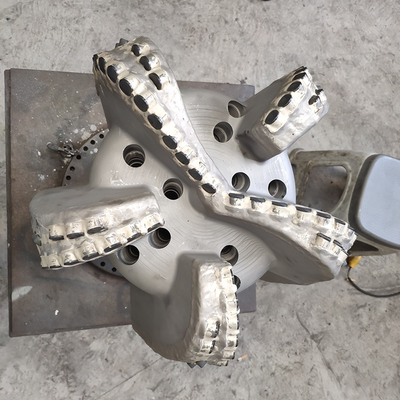

PDC Drill Bit 17.5 Inch 5 Blades Diamond Drilling Tool of oilfeild
1 . Descriptions:
PDC bits are specifically engineered for high-speed drilling in shale, limestone, and sandstone formations. Diverging from roller cones, these polycrystalline diamond compact (PDC) drill bits are solid bodies without any movable components. The fixed-cutters efficiently scrape away the rock, enabling more efficient operation at higher rotation speeds, particularly in consolidated formations.
2. Specification:
Polycrystalline diamond compacts PDC bit in the Oil and Gas Industry PDC bits get their name from the polycrystalline diamond compacts used for their cutting structure. A PDC bit is a drill bit fitted with industrial diamond cutters instead of hardened metal teeth.
SPECIFICATION
Size : 17-1/2 inch (444.5 mm)
Drill Body Type : Steel Body
Blades Quantity : 5
Nozzles Quantity : 10
API Connection (in) : 6-5/8" REG
Gauge Length (In): 2

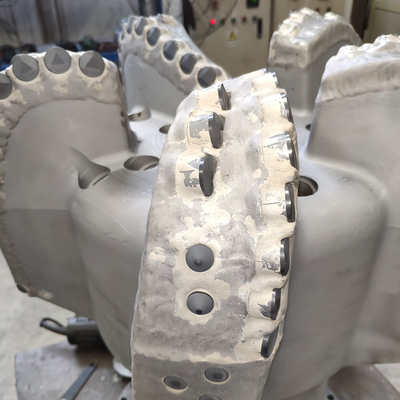

3 . Drilling Bit profile

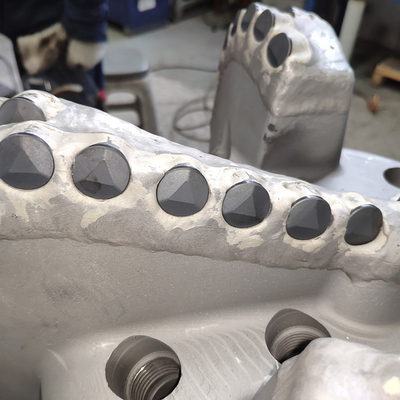

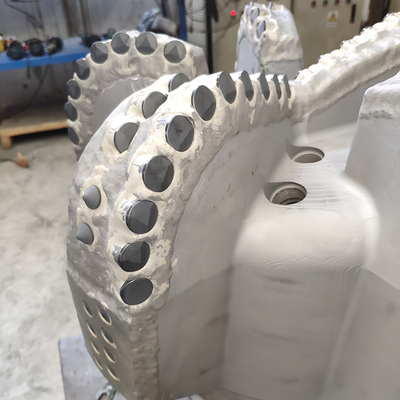

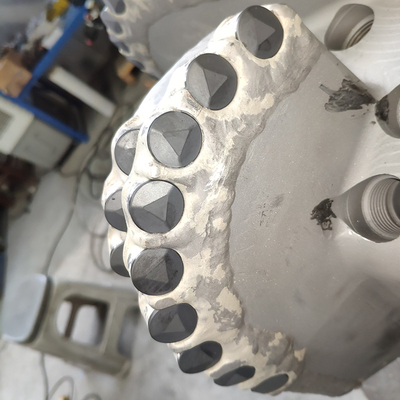

4 . Drill Bit PDC Cutters
Polycrystalline Diamond Composite (PDC) cutters are the main point of contact for a drill bit. PDC bits remove the rock mainly by shearing.
The PDC cutters are exposed to a lot of heating and cooling down the well, a very challenging environment.
PDC cutters that have lower thermal degradation and more thermal stability generally achieve higher ROP and increased wear resistance. So, optimizing the cutter is important.
5. Drill Bit Nozzles
Drill bit nozzles help clear the cutting area and cool the Polycrystalline Diamond Composite (PDC) cutters.
Effective placement of these nozzles along with the angle they are set at plays a critical role on how efficient the drill bit performs.
Fluid channels also complement nozzle placement to imp
