Drilling Rig PDC Drill Bit 5-7/8 " Diamond Drilling Tool Of Oilfield

Place of Origin China
Brand Name EGT
Certification API, AISI, ISO
Model Number 5875 PDC Drill Bit
Minimum Order Quantity Negotiation
Price USD 2000-20000 Unit
Packaging Details Wooden Case, Steel Box
Delivery Time 2 weeks
Payment Terms L/C, T/T, Western Union
Supply Ability 5000pcs/year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Diamond Bit Use Drilling Well
Material Diamond ,Alloy Steel ,Tungston Carbide Machine Type Drilling Tool
Processing Type Forging,Casting Application Water/oil/mining
Product Name PDC Cutters Advantage High-efficiency,High Strength
Name Pdc For Drilling Bits
Highlight

High Strength PDC Drill Bit

,

PDC Drill Bit 5-7/8 Inch

,

Oilfield PDC Drilling Bit

Leave a Message
Product Description

Drilling Rig PDC Drill Bit 5-7/8 " Diamond Drilling Tool Of Oilfield




1 . Descriptions:



What does PDC mean in drilling? Polycrystalline diamond materials, for use in polycrystalline diamond compact (PDC) bits, are one of the most important material advances for oil drilling tools in recent years. Fixed-head bits rotate as one piece and contain no separately moving parts.



PDC in drilling stands for Polycrystalline Diamond Compact, a revolutionary material utilized in PDC bits. These bits represent a significant advancement in oil drilling technology. Unlike traditional roller cone bits, fixed-head PDC bits rotate as a single unit without any separately moving parts. The polycrystalline diamond material used in PDC bits offers exceptional hardness and wear resistance, making them highly efficient in drilling through various rock formations. These bits are known for their durability, improved rate of penetration, and longer lifespan compared to conventional bits. Additionally, PDC bits are versatile and can be customized with different cutter configurations to optimize performance in specific drilling conditions.

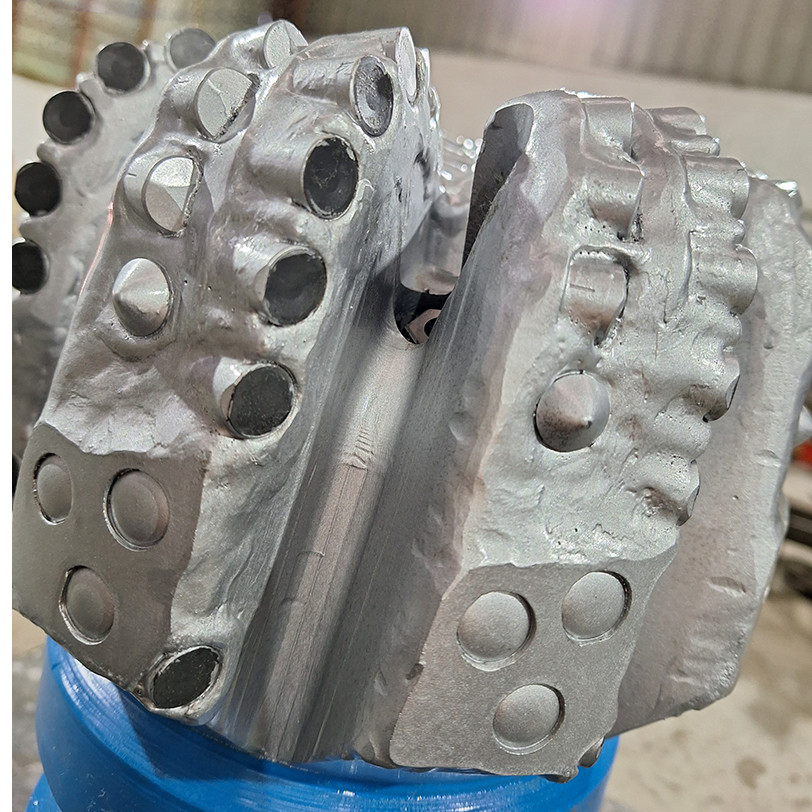

Drilling Rig PDC Drill Bit 5-7/8 "  Diamond Drilling Tool Of Oilfield 0



2. Specification:





Polycrystalline diamond compacts PDC bit in the Oil and Gas Industry PDC bits get their name from the polycrystalline diamond compacts used for their cutting structure. A PDC bit is a drill bit fitted with industrial diamond cutters instead of hardened metal teeth.



SPECIFICATION

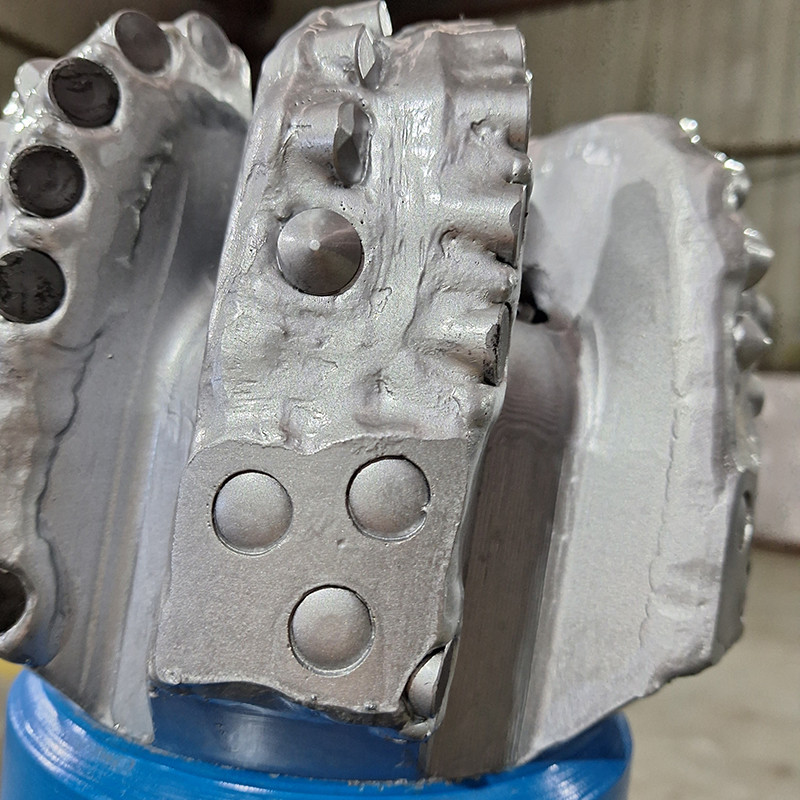

Drilling Rig PDC Drill Bit 5-7/8 "  Diamond Drilling Tool Of Oilfield 1





BIT DESIGN



size  5-7/8inch
IADC Code   S333
Body type   Steel Body
Blade Count   5
Primary Cutter Size   Ф16 mm
Gage Cutter   Ф16 mm
Nozzles   #10*5
Gauge Length   1.5 in
API Connection   3-1/3REG
Weight    28KG



OPERATIONAL PARAMETERS



Weight on Bit (KN):  22-112
RPM Range(Rotary):  100- DHM
Flow Rate(lps):  28- 39 LPM
Make-Up Torque(KN):  16-22 KN.M

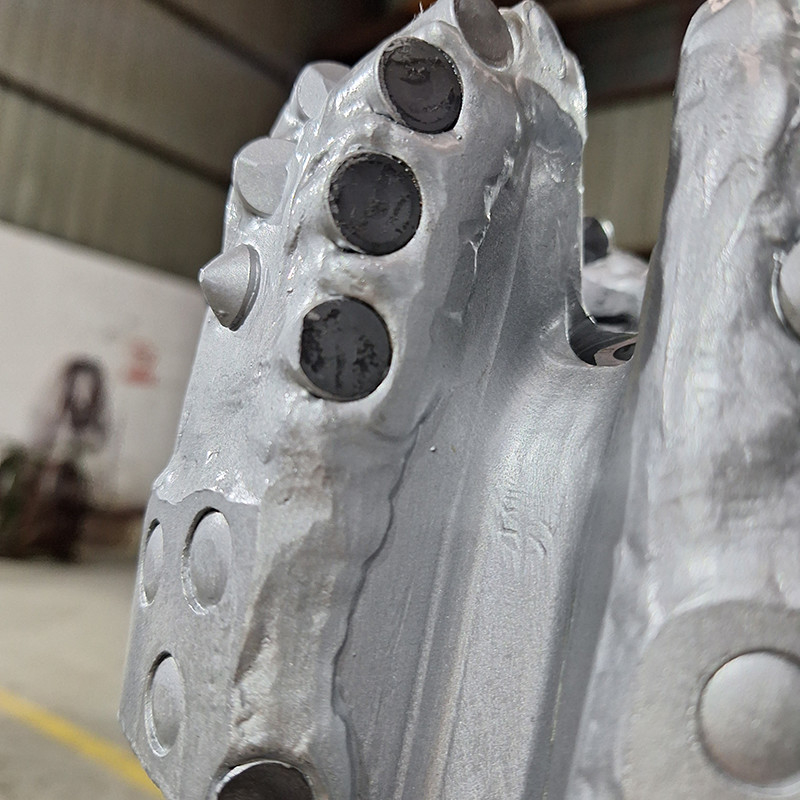

Drilling Rig PDC Drill Bit 5-7/8 "  Diamond Drilling Tool Of Oilfield 2

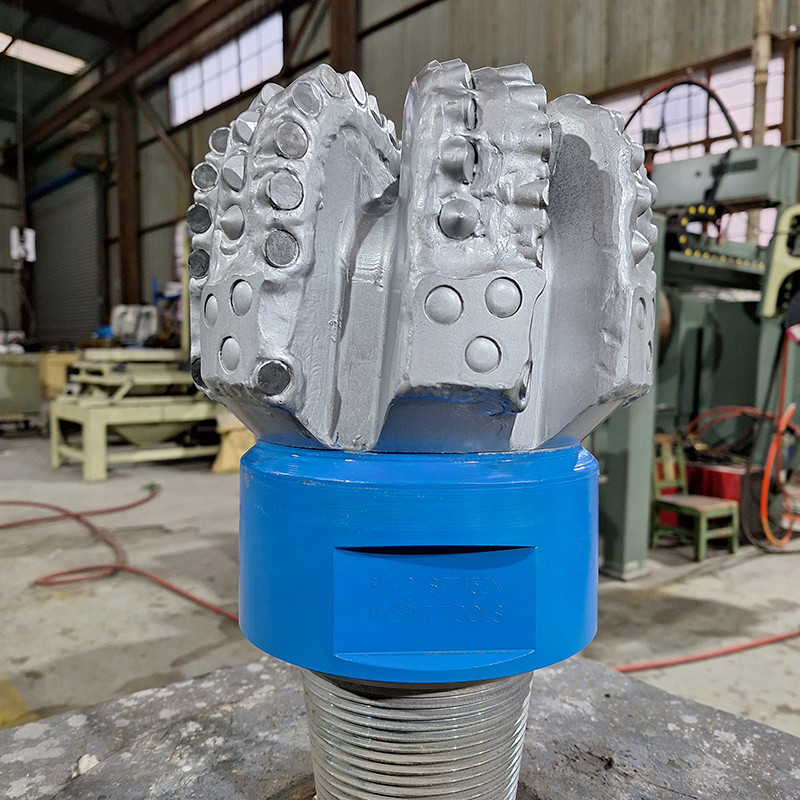

Drilling Rig PDC Drill Bit 5-7/8 "  Diamond Drilling Tool Of Oilfield 3





3 . Tricone  Bit profile

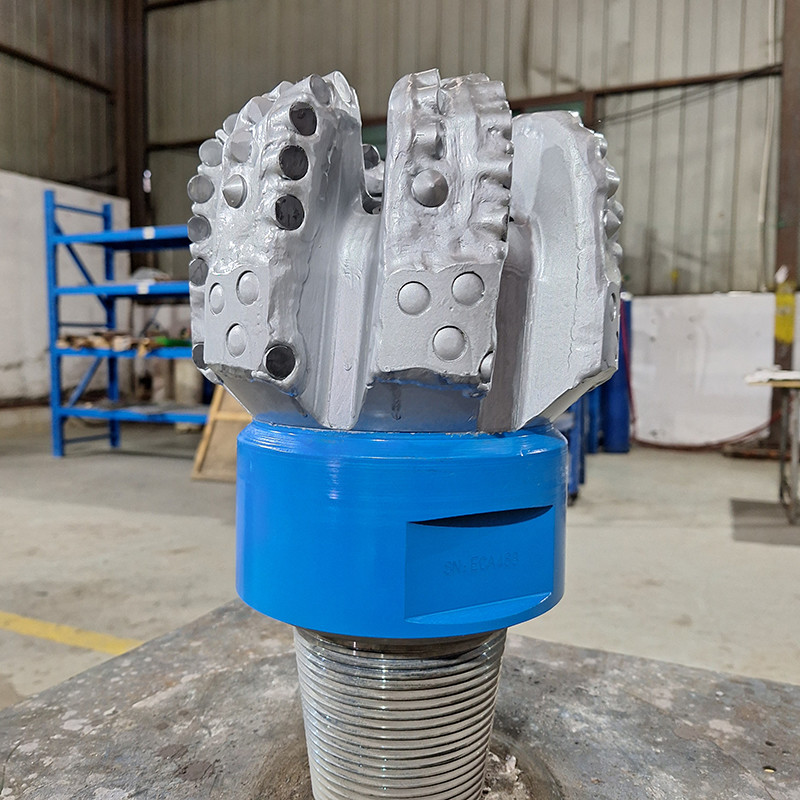

Drilling Rig PDC Drill Bit 5-7/8 "  Diamond Drilling Tool Of Oilfield 4


4 . PDC Drill Bit PDC Cutters



Polycrystalline Diamond Composite (PDC) cutters are the main point of contact for a drill bit. PDC bits remove the rock mainly by shearing.
The PDC cutters are exposed to a lot of heating and cooling down the well, a very challenging environment.
PDC cutters that have lower thermal degradation and more thermal stability generally achieve higher ROP and increased wear resistance. So, optimizing the cutter is important.





5. Drill Bit Nozzles

Drill bit nozzles help clear the cutting area and cool the Polycrystalline Diamond Composite (PDC) cutters.
Effective placement of these nozzles along with the angle they are set at plays a critical role on how efficient the drill bit performs.
Fluid channels also complement nozzle placement to imp

Drilling Rig PDC Drill Bit 5-7/8 "  Diamond Drilling Tool Of Oilfield 5
