PDC Drill Bit 8-1/2 Inch Diamond Drilling Bit 5 Blades Of Gas Oil Water Well
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Diamond Bit | Use | Drilling Well |
|---|---|---|---|
| Material | Diamond ,Alloy Steel ,Tungston Carbide | Machine Type | Drilling Tool |
| Processing Type | Forging,Casting | Application | Water/oil/mining |
| Product Name | PDC Cutters | Size | Required |
| Color | Request | Advantage | High-efficiency,High Strength |
| Blades | 5 Blades | Market | All Over The Word |
| Packing | Wooden Box,steel Box | Name | Pdc For Drilling Bits |
| Rock Formation | F<8 | ||
| Highlight | 5 Blades PDC Diamond Bit,PDC Diamond Drilling Bit,Gas Well Steel PDC Drill Bits |
||
Product Description

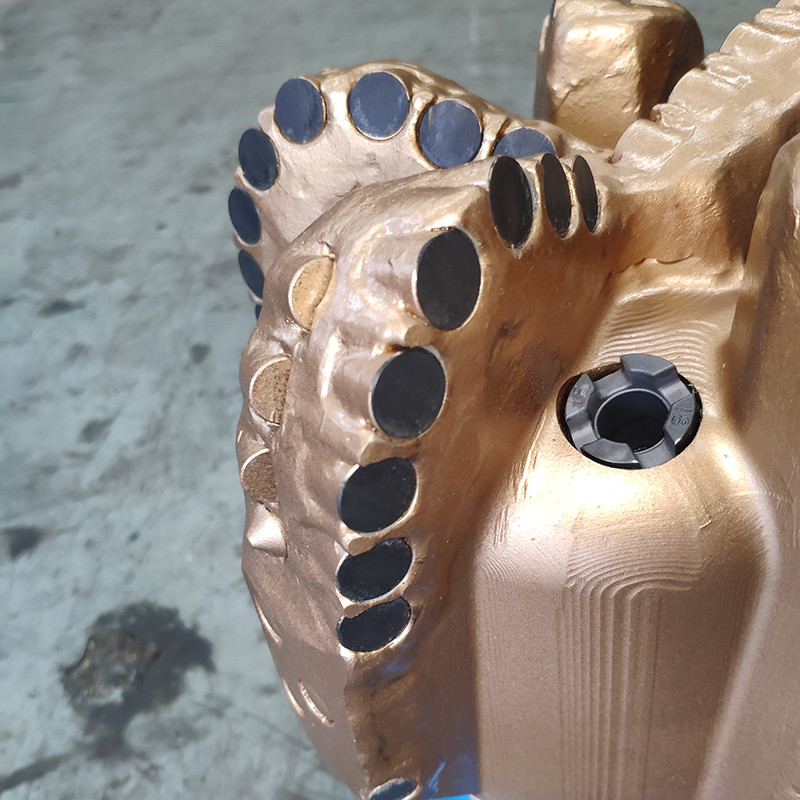

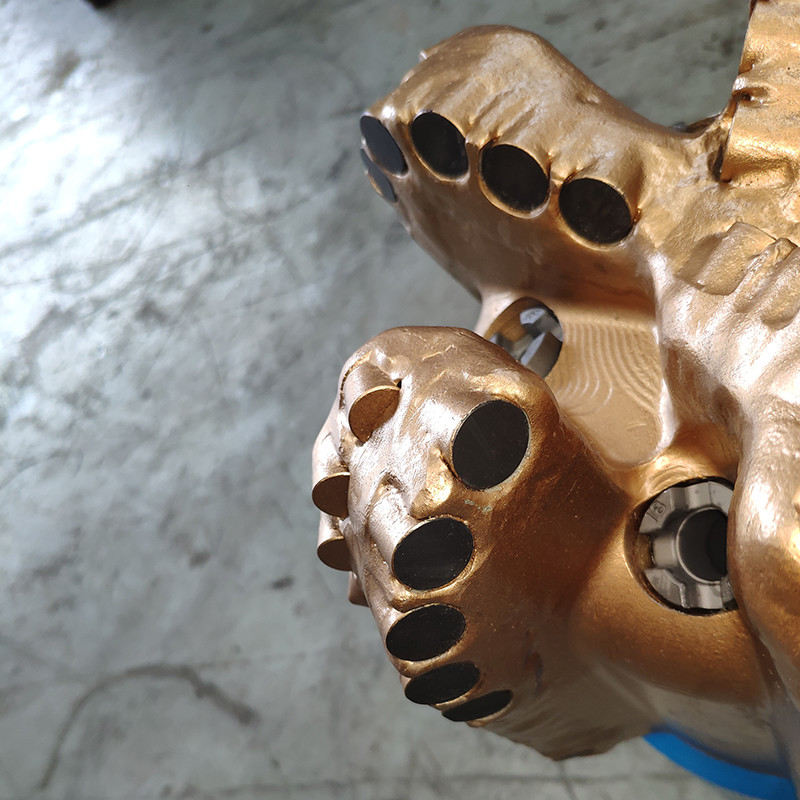

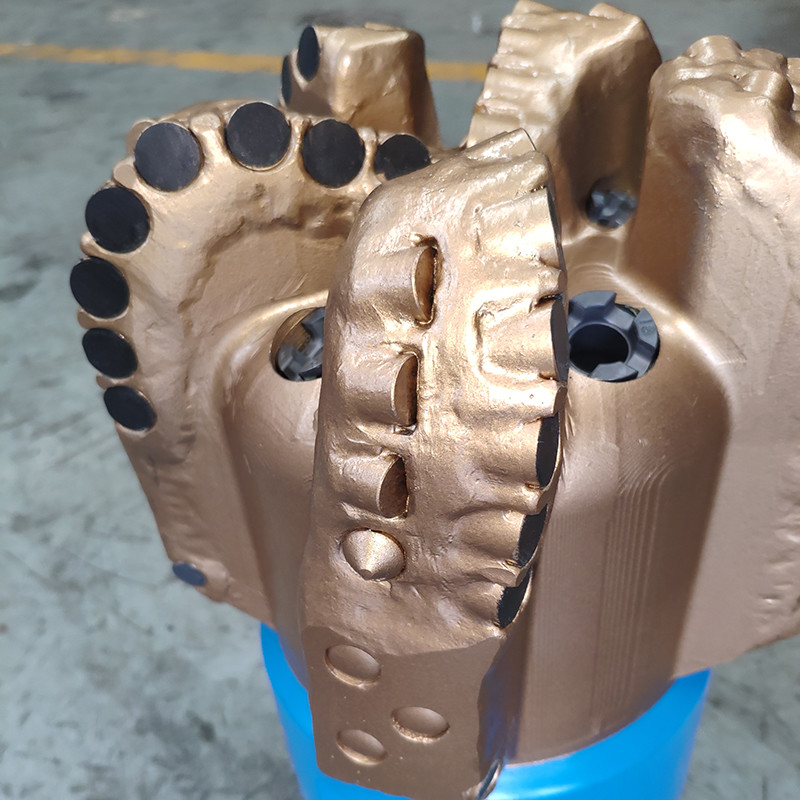

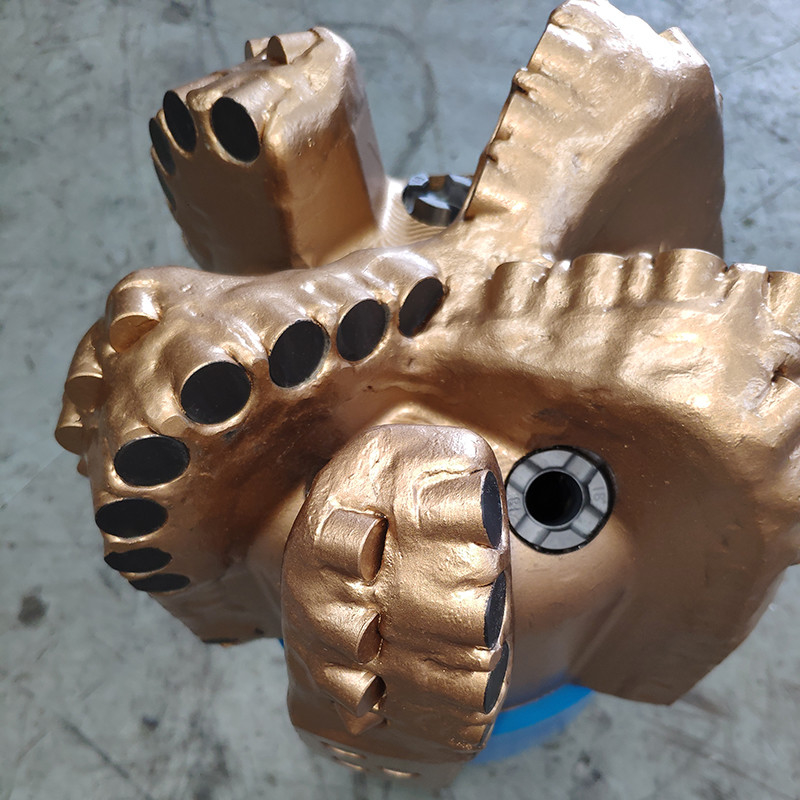

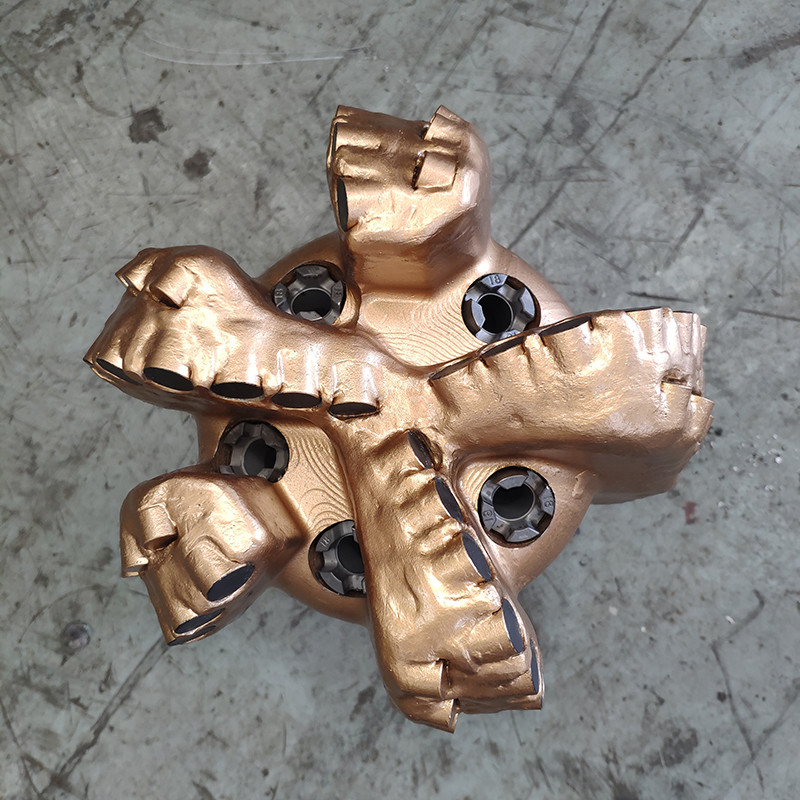

Diamond Drilling Bit 8-1/2Inch PDC 5 Blades of Gas Oil Water Well
1 . Descriptions:
Polycrystalline diamond compact (PDC) drill bits are advanced drilling tools that utilize man-made diamond cutters, which can be embedded in either steel or matrix body material. These innovative drill bits have transformed the drilling industry due to their versatility and ability to achieve high rates of penetration (ROP). Unlike traditional roller cones, PDC drill bits are comprised of a single solid body without any movable components. The fixed-cutters on these bits efficiently shave away rock formations, allowing for faster rotation speeds and improved efficiency, particularly in consolidated geological formations.
2. Specification:
Polycrystalline diamond compacts PDC bit in the Oil and Gas Industry PDC bits get their name from the polycrystalline diamond compacts used for their cutting structure. A PDC bit is a drill bit fitted with industrial diamond cutters instead of hardened metal teeth.
SPECIFICATION
Size : 5-7/8inch (149.2mm)
Drill Body Type : Steel Body
Blades Quantity : 7
Nozzles Quantity : 4
API Connection (in) : 3-1/2" REG
Gauge Length (In): 2
OPERATIONAL PARAMETERS
| Specification | Data |
| Size : | 8-1/2inch (215.9mm) |
| Drill Body Type | Steel Body |
| Blades Quantity | 7 |
| Nozzles Quantity | 4 |
| API Connection (in) | 3-1/2" REG |
| Gauge Length (In) | 2 |
| OPERATIONAL PARAMETERS |
Drill Speed: 100 RPM<br> Weight on Bit: 10,000 lbs<br> Mud Weight: 10 ppg<br> Formation Type: Hard Formation |
3 .Tricone Bit profile
4 . PDC Drill Bit PDC Cutters
Polycrystalline Diamond Composite (PDC) cutters are the main point of contact for a drill bit. PDC bits remove the rock mainly by shearing.
The PDC cutters are exposed to a lot of heating and cooling down the well, a very challenging environment.
PDC cutters that have lower thermal degradation and more thermal stability generally achieve higher ROP and increased wear resistance. So, optimizing the cutter is important.
5. PDC Drill Bit Nozzles
Drill bit nozzles help clear the cutting area and cool the Polycrystalline Diamond Composite (PDC) cutters.
Effective placement of these nozzles along with the angle they are set at plays a critical role on how efficient the drill bit performs.
Fluid channels also complement nozzle placement to imp
