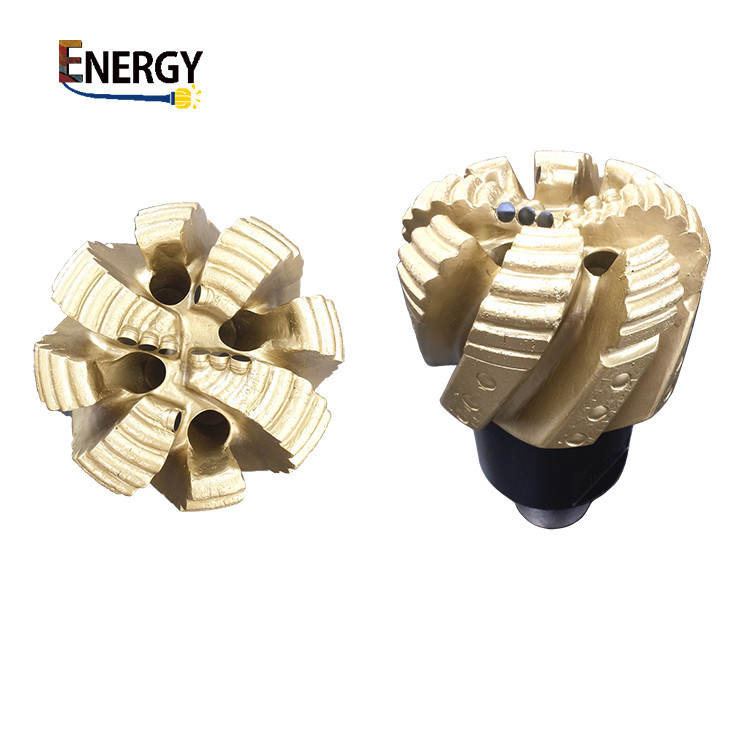

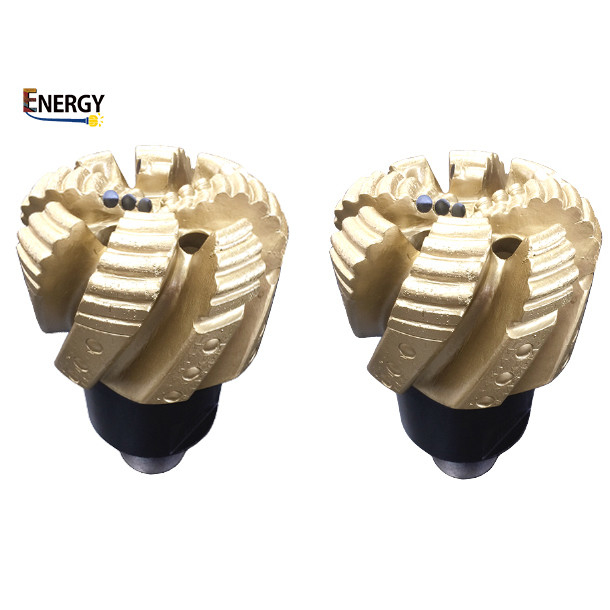

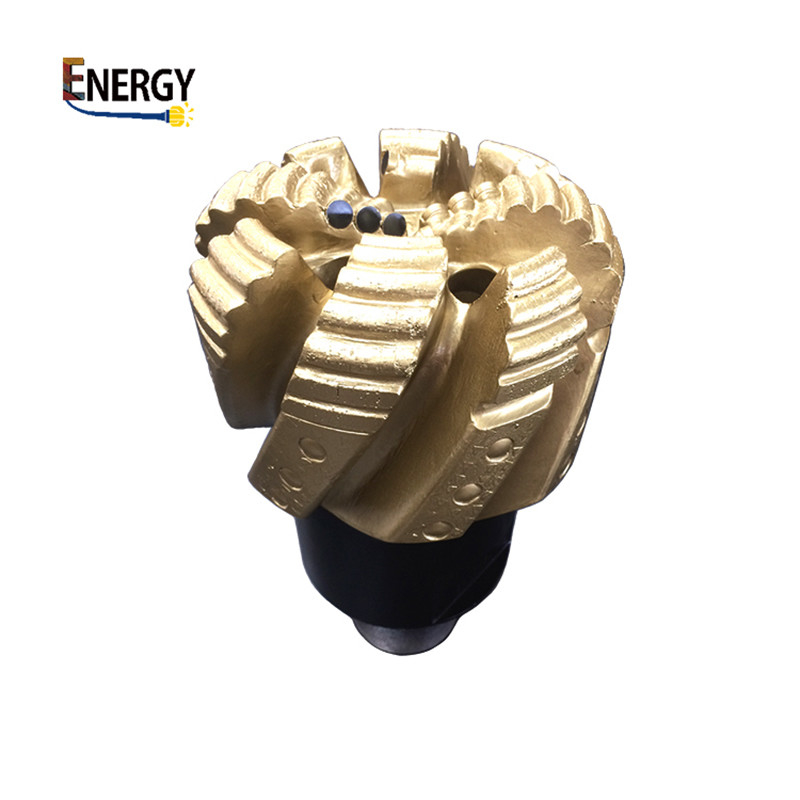

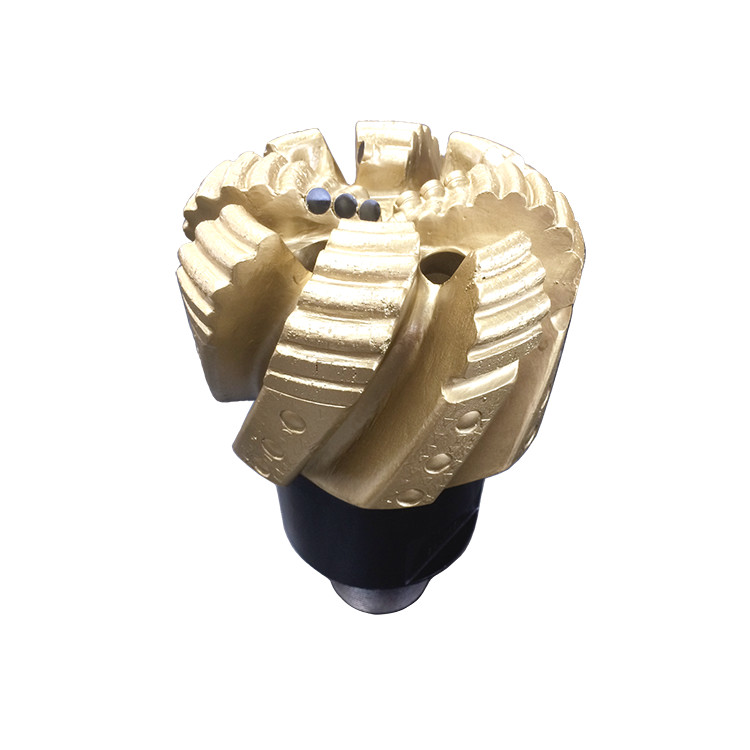

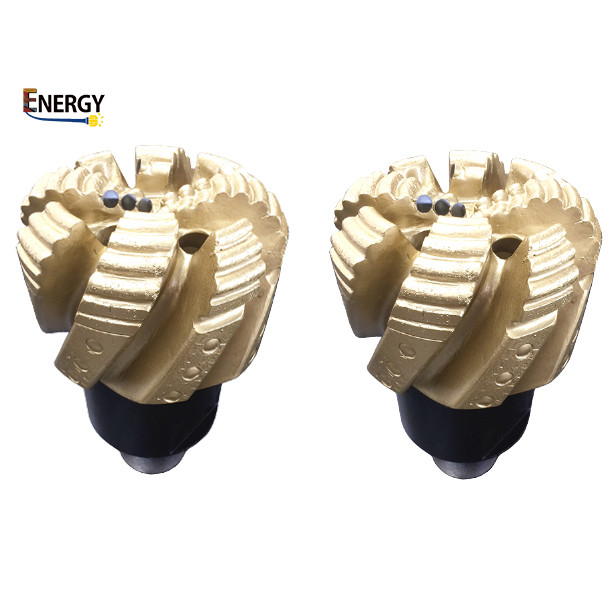

Impregnation PDC Drill Bit 8-1/2 Inch Of Oil And Gas Drilling Well
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Diamond Pdc Bit | Use | Well Drilling,oil |
|---|---|---|---|
| Material | Diamond | Machine Type | Drilling Tool |
| Processing Type | Forging,Casting | Application | Water/oil/mining |
| Product Name | PDC Cutters | Size | Required |
| Color | Request | Advantage | High-efficiency,High Strength |
| Blades | 8 Blades | Market | All Over The Word |
| Packing | Wooden Box,steel Box | Name | Pdc For Drilling Bits |
| Rock Formation | F<8 | ||
| Highlight | Oil Well Drilling Bit 8 Blades,Impregnation PDC Drill Bit,Gas Well PDC Drill Bit |
||
Product Description
PDC Drilling Bit 8 Inch 6 Blade PDC Cutter Of Drilling Rig Bit
1 . Descriptions:
What does PDC mean in drilling? Polycrystalline diamond materials, for use in polycrystalline diamond compact (PDC) bits, are one of the most important material advances for oil drilling tools in recent years. Fixed-head bits rotate as one piece and contain no separately moving parts.
- Cutter density
- Cutter size or type
- Bit profile
- Cutter Blades
All of our Drill bits are fit for API standard and used in the drilling Industry. The PDC drill bits size 3~22inch with 3~9Blades are available. And different classification cutter are optional according to your budget .
2. Specification:
Polycrystalline diamond compacts PDC bit in the Oil and Gas Industry PDC bits get their name from the polycrystalline diamond compacts used for their cutting structure. A PDC bit is a drill bit fitted with industrial diamond cutters instead of hardened metal teeth.
| Specification | |
| Size | 8 1/2 inch (215.9mm) |
| Drill Body Type | Steel Body |
| Nozzles Quantity | 4 |
| API Connection (in) | 4-1/2" REG |
| Gauge Length (In) | 2 |
| OPERATIONAL PARAMETERS | |
| Weight on Bit (KN) | 5 ~30 |
| RPM Range (Rotary) | 60 - DHM |
| Flow Rate (lps) | 400 - 500 LPM |
| Make-Up Torque (KN) | 17 - 26.4 KN.M |

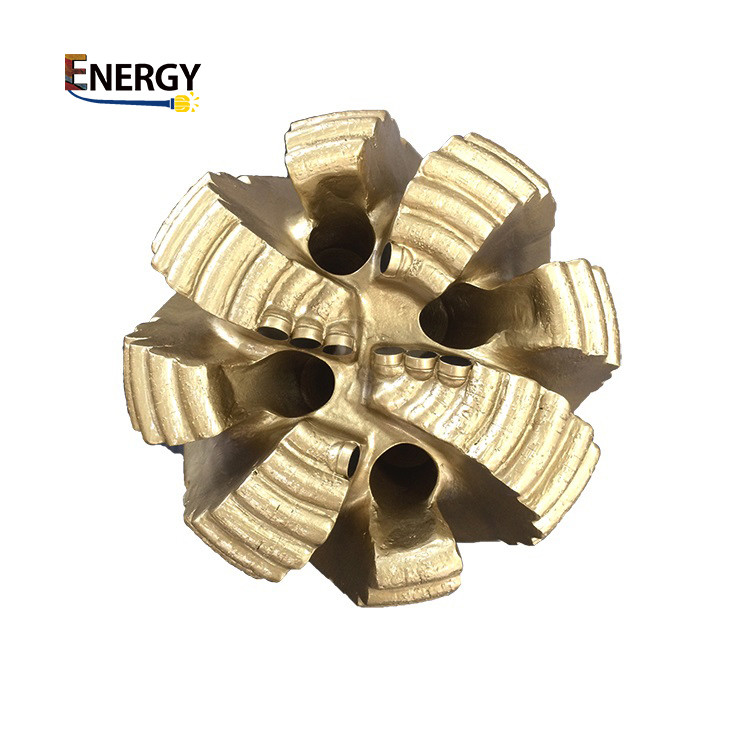

3 . Bit profile
4 . Drill Bit PDC Cutters
Polycrystalline Diamond Composite (PDC) cutters are the main point of contact for a drill bit. PDC bits remove the rock mainly by shearing.
The PDC cutters are exposed to a lot of heating and cooling down the well, a very challenging environment.
PDC cutters that have lower thermal degradation and more thermal stability generally achieve higher ROP and increased wear resistance. So, optimizing the cutter is important.
5. Drill Bit Nozzles
Drill bit nozzles help clear the cutting area and cool the Polycrystalline Diamond Composite (PDC) cutters.
Effective placement of these nozzles along with the angle they are set at plays a critical role on how efficient the drill bit performs.
Fluid channels also complement nozzle placement to imp
