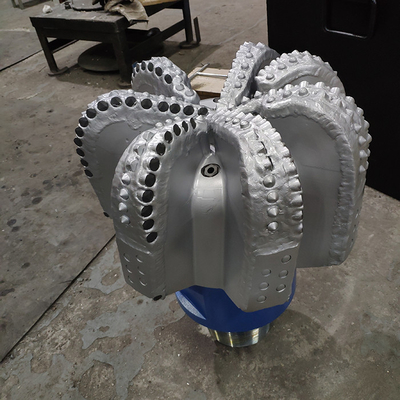

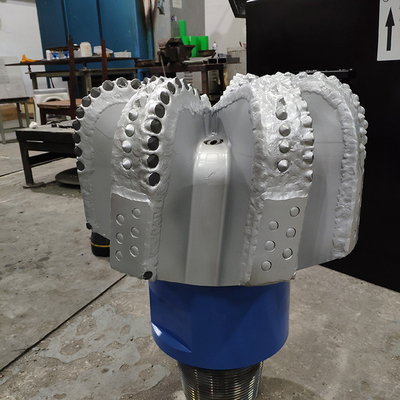

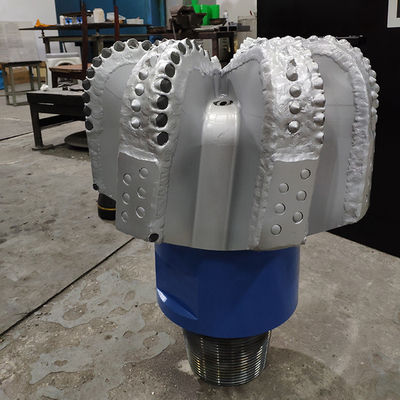

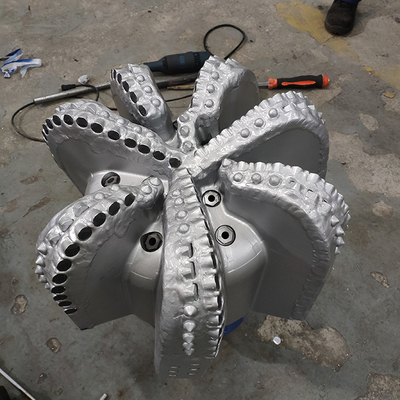

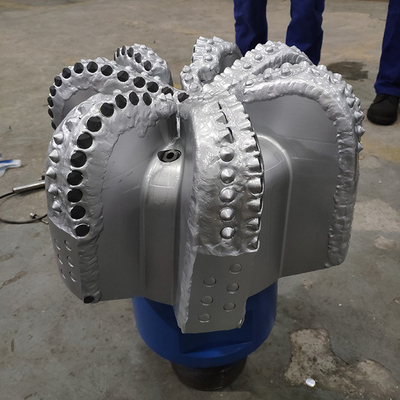

API Rock Bit 17 Inch 7 Blades PDC Button Bit Of Well Drill Bit
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | PDC Cutter Bit | Use | Oil ,gas ,minig ,drilling |
|---|---|---|---|
| Material | Diamond ,Alloy Steel ,Tungston Carbide | Processing Type | Forging ,Casting |
| Application | Rock Drill Of Oil ,mining ,gas | Advantage | High-efficiency , High Strength |
| Usage | Oil ,mining ,gas | Name | Oil Well Drilling Pdc Drill Bit |
| Highlight | Diamond PDC Bit 17 Inch,17 Inch Diamond PDC Drill Bit,Large Size Diamond PDC Bit |
||
Product Description
API Rock Bit 17 Inch 7 Blades PDC Button Bit Of Well Drill Bit
1. Description :
Steel is the opposite of matrix. It can of withstanding high impact loads, but is softer and lacks protective features. The strength and ductility of steel give steel-bit bodies high impact resistance.
Steel bodies are considerably stronger than matrix bodies.
A beneficial feature of steel bits is that they can easily be rebuilt a number of times because worn or damaged cutters can be replaced rather easily. This is a particular advantage for operators in low-cost drilling environments.
2. Specification
|
SPECIFICATION
|
|
| Size : | 17 " (431.8mm) |
| Drill Body Type : | Steel Body |
| Blades Quantity : | 7 |
| Nozzles Quantity : | 11 |
| API Connection (in) : | 7-5/8" REG |
| Gauge Length (In): | 3.5 |
|
OPERATIONAL PARAMETERS
|
|
| Weight on Bit (KN): | 67- 200 |
| RPM Range(Rotary): | 100-DTH |
| Flow Rate(lps): | 57- 76 |
| Make-Up Torque(KN): | 83-91 |
3. Bit Profile
4. Drill Bit PDC Cutters
Polycrystalline Diamond Composite (PDC) cutters are the main point of contact for a drill bit. PDC bits remove the rock mainly by shearing.
The PDC cutters are exposed to a lot of heating and cooling down the well, a very challenging environment.
PDC cutters that have lower thermal degradation and more thermal stability generally achieve higher ROP and increased wear resistance. So, optimizing the cutter is important.
5 . Drill Bit Nozzles
Drill bit nozzles help clear the cutting area and cool the Polycrystalline Diamond Composite (PDC) cutters.
Effective placement of these nozzles along with the angle they are set at plays a critical role on how efficient the drill bit performs.
Fluid channels also complement nozzle placement to improve the clearing of cuttings.
6. Matrix Body
Matrix is a very hard, rather brittle complex material containing tungsten carbide grains bonded with a softer, tougher, metallic binder.
The hardness of a matrix-body PDC has the benefit of not being susceptible to abrasion and erosion. It is effective in tolerating high compressive loads, but, compared with steel, has low resistance to impact loading.
Matrix-body PDC bits are relatively diverse, because matrix is a compounded material.
In environments in which body erosion is likely to cause a bit to fail, matrix-body PDC are the preference over steel-body bits. For diamond-impregnated bits, only matrix-body construction can be used.
