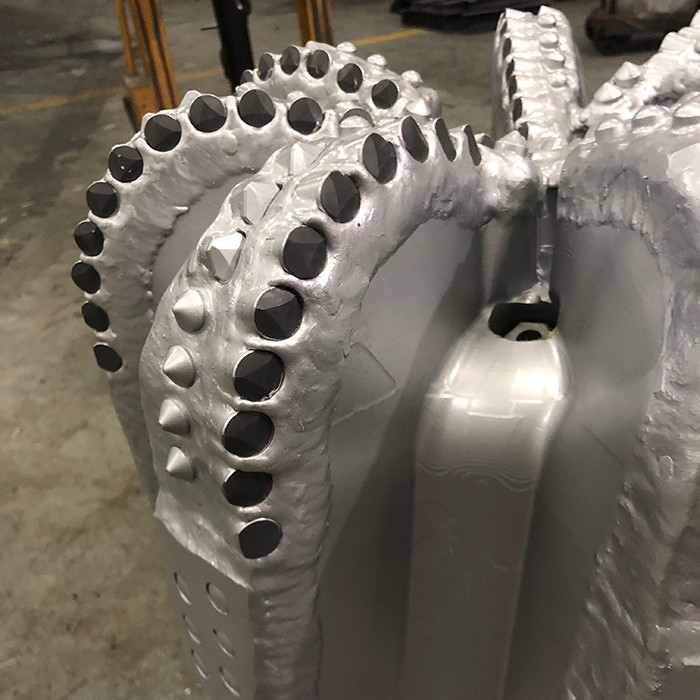

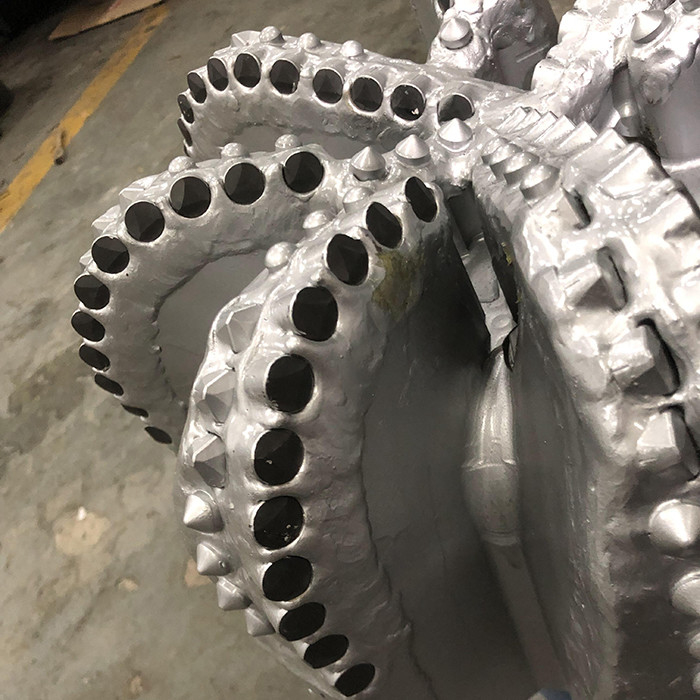

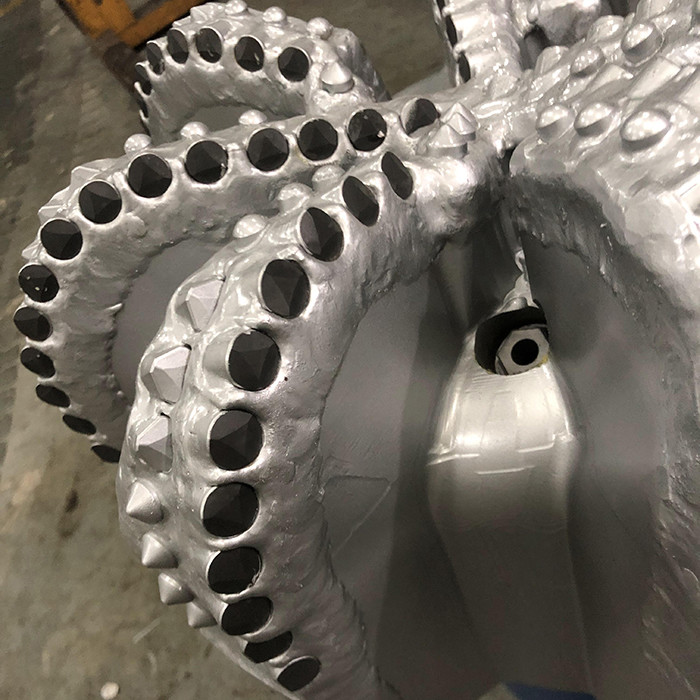

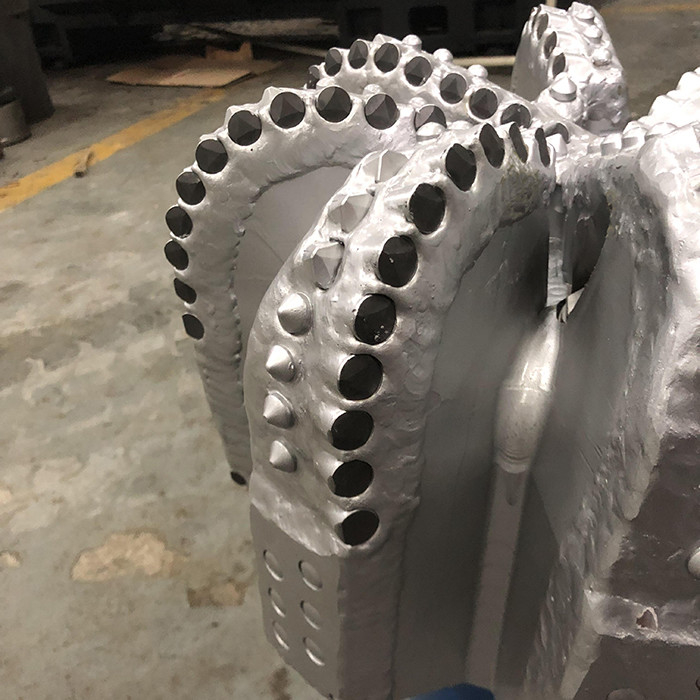

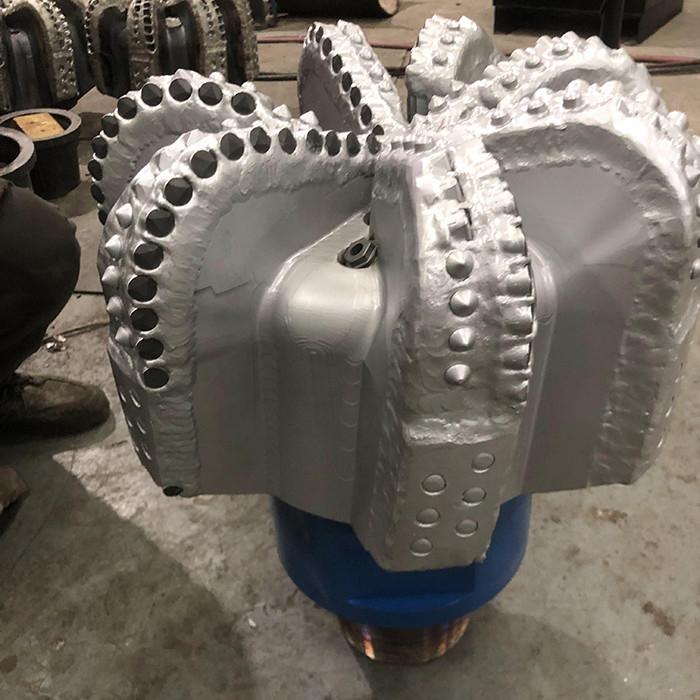

PDC Bit API Spec 12-1/2 Inch Diamond Drilling Tool For Oilfield Drilling Well
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Steel Body Diamond Drill Bit | Use | Oil ,gas ,minig ,drilling ,water Well |
|---|---|---|---|
| Material | Diamond ,Alloy Steel ,Tungston Carbide | Machine Type | CNC And Welding And Forged |
| Processing Type | Forging ,Casting | Application | Hole Open , Bore Hole |
| Size | 12-1/2"(317.5mm) | Color | Customer Requirement |
| Advantage | High-efficiency , High Strength | Cutter Diameter | 16mm And 13mm |
| Usage | Oil ,mining ,gas | Blades | 7 Blades |
| Market | Global | Packing | Wooden Box Or Steel Box |
| Name | Oil Well Drilling Pdc Drill Bit | Rock Formation | F<8 |
| Nozzles | 8 | ||
| Highlight | 12-1/2 Inch PDC Bit,Diamond Drilling Tool PDC Bit,Diamond Pdc Drill Bit |
||
Product Description
PDC Bit API Spec 12-1/2 Inch Diamond Drilling Tool For Oil Drilling Well
1 . Descriptions:
A beneficial feature of steel body PDC bits is that they can easily be rebuilt a number of times because worn or damaged cutters can be replaced rather easily. This is a particular advantage for operators in low-cost drilling environments. So steel Body PDC is widely used on the drill well .
2. Specification:
| SPECIFICATION | |
| Size : | 12 -1/2" (317.5mm) |
| Drill Body Type : | Steel Body |
| Blades Quantity : | 7 |
| Nozzles Quantity : | 8 |
| API Connection (in) : | 6 -5/8" REG |
| Gauge Length (In): | 3.5 |
| OPERATIONAL PARAMETERS | |
| Weight on Bit (KN): | 89-178 kN |
| RPM Range(Rotary): | 100-DHM |
| Flow Rate(lps): | 48-57 LPS |
| Make-Up Torque(KN): | 51-56KN.M |
3 . PDC Bit profile
4 . PDC Drill Bit Cutters
Polycrystalline Diamond Composite (PDC) cutters are the main point of contact for a PDC drill bit. PDC bits remove the rock mainly by shearing.
The PDC cutters are exposed to a lot of heating and cooling down the well, a very challenging environment.
PDC cutters that have lower thermal degradation and more thermal stability generally achieve higher ROP and increased wear resistance. So, optimizing the cutter is important.
5. PDC Drill Bit Nozzles
PDC Drill bit nozzles help clear the cutting area and cool the Polycrystalline Diamond Composite (PDC) cutters.
Effective placement of these nozzles along with the angle they are set at plays a critical role on how efficient the drill bit performs.
Fluid channels also complement nozzle placement to improve the clearing of cuttings.
6. Steel Body PDC Bits
Steel body of PDC Bit is the opposite of matrix body. It can of withstanding high impact loads, but is softer and lacks protective features. The strength and ductility of steel give steel-bit bodies high impact resistance.
Steel bodies are considerably stronger than matrix bodies.
A beneficial feature of steel bits is that they can easily be rebuilt a number of times because worn or damaged cutters can be replaced rather easily. This is a particular advantage for operators in low-cost drilling environments.
Polycrystalline diamond compact (PDC) drill bits are different than roller cones in that they are one piece bodies with no moving parts. The fixed-cutters shred the rock, so the bit is able to operate with higher rotation speeds more efficiently in consolidated formations.
