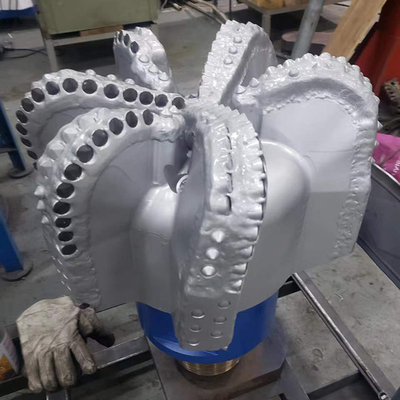

Drill Bit Diamond PDC Rock Bit Of API Spec

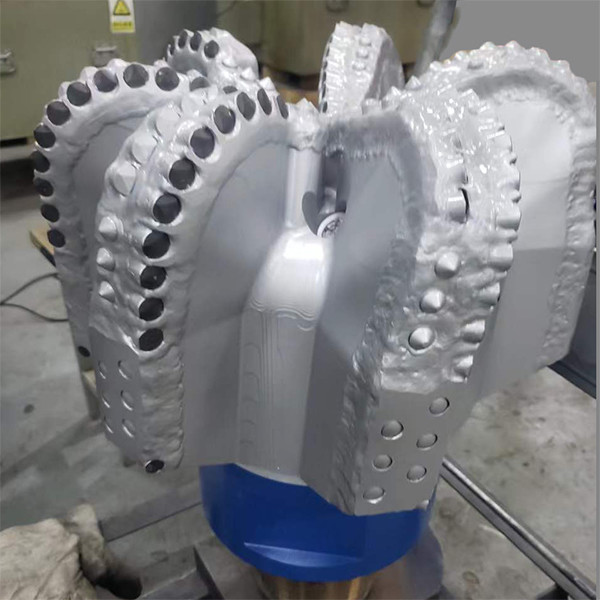

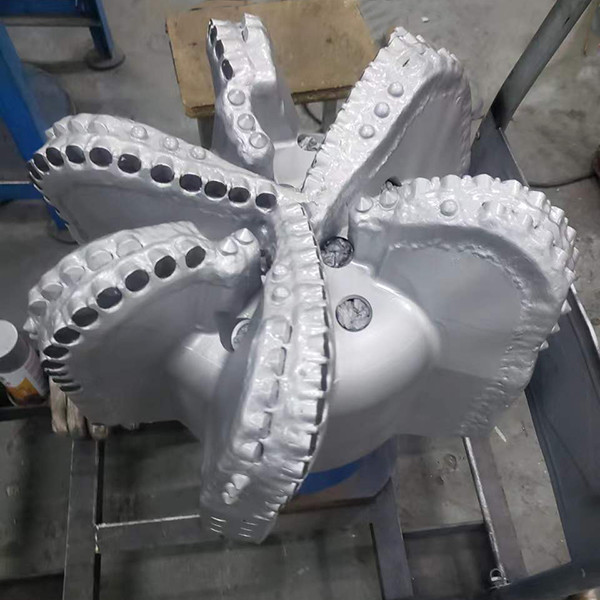

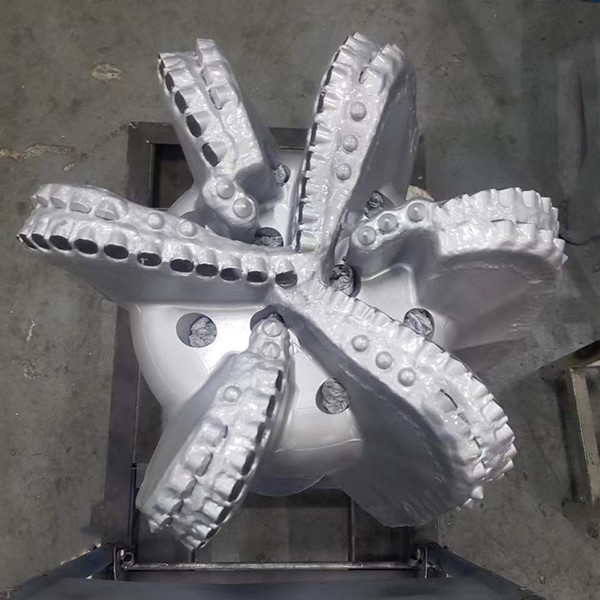

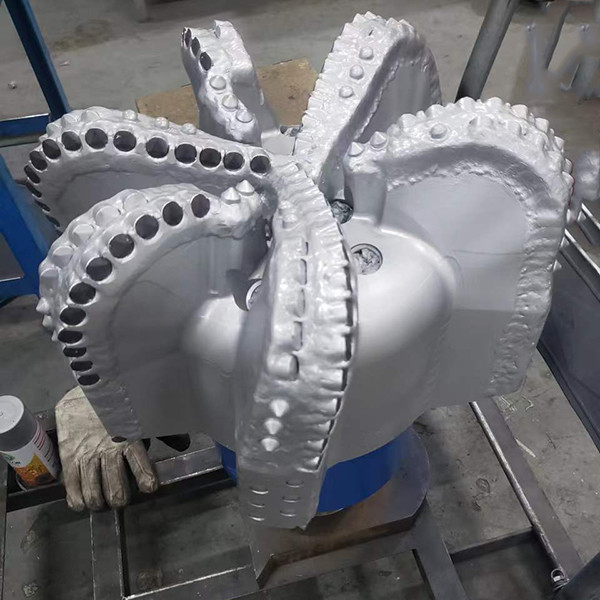

Steel Body PDC Rock Bit Of API Spec

1 . Descriptions:

 In the oil and gas industry, a PDC drill bit is a tool designed to produce a generally cylindrical hole (wellbore) in the earth's crust by the rotary drilling method for the discovery and extraction of hydrocarbons such as crude oil and natural gas. Then The PDC Drill bit is more higher performance than other drill bit which is made by tungston cardie and Polycrystalline Diamond Composite which is  increased erosion and abrasion resistance.

According to the International Association of Drilling Contractors (IADC), the Fixed-cutter bit classification composed of four characters that designate:

• PDC Drill Bit  Body material
• PDC Drill Bit  Cutter density
• PDC Drill Bit  Cutter size or type
• PDC Drill Bit profile

2. Specification:

3 .  PDC Bit profile

4  . PDC Drill Bit PDC Cutters

Polycrystalline Diamond Composite (PDC) cutters are the main point of contact for a drill bit. PDC bits remove the rock mainly by shearing.

The PDC cutters are exposed to a lot of heating and cooling down the well, a very challenging environment.

PDC cutters that have lower thermal degradation and more thermal stability generally achieve higher ROP and increased wear resistance. So, optimizing the cutter is important.

5. PDC Drill Bit Nozzles

PDC Drill bit nozzles help clear the cutting area and cool the Polycrystalline Diamond Composite (PDC) cutters.

Effective placement of these nozzles along with the angle they are set at plays a critical role on how efficient the drill bit performs.

Fluid channels also complement nozzle placement to improve the clearing of cuttings.

6. Steel Body PDC Bits

Steel body of PDC Drill Bit  is the opposite of matrix body of PDC Drill Bit . It can of withstanding high impact loads, but is softer and lacks protective features. The strength and ductility of steel give steel-bit bodies high impact resistance.

Steel bodies are considerably stronger than matrix bodies.

A beneficial feature of steel bits is that they can easily be rebuilt a number of times because worn or damaged cutters can be replaced rather easily. This is a particular advantage for operators in low-cost drilling environments.

Polycrystalline diamond compact (PDC) drill bits are different than roller cones in that they are one piece bodies with no moving parts. The fixed-cutters shred the rock, so the bit is able to operate with higher rotation speeds more efficiently in consolidated formations.
