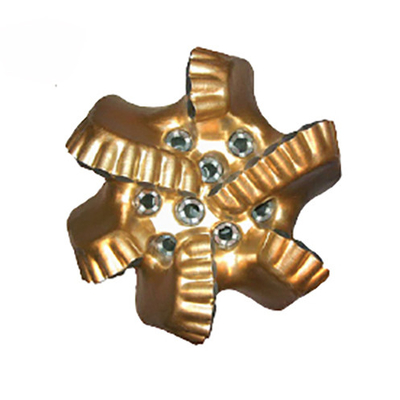

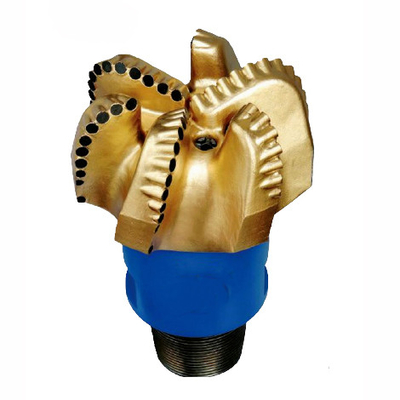

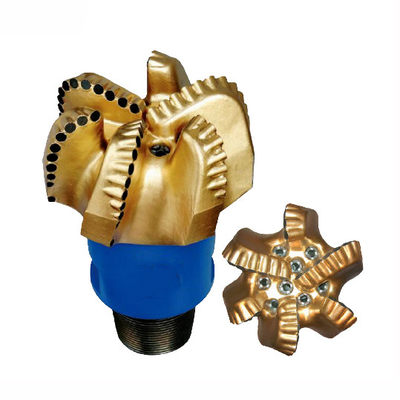

Oil Well Drilling Bit 13 inch Matix Body PDC Drill Bit of Pilot Hole Bit
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Machine Type | Drilling Tool | Processing Type | Casting |
|---|---|---|---|
| Size | 13 -1/2 "(342.9mm) | Color | Customer Requirement |
| Cutter Diameter | 19mm | Blade | 6 |
| Market | Global | Packing | Wooden Box Or Steel Box |
| Rock Formation | F<8 | ||
| Highlight | Oil Well Matrix PDC Drill Bit,8 Nozzles Polycrystalline Diamond Bit,Matrix PDC Drill Bit 8 Nozzles |
||
Product Description
Oil Well Drilling Bit 13 inch Matix Body PDC Drill Bit
1. Description :
Matrix is desirable as a bit material, because its hardness is resistant to abrasion and erosion. It is capable of withstanding relatively high compressive loads, but, compared with steel, has low resistance to impact loading. Matrix is relatively heterogeneous, because it is a composite material.
So the Matrix body of PDC drill bit have the same character .
According to the International Association of Drilling Contractors (IADC), the Fixed-cutter bit classification composed of four characters that designate:
- Body material.
- Cutter density.
- Cutter size or type.
- Bit profile
All of our Drill bits are fit for API standard and used in the drilling Industry.
The PDC drill bits size 3~22inch with 3~9Blades are available. And different classification cutter are optional according to your budget .
2. Specification
| SPECIFICATION | |
| Size : | 13" (330.2mm) |
| Drill Body Type : | Matrix Body |
| Blade Quantity : | 6 |
| Nozzle Quantity : | 8 |
| API Connection (in) : | 6 -5/8" REG |
| Gauge Length (In): | 2.5 |
| OPERATIONAL PARAMETERS | |
| Weight on Bit (KN): | 20-50 |
| RPM Range (Rotary): | 60-DHM |
| Flow Rate (lps): | 700-900 |
| Make-Up Torque (KN): | 38- 43 |
3. Bit Profile
4. Drill Bit PDC Cutter
Polycrystalline Diamond Composite (PDC) cutters are the main point of contact for a drill bit. PDC bits remove the rock mainly by shearing.
The PDC cutters are exposed to a lot of heating and cooling down the well, a very challenging environment.
PDC cutters that have lower thermal degradation and more thermal stability generally achieve higher ROP and increased wear resistance. So, optimizing the cutter is important.
5 . Drill Bit Nozzle
Drill bit nozzles help clear the cutting area and cool the Polycrystalline Diamond Composite (PDC) cutters.
Effective placement of these nozzles along with the angle they are set at plays a critical role on how efficient the drill bit performs.
Fluid channels also complement nozzle placement to improve the clearing of cuttings.
6. Matrix Body
Matrix is a very hard, rather brittle complex material containing tungsten carbide grains bonded with a softer, tougher, metallic binder.
The hardness of a matrix-body PDC has the benefit of not being susceptible to abrasion and erosion. It is effective in tolerating high compressive loads, but, compared with steel, has low resistance to impact loading.
Matrix-body PDC bits are relatively diverse, because matrix is a compounded material.
In environments in which body erosion is likely to cause a bit to fail, matrix-body PDC are the preference over steel-body bits. For diamond-impregnated bits, only matrix-body construction can be used.
