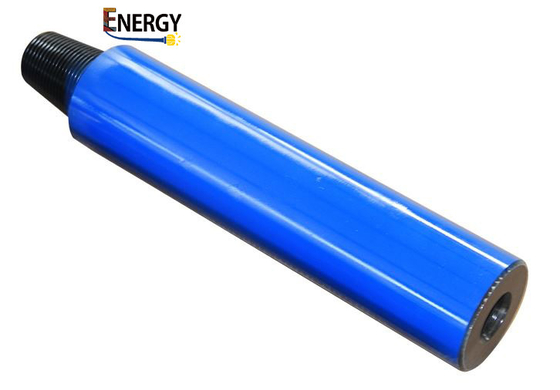

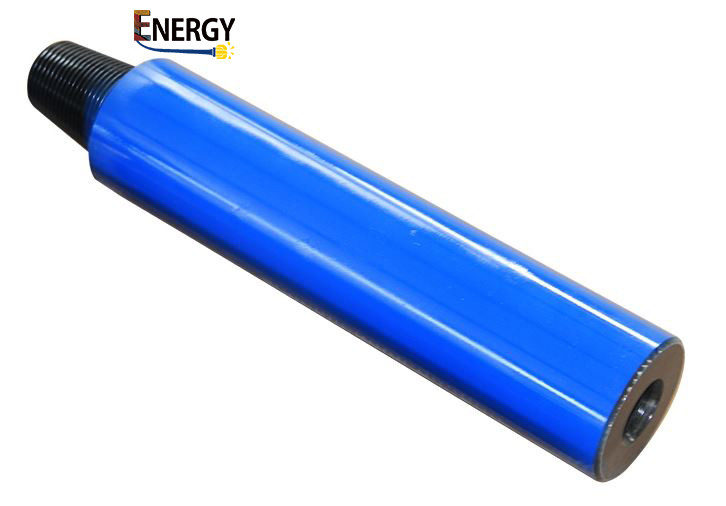

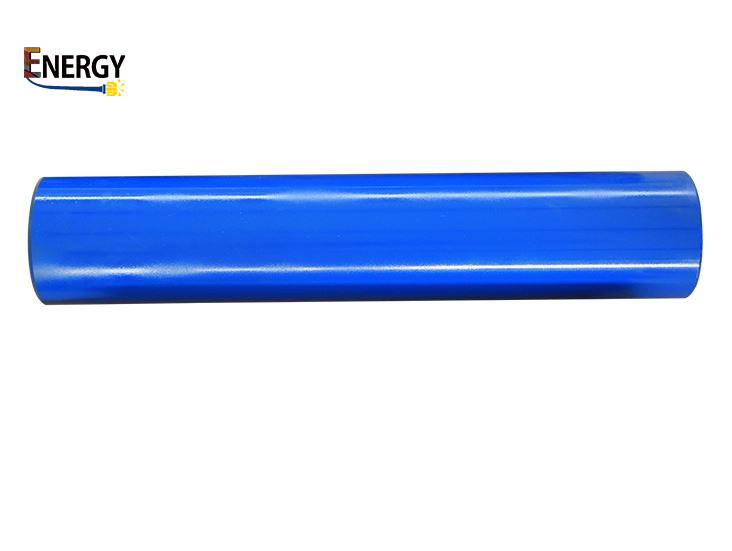

API Standard Oil Mining Crossover Sub Drilling Lifting Sub

  • API Standard Oil Mining Crossover Sub Drilling Lifting Sub
  • API Standard Oil Mining Crossover Sub Drilling Lifting Sub
  • API Standard Oil Mining Crossover Sub Drilling Lifting Sub
  • API Standard Oil Mining Crossover Sub Drilling Lifting Sub
Place of Origin China
Brand Name EN
Certification API . ISO
Model Number 3200
Minimum Order Quantity 10 Pcs
Price USD50/PCS
Packaging Details Wooden Box
Delivery Time 2-4 Weeks
Payment Terms L/C, T/T
Supply Ability 5000 PCS / Year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Alloy Steel Specification API
Size API Type A And B
Application Oil ,mining ,water ,gas Drilling Industry Color As Buyer Requirment
Highlight

Oil Mining Crossover Sub Drilling

,

API Standard Lifting Sub

,

API Standard Crossover Sub Drilling
Leave a Message
Product Description

API standard drilling crossover sub lift sub and drill bit sub





Description :



Cross-over sub acts for conversion and connection of drill stem component in petroleum,natural gas and geology drilling work. It is used mainly for connecting of upper drill tools and lower drill tools during drilling operations.





Specification :


There are three types such as pin*pin, pin*box, box*box. We carry size range of 2-3/8", 2-7/8″, 3-1/2″,4″ and 4-1/2″ in J55, K55, N80, P110 grade.
All of our couplings meet the API Specifications 5CT/5B.



1. Size: 2-3/8″, 2-7/8″, 3-1/2″, 4″, 4-1/2″
2. Standard: API 5CT /5B
3. Model : EUE ,NUE

4: Material : Alloy Steel as buyer requirement
4. Grade: J55/K55/N80/L80/P110

5. Type : PIN*PIN ,PIN*BOX ,BOX*BOX

6. Application Industries : Oil , Gas, water ,Mining drilling industry

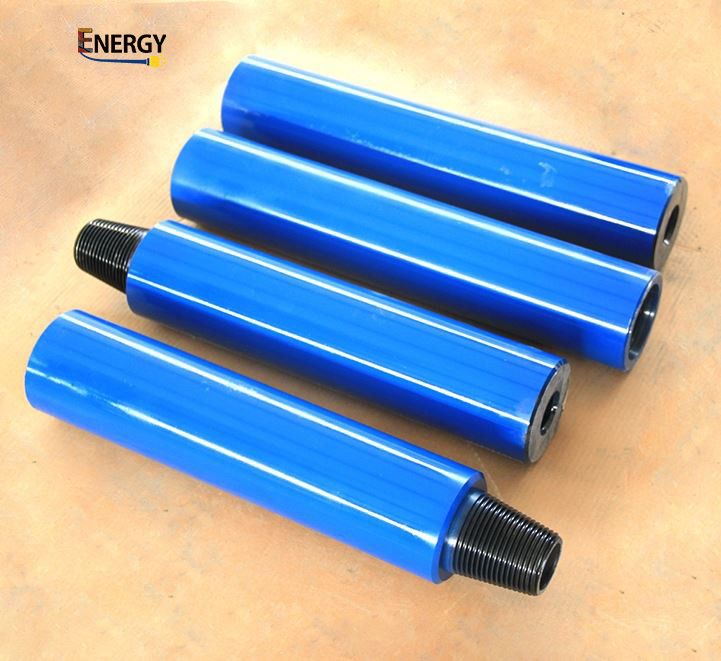

API Standard Oil Mining Crossover Sub Drilling Lifting Sub 0



Aviable Size :



Size Type of Thread O.D*L (mm) Weight(kg)
2-3/8" NUE 73.02*107.95 1.28
2-7/8" NUE 88.90*130.18 2.34
2-7/8" EUE 93.17*133.35 2.40
3-1/2" NUE 107.95*142.88 3.71
3-1/2" EUE 114.30*146.05 4.10
4" NUE 120.65*146.05 4.35
4" EUE 127.00*152.40 4.82
4-1/2" NUE 132.08*155.58 4.89
4-1/2" EUE 141.30*158.75 6.05































 Manufacuture Process :



The sub adapter of drill-class production technology, and has formed a complete production system has a number of leading level of electro-hydraulic forging hammer, to control atmosphere furnace heat treatment production line and excellent Seiko CNC machine tool production equipment. All parts CNC machining, the key technology of CNC control to ensure that the products of high quality, high reliability.

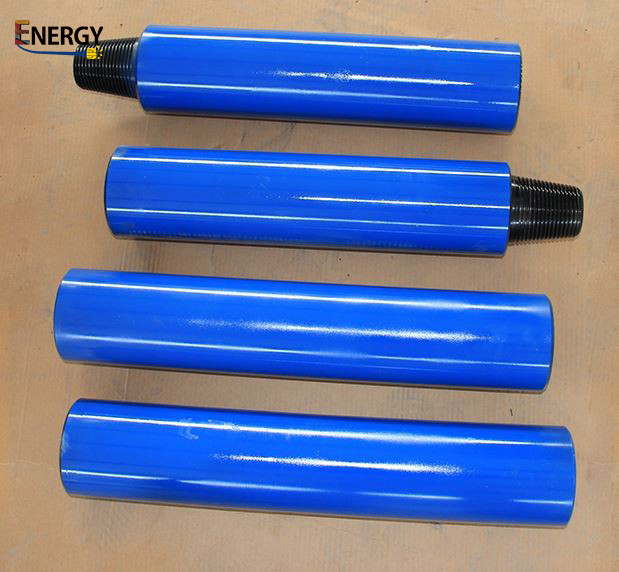

API Standard Oil Mining Crossover Sub Drilling Lifting Sub 1
