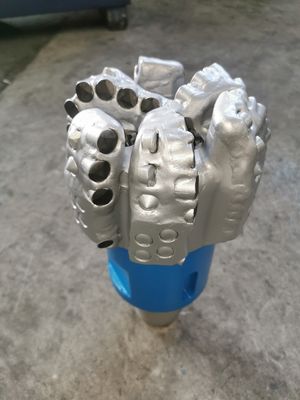

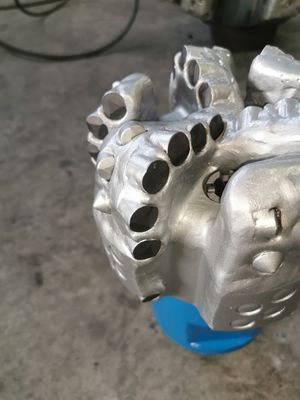

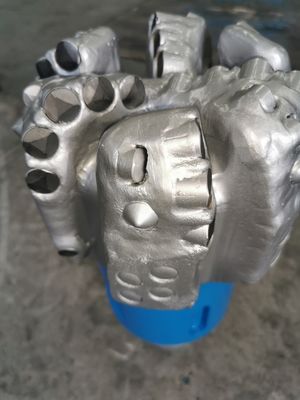

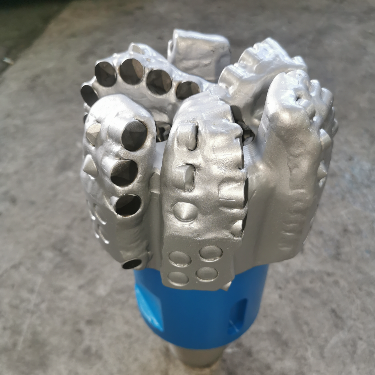

Matrix Body 6-5/8 inch 616 PDC Diamond Bit Of Oifield API Drill Bit

Matrix Body PDC Diamond Bit

Description :

Matrix is desirable as a bit material, because its hardness is resistant to abrasion and erosion.

It is capable of withstanding relatively high compressive loads, but, compared with steel, has low resistance to impact loading. Matrix is relatively heterogeneous, because it is a composite material.

According to the International Association of Drilling Contractors (IADC), the Fixed-cutter bit classification composed of four characters that designate:

• Body material.
• Cutter density.
• Cutter size or type.
• Bit profile

Bit Profile


Drill Bit PDC Cutters

Polycrystalline Diamond Composite (PDC) cutters are the main point of contact for a drill bit. PDC bits remove the rock mainly by shearing.

The PDC cutters are exposed to a lot of heating and cooling down the well, a very challenging environment.

PDC cutters that have lower thermal degradation and more thermal stability generally achieve higher ROP and increased wear resistance. So, optimizing the cutter is important.

Drill Bit Nozzles

Drill bit nozzles help clear the cutting area and cool the Polycrystalline Diamond Composite (PDC) cutters.

Effective placement of these nozzles along with the angle they are set at plays a critical role on how efficient the drill bit performs.

Fluid channels also complement nozzle placement to improve the clearing of cuttings.

Matrix Body

Matrix is a very hard, rather brittle complex material containing tungsten carbide grains bonded with a softer, tougher, metallic binder.

The hardness of a matrix-body PDC has the benefit of not being susceptible to abrasion and erosion. It is effective in tolerating high compressive loads, but, compared with steel, has low resistance to impact loading.

Matrix-body PDC bits are relatively diverse, because matrix is a compounded material.

In environments in which body erosion is likely to cause a bit to fail, matrix-body PDC are the preference over steel-body bits. For diamond-impregnated bits, only matrix-body construction can be used.
