RitaThe tricone bit quality is good

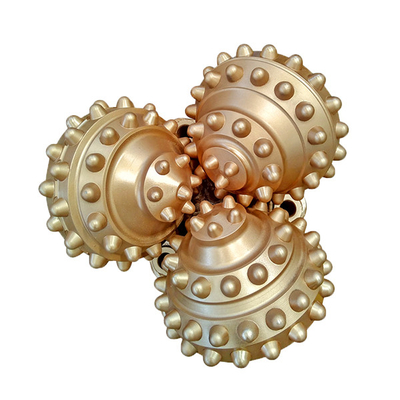

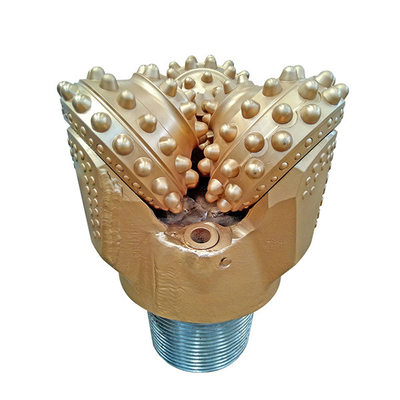

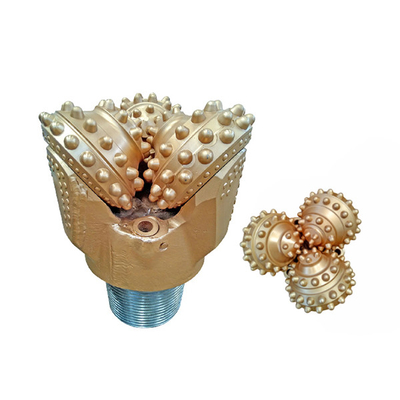

Rock Drilling Tool 17 Inch Tric-one Bit IADC 637 TCI Rock Bit Of API Spec
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Tricone Drill Bit | Use | Oil ,gas ,minig ,drilling ,water |
|---|---|---|---|
| Material | Diamond ,Alloy Steel ,Tungston Carbide | Cutter Type | Tungstern Carbide Insert |
| IADC | 637 | Application | Rock Drill Of Oil ,mining ,gas .water |
| Size | 17 Inch (431.8mm) | Color | Customer Requirement |
| Advantage | High-efficiency , High Strength | Cutter Strucuter | Conical |
| Market | All Over The World | Packing | Steel Box Or Wooden Box |
| Rock Formation | F<8 | Tooth | Tungsten Carbide Drill Bit |
| Bearing Type | Sealed Bearing Roller Bit | ||
| Highlight | 17inch Tricone Drill Bit,TCI Rotary Tricone Rock Drill Bit,17inch Rotary Tricone Rock Drill Bit |
||
Product Description
Rock Drilling Tool 17 Inch Tric-one Bit IADC 637 TCI Rock Bit Of API Spec
1 . Descriptions:
Tungsten Carbide Insert (TCI) bits are are used middle to hard rock formation which offers a variety of carbide inserts such as spherically shaped inserts for very hard rock or conically shaped inserts for softer rock. The number of rows of inserts is directly related to the type of application and the size of hole to be drilled. here are also open and sealed bearings available as well as three types of shirttail protection to choose from. TCI stands for Tungsten Carbide Insert.
2. Specification:
| TRICONE BIT SPECIFICATIONS | |
| Diameter: | 17 ”(431.8mm) |
| Body Type : | Steel Body |
| Tooth Type: | TCI Tooth |
| Bearing : | Sealed Rearing |
| API Thread API Connection: | 7-5/8 API REG |
| IACD CODE : | 537 |
| OPERATION PARAMETERS | |
| Weight (Kg): | 276 KGS |
| RPM Range (rotary): | 130-40 |
| Weight on Bit(kN): | 125-264 kN |
| Make Up Torque ( KN): | 46 - 54 KN |
3 . Bit profile
4 . Bearing Types
There are primarily three types of bearing designs used in tricone drilling bits:
• STANDARD OPEN BEARING ROLLER BIT:
On these bits the cones will spin freely. This type of bit has a front row of ball bearings and a back row of roller bearings.
• SEALED BEARING ROLLERS BITS
These bits have an O-Ring seal with a grease reservoir for bearing cooling. The seals acts as a barrier against mud and cuttings to protect the bearings
• JOURNAL BEARING ROLLER BITS
These bits are strictly oil/grease cooled with nose bearings, O-Ring seal and a race for maximum performance.
5. Question :
What we should be pay attention on choosing the tricone drill bit ?
- Tricone Bit IADC code passport
- Tricone Bit TCI & Steel tooth options
- Tricone Bit Additional tungsten carbide inserts on heel rows
- Tricone Bit Tungsten carbide coating on cone bodies
- Tricone Bit Diamond coated tungsten carbide inserts on the gauge of the cones
- Tricone Bit Tungsten carbide inserts on the shirttail of the legs
- Tricone Bit Additional central nozzle for cleaning cones
The tricone feature is that they come with their own passport as below :
- The specification of the cones
- The quality stamp signed by the person who made and checked the bit
- The recommended drilling parameters to get the best performance out of the bit:
- Bit weight
- Rotation speed
- Flushing volume
Which type of tricone you should choose ?
It depends on the geology you are drilling in and the diameters of the borehole you are drilling. The International Association of Drilling Contractors (IADC) have developed an easy use step system to choose the right tricone for your geology with additional features such as bit protection for longer production life.
