RitaThe tricone bit quality is good
Factory Milled Tooth Three Roller Cone Tricone Drilling Bit For Mine Water Well
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Tricone Drill Bit | Machine Type | Drilling Tool |
|---|---|---|---|
| Processing Type | Forging | Packing | Steel Box Or Wooden Box |
| Tooth | Milled Tooth | Bearing Type | Sealed Bearing |
| Highlight | 13.5inch steel tooth bits,Milled Tooth Drill Bit 13.5inch,Sealed Bearing Milled Tooth Drill Bit |
||
Product Description

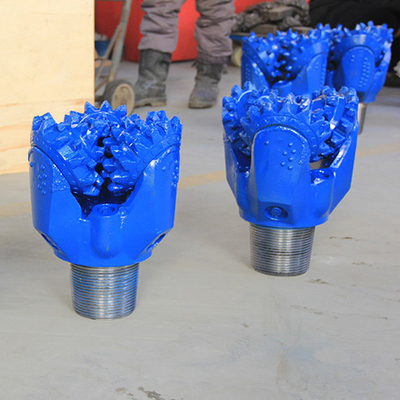

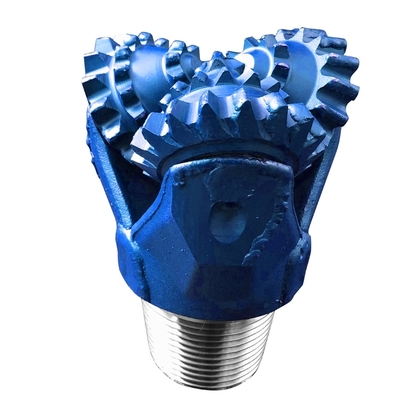

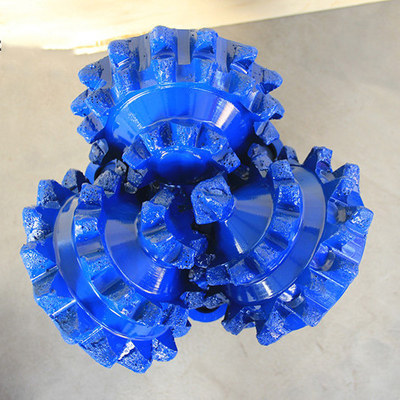

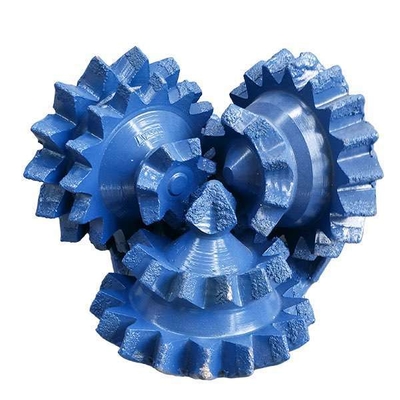

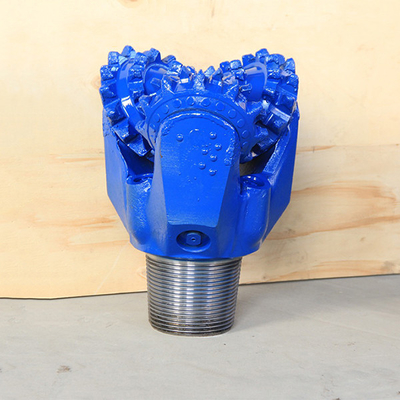

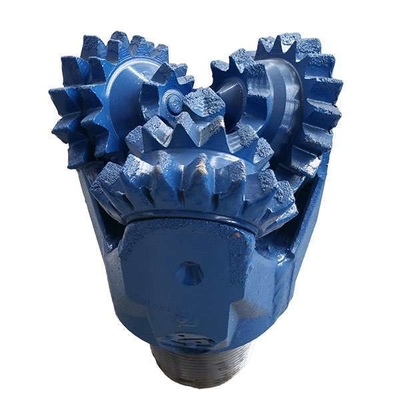

Steel Tooth Tri-Cone Three Rolling Cone Mining Rock Drill Bit
1. Descriptions:
Steel Tooth (or Mill Tooth) bits come in many shapes and sizes with multiple features, and cutting structures to combat downhole diversities in the different formations you may encounter.
Mill teeth (Steel teeth) tricone are used in the soft rock formation . Wide gaps between the protruding teeth prevent them from becoming blocked with material as they cut through the top layer of material.
| Tooth Type: | Milled Tooth |
| Available size: | 5-7/8~14-3/4'' |
| Painting color: | customized |
| Condition: | new manufacture |
| Applicable industrial: | energy & mining |
| Machinery test: | as requirements |
| Place of origin: | Suzhou,China |
| Certificate: | API & ISO |
| Manufacture Processing: | forging |
| Warranty: | 1 year or based on products |
2.
3. Bearing Types
There are primarily three types of bearing designs used in tricone drilling bits:
• STANDARD OPEN BEARING ROLLER BIT:
On these bits the cones will spin freely. This type of bit has a front row of ball bearings and a back row of roller bearings.
• SEALED BEARING ROLLERS BITS
These bits have an O-Ring seal with a grease reservoir for bearing cooling. The seals acts as a barrier against mud and cuttings to protect the bearings
• JOURNAL BEARING ROLLER BITS
These bits are strictly oil/grease cooled with nose bearings, O-Ring seal and a race for maximum performance.
4. FAQ
| Q: You are a trading company or manufacturer ? |
| A: Manufacturer, We are a 100% real factory with over 20 years' experience in water/oil/gas wells Drill Bits. |
| Q: How about your products ? |
| A : Both of tricone bits and PDC bits strictly conform to API 7 requirements and ISO9001. we will do kinds inspections before delivery, also cover for after-sales service. |
| Q: Package Methods ? |
| A: Normally wooden case, also can be steel box; can be customized if need. |
| Q: Payment Terms ? |
| A: we accept T/T, L/C, Paypal, Western Union, etc. |
| Q: Can I visit your factory ? |
| A: Yes, we welcome you to our factory all the time, will send invitation letters if need; also can show our workshop and warehouse online. |
