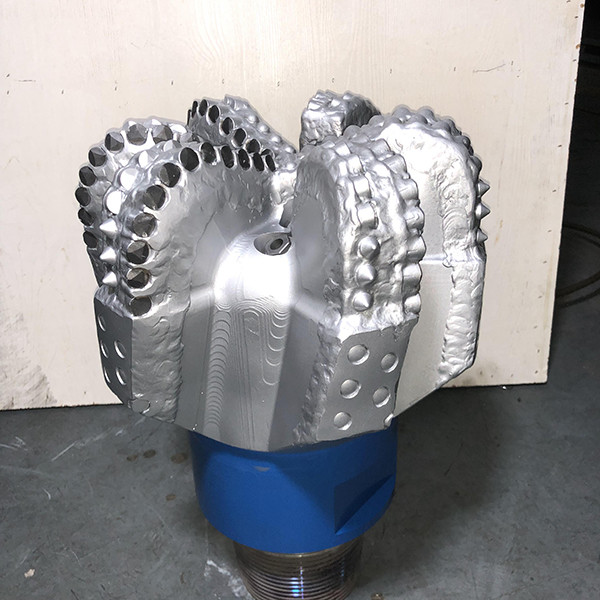

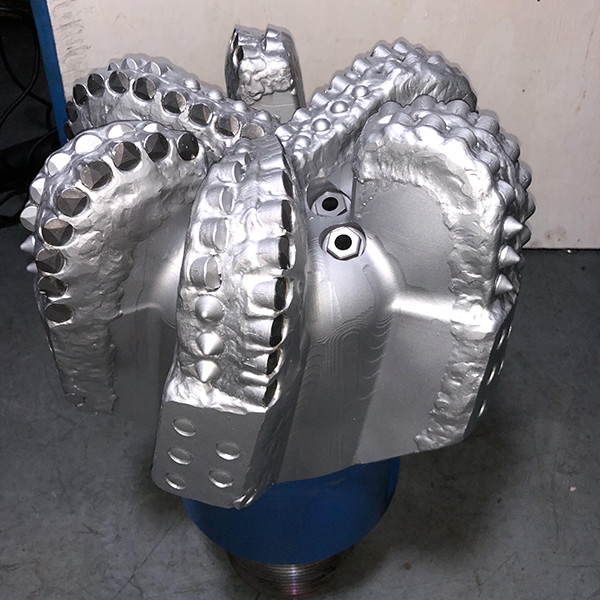

13-1/2 Inch 6 Blades Diamond PDC Drill Bit

Diamond PDC Drill Bit 13-1/2 Inch Fixed Cutter Bit

1 . Descriptions:

According to the International Association of Drilling Contractors (IADC), the Fixed-cutter  PDC Drill  bit classification composed of four characters that designate:

• PDC Drill  Bit Body material.
• PDC Drill  Bit Cutter density.
• PDC Drill  Bit Cutter size or type.
• PDC Drill  Bit  profile

All of our PDC Drill bits are fit for API standard and used in the drilling Industry.

The PDC drill bits size 3~22 inch with 3~9 Blades are available.

And different classification cutter are optional according to your budget .

2. PDC Drill Bit Specification:

3 . PDC Drill Bit profile

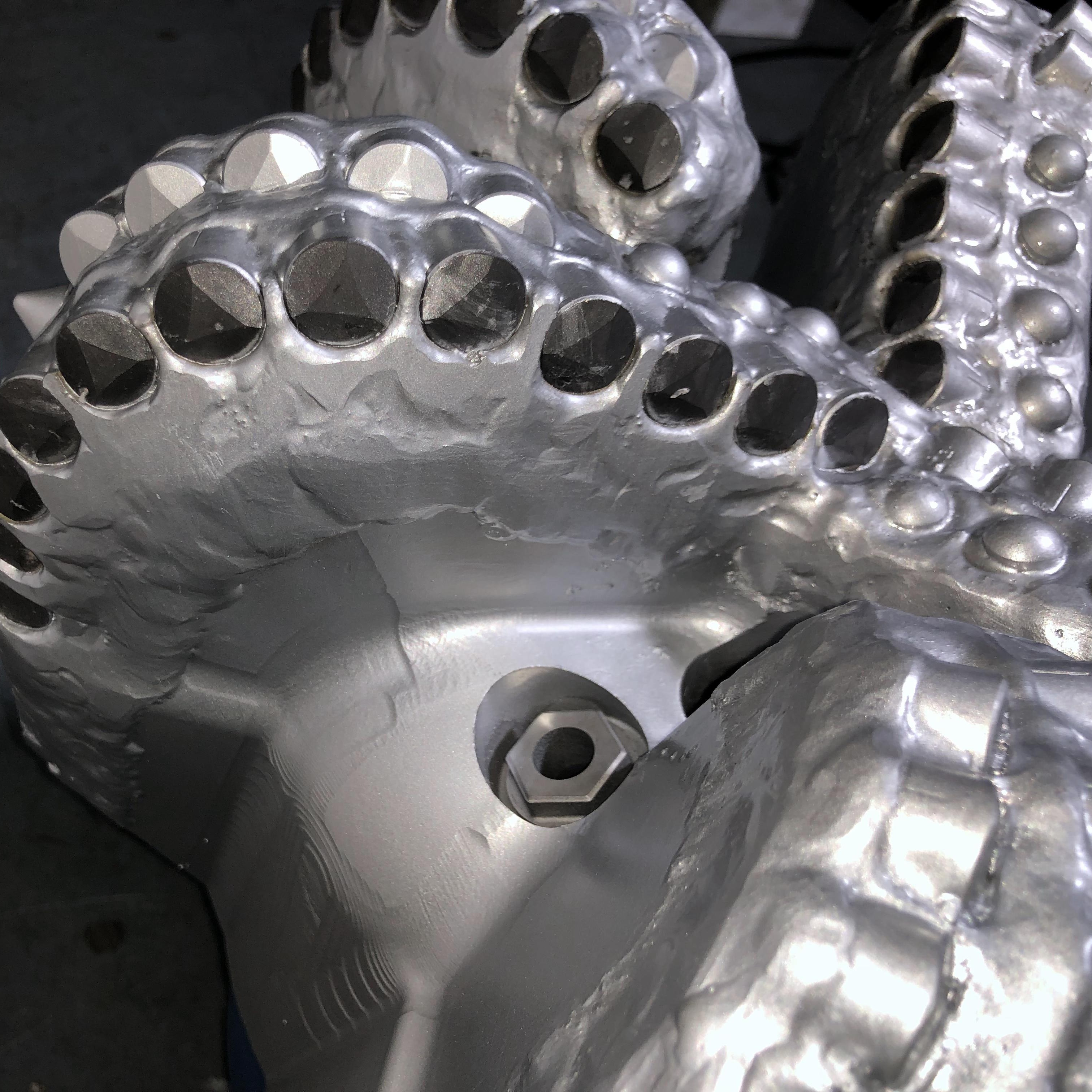

4  . PDC Drill Bit Cutters

PDC Cutter stands for Polycrystalline Diamond Compact. A PDC cutter of PDC Drill Bit is the heart and sole of a PDC drill bit. It makes up more than 90% of all drill bits used today for mining, geothermal, oil and gas drilling.

Polycrystalline Diamond Composite (PDC) cutters of PDC Drill Bit  are the main point of contact for a drill bit. PDC Drill bits remove the rock mainly by shearing.

The PDC cutters are exposed to a lot of heating and cooling down the well, a very challenging environment.

PDC cutters that have lower thermal degradation and more thermal stability generally achieve higher ROP and increased wear resistance. So, optimizing the cutter is important.

5. Drill Bit Nozzles

PDC Drill bit  nozzles help clear the cutting area and cool the Polycrystalline Diamond Composite (PDC) cutters.

Effective placement of these nozzles along with the angle they are set at plays a critical role on how efficient the drill bit performs.

Fluid channels also complement nozzle placement to improve the clearing of cuttings.

6. Steel Body of PDC Drill Bits

Steel body of PDC Drill Bit is the opposite of matrix body. It can of withstanding high impact loads, but is softer and lacks protective features. The strength and ductility of steel give steel-bit bodies high impact resistance.

Steel bodies of PDC Drill Bit are considerably stronger than matrix bodies.

A beneficial feature of steel bits is that they can easily be rebuilt a number of times because worn or damaged cutters can be replaced rather easily. This is a particular advantage for operators in low-cost drilling environments.

Polycrystalline diamond compact (PDC) drill bits are different than roller cones in that they are one piece bodies with no moving parts. The fixed-cutters shred the rock, so the bit is able to operate with higher rotation speeds more efficiently in consolidated formations.
