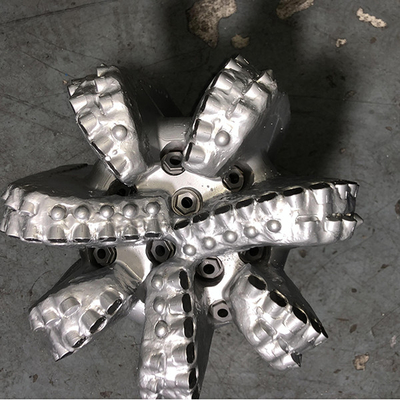

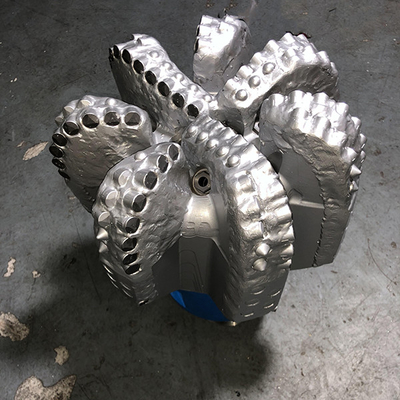

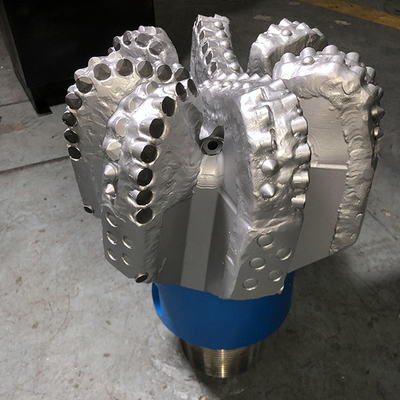

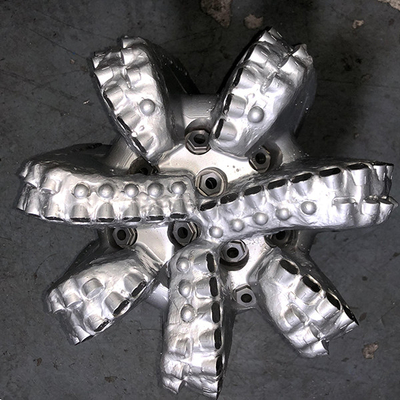

API Rock Bit 17 Inch 7 Blades PDC Rock Bit Of Oilfield Drill Bit
Product Details
| Type | Diamond Drill Bit | Use | Oil ,gas ,minig ,drilling ,water |
|---|---|---|---|
| Material | Diamond ,Alloy Steel ,Tungston Carbide | Machine Type | Drilling Industry |
| Processing Type | Forging ,Casting | Application | Rock Drill Of Oil ,mining ,gas |
| Size | 17"(431.8mm) | Color | Customer Requirement |
| Advantage | High-efficiency , High Strength | Cutter Diameter | 16mm |
| Blades | 7Blades | Market | All Over The World |
| Packing | Steel Box | Cutter Type | 1613 |
| Rock Formation | F<8 | Nozzle Qunatity | 11 |
| Cutters | Polycrystalline Diamond Compact (PDC) | Surface Treatment | PDC Insert |
| Highlight | 17Inch Steel Body PDC Drill Bits,7 Blades PDC Oilfield Drill Bit,17 Inch PDC Oilfield Drill Bit |
||
Product Description
API Rock Bit 17 Inch 7 Blades PDC Rock Bit Of Oilfield Drill Bit
1 . Descriptions:
According to the International Association of Drilling Contractors (IADC), the Fixed-cutter bit classification composed of four characters that designate:
- Body material
- Cutter density
- Cutter size or type
- Bit profile
All of our Drill bits are fit for API standard and used in the drilling Industry.
The PDC drill bits size 3~22inch with 3~9Blades are available. And different classification cutter are optional according to your budget .
2. Specification:
| SPECIFICATION | |
| Size : | 17"(431.8mm) |
| Drill Body Type : | Steel Body |
| Blades Quantity : | 7 |
| Nozzles Quantity : | 11 |
| API Connection (in) : | 7-5/8" REG |
| Gauge Length (In): | 3 |
| OPERATIONAL PARAMETERS | |
| Weight on Bit (KN): | 89 -00 |
| RPM Range(Rotary): | 100- DHM |
| Flow Rate(lps): | 57- 75 LPM |
| Make-Up Torque(KN): | 46- 54 KN.M |
3 . Bit profile

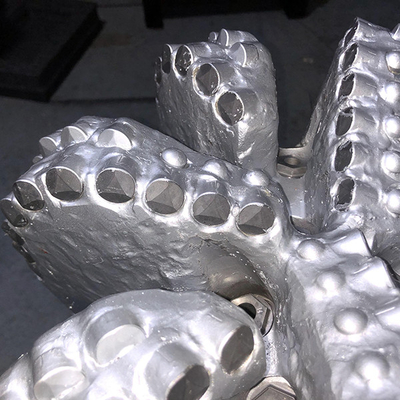

4 . Drill Bit PDC Cutters
Polycrystalline Diamond Composite (PDC) cutters are the main point of contact for a drill bit. PDC bits remove the rock mainly by shearing.
The PDC cutters are exposed to a lot of heating and cooling down the well, a very challenging environment.
PDC cutters that have lower thermal degradation and more thermal stability generally achieve higher ROP and increased wear resistance. So, optimizing the cutter is important.
5. Drill Bit Nozzles
Drill bit nozzles help clear the cutting area and cool the Polycrystalline Diamond Composite (PDC) cutters.
Effective placement of these nozzles along with the angle they are set at plays a critical role on how efficient the drill bit performs.
Fluid channels also complement nozzle placement to improve the clearing of cuttings.
6. Steel Body PDC Bits
Steel body is the opposite of matrix body. It can of withstanding high impact loads, but is softer and lacks protective features. The strength and ductility of steel give steel-bit bodies high impact resistance.
Steel bodies are considerably stronger than matrix bodies.
A beneficial feature of steel bits is that they can easily be rebuilt a number of times because worn or damaged cutters can be replaced rather easily. This is a particular advantage for operators in low-cost drilling environments.
Polycrystalline diamond compact (PDC) drill bits are different than roller cones in that they are one piece bodies with no moving parts. The fixed-cutters shred the rock, so the bit is able to operate with higher rotation speeds more efficiently in consolidated formations.
