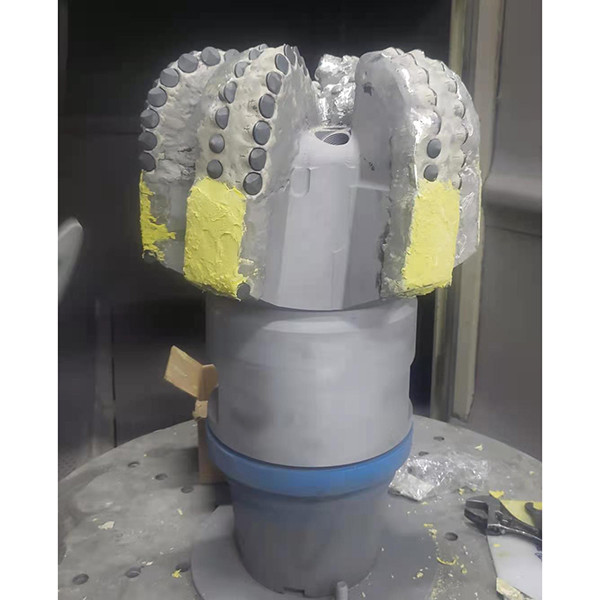

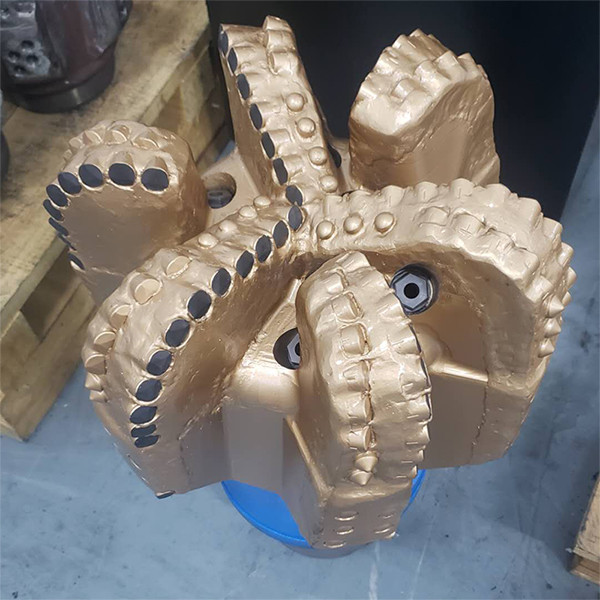

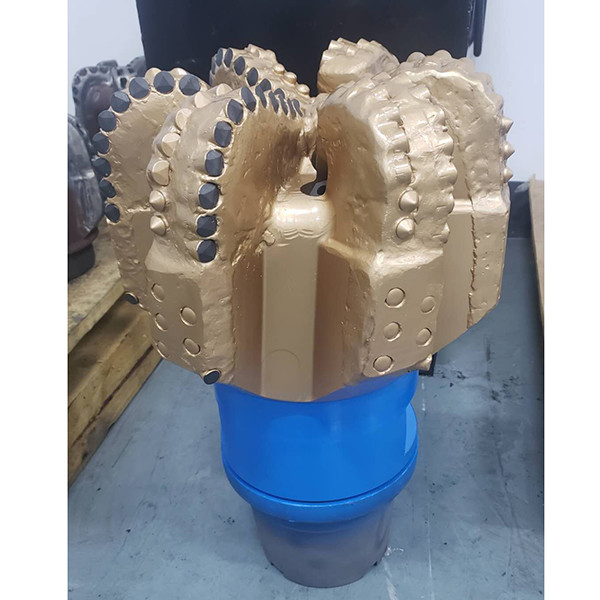

API Oil Drill Bit 12 Inch Diamond PDC Drill Bit Of Steel Body
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Diamond Drill Bit | Use | Oil ,gas ,minig ,drilling |
|---|---|---|---|
| Material | Diamond ,Alloy Steel ,Tungston Carbide | Machine Type | Drilling Tool |
| Processing Type | Forging ,Casting | Application | Rock Drill Of Oil ,mining ,gas |
| Size | 12"(304.8.mm) | Color | Customer Requirement |
| Advantage | High-efficiency , High Strength | Cutter Diameter | 16mm |
| Usage | Oil ,mining ,gas | Blades | 6 Blades |
| Market | All Over The World | Packing | Steel Box |
| Cutter Type | 1613 ,1319 | Rock Formation | F<8 |
| Nozzle Qunatity | 7 | ||
| Highlight | API Oil PDC Drill Bit |
||
Product Description
API Oil Bit 12 Inch Diamond PDC Drill Bit Of Drilling Rig Bit
1 . Descriptions:
When run properly, a PDC bit can increase your penetration rate from anywhere between 50-250%. This translates to faster project completion, fuel savings and reduced labor costs per hole. Another benefit of running PDC is how much little stress they place on drill rigs: In another PDC drill Bit life is more than tricone bit ,because the PDC lif is depends mainly on the wear of the diamond cutters .
The PDC drill bits size 3~22inch with 3~9Blades are available. And different classification cutter are optional according to your budget . All bit are special manufacutre and desginer according to API . Our desginer and techincal person have worked on the top factory for over 10 years .
2. Specification:
| SPECIFICATION | |
| Size : | 12" (304.8mm) |
| Drill Body Type : | Steel Body |
| Blades Quantity : | 6 |
| Nozzles Quantity : | 7 |
| API Connection (in) : | 6-5/8" REG |
| Gauge Length (In): | 2 |
| OPERATIONAL PARAMETERS | |
| Weight on Bit (KN): | 88-177 |
| RPM Range(Rotary): | 100- DHM |
| Flow Rate(lps): | 46- 56 LPM |
| Make-Up Torque(KN): | 38- 43KN.M |
3 . PDC Bit Profile
4 . PDC Drill Bit PDC Cutters
Polycrystalline Diamond Composite (PDC) cutters are the main point of contact for a drill bit. PDC bits remove the rock mainly by shearing.
The PDC cutters are exposed to a lot of heating and cooling down the well, a very challenging environment.
PDC Drill Bit cutters of that have lower thermal degradation and more thermal stability generally achieve higher ROP and increased wear resistance. So, optimizing the cutter is important.
5. PDC Drill Bit Nozzles
PDC Drill bit nozzles help clear the cutting area and cool the Polycrystalline Diamond Composite (PDC) cutters.
Effective placement of these nozzles along with the angle they are set at plays a critical role on how efficient the drill bit performs.
Fluid channels also complement nozzle placement to improve the clearing of cuttings.
6. Steel Body PDC Bits
Steel body is the opposite of matrix body. It can of withstanding high impact loads, but is softer and lacks protective features. The strength and ductility of steel give steel-bit bodies high impact resistance.
Steel bodies are considerably stronger than matrix bodies.
A beneficial feature of steel bits is that they can easily be rebuilt a number of times because worn or damaged cutters can be replaced rather easily. This is a particular advantage for operators in low-cost drilling environments.
Polycrystalline diamond compact (PDC) drill bits are different than roller cones in that they are one piece bodies with no moving parts. The fixed-cutters shred the rock, so the bit is able to operate with higher rotation speeds more efficiently in consolidated formations.
