xProduct Details
| Type | Diamond Drilling Tool | Processing Type | Forging ,Casting |
|---|---|---|---|
| Machine Type | Drilling Tool | Use | Oil ,gas ,minig ,drilling ,water |
| Material | Diamond ,Alloy Steel ,Tungston Carbide | Certification | API ,ISO |
| Application | Rock Drill Of Oil ,mining ,gas .water | Usage | Oil ,mining ,gas ,water |
| Packing | Wooden Box Or Steel Box | Advantage | High-efficiency , High Strength |
| Highlight | PDC Hole Opener Reamer Bits,155mm PDC Hole Opener,6 Blades PDC Hole Opener |
||
Product Description

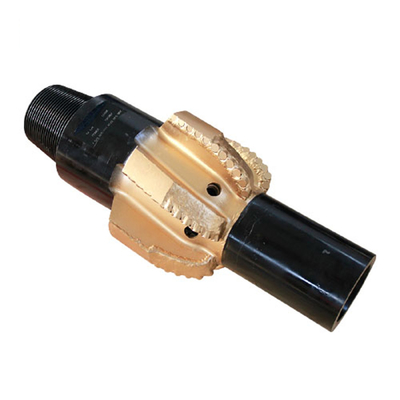

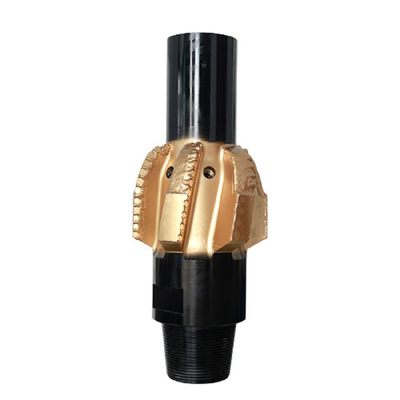

Down The Hole Drilling Tools 9-1/2inch 7Bladds PDC Hole Opener Of Oil Water Drilling Well
Specification
Hole Diameter(In): 9 -1/2”
Cutter Size (mm) : 13
API Connect : 4-1/2” REG
Nozzles Quantity : 6
Number of Cutter Blades : 6
Drill Torque (KN) : 89
Operation Flow (lps): 90
| SPECIFICATION | |
|
Machine Type : |
Drilling Tool |
|
Material : |
Alloy Steel |
|
Process Type : |
Forging |
|
Diameter : |
6" |
|
Adapterd Well |
9 - 1/2" |
|
Length : |
76.38 |
|
Blade Quantity: |
7 |
|
Max WOB(T): |
50 |
|
Make Up Torque(KN): |
9.5-12.2 |
PDC hole opener is a reliable solution for hole enlarging in both soft and medium. The body is machined
of a single block of AISI 4145H alloy steel. The unique design of the body ensures maximum strength
and durability. It can withstand loads far beyond those involved during normal drilling operations.
The PDC hole opener is designed for use in soft clays and shales to medium-hard shales and limestones
and is particularly effective in sticky formations where balling problems are encountered. Jets with
replaceable nozzles continuously clean the tool’s cutting structure, clearing debris buildup and increasing
penetration.
A range of PDC cutting structures are available for a variety of formation conditions. The fixed-diameter
hole opener is available in sizes 6 1/4 to 42 in. Tools for hole several sizes are designed with special blades.
The robust design and construction enable drilling of longer intervals.
In HDD(horizontal directional drilling ),the PDC hole opener can enlarge the hole safety and efficiency,its
superior structure can made the hole smooth and more stability,its unique JFA design made the cuttings
evacuation more quickly, it can rotary with less torque and penetrate with less stress. Customs can choose
suitable grade of PDC cutters for different formations.
