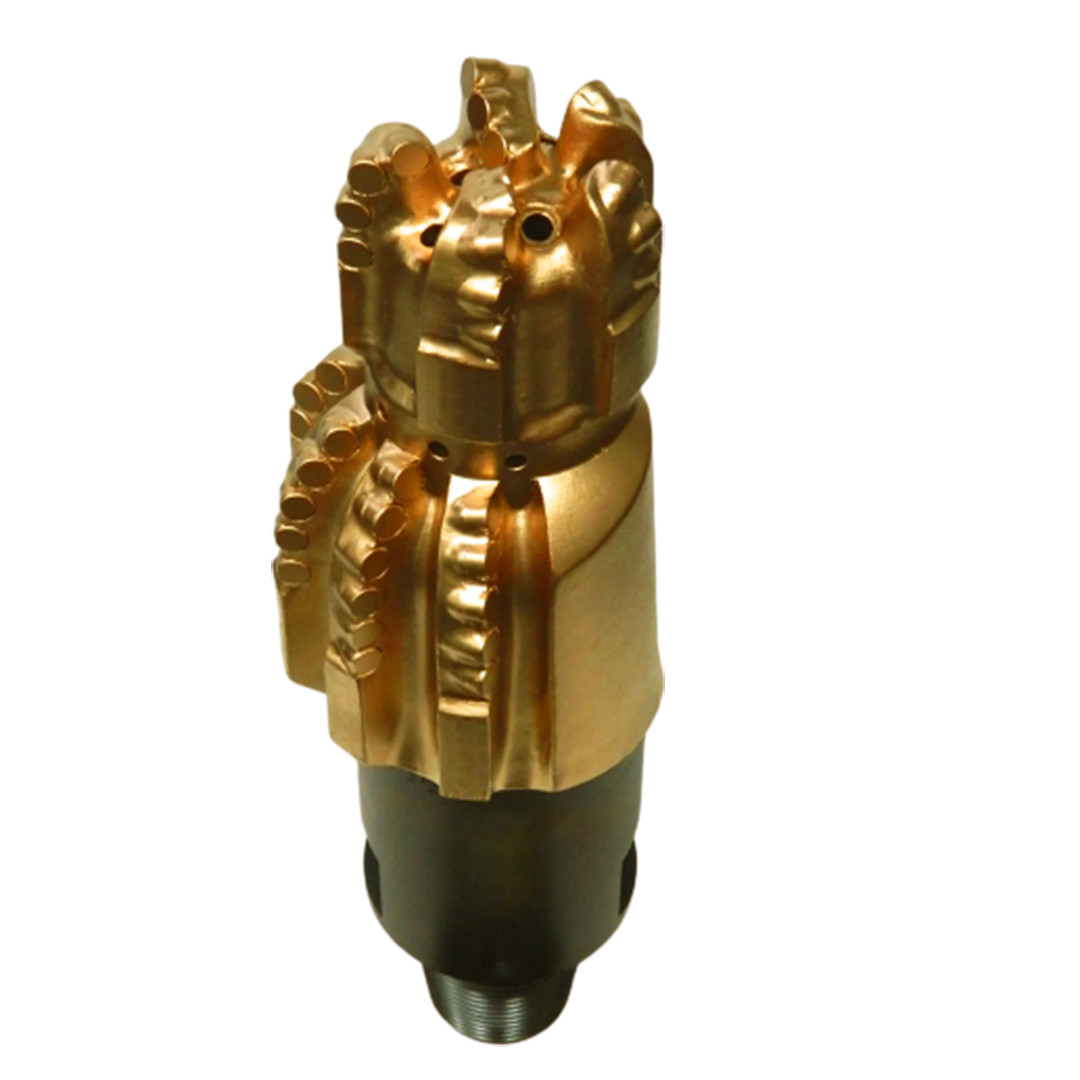

Fixed Cutter Bit 9-1/2 Inch PDC Bicenter Bit Of Oilfield Diamond Drilling Bit
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Diamond Drill Bit | Use | Oil ,gas ,minig ,drilling |
|---|---|---|---|
| Material | Diamond ,Alloy Steel ,Tungston Carbide | Machine Type | Drilling Tool |
| Processing Type | Forging ,Casting | Application | Rock Drill Of Oil ,mining ,gas |
| Size | 8-1/2"(215mm) | Color | Customer Requirement |
| Advantage | High-efficiency , High Strength | Cutter Diameter | 13mm Or 16mm |
| Usage | Oil ,mining ,gas | Blades | 3-5 Blades |
| Market | Global | Packing | Wooden Box Or Steel Box |
| Rock Formation | F<8 | ||
| Highlight | Fixed Cutter PDC Bicenter Bit,Oil Mining Water Diamond Pdc Bit,Fixed Cutter Bicenter Diamond Pdc Bit |
||
Product Description
Fixed Cutter Bit 10-1/2 Inch PDC Bicenter Bit Of Oilfield Diamond Drilling Bit
Specification:
Reaming Size :12-1/4”
Pass Thru Size: 10-1/2”
Polite Bit Size : 8- 1/2“
Primary Cutter Size: 16mm
Nozzles Qty : 3
Gauge Length : 2.5”
Connection : 6- 5/8”
Make up Torque (KN.m): 51.7-56.9
Operation Parameters
Rotary Speed (rpm): 60-260
Weight On Bit (KN): 30-260
Flow Rate(lps) : 35-70
| SPECIFICATION | |
| Reaming Size :12-1/4” | 9-1/4“ |
| Pass Thru Size: 10-1/2” | 8-1/2” |
| Polite Bit Size : 8- 1/2“ | 7 -1/2" |
| Primary Cutter Size: 16mm | 16mm |
| Nozzles Qty : 3 | 3 |
| Gauge Length : 2.5” | 2.5" |
| Connection : 6- 5/8” | 4 -1/2"REG |
| Make up Torque (KN.m): 51.7-56.9 | 51.7-56.9 |
| OPERATIONAL PARAMETERS | |
| Weight on Bit (KN): | 22-112 |
| RPM Range(Rotary): | 100- DHM |
| Flow Rate(lps): | 29-38 |
| Make-Up Torque(KN): | 16-22 |
This aggressive matrix and steel-body bi-center bits is designed for hole opening which provide
maximum drilling efficiency and durability, lower torque, reduced vibration, directionally responsive bit
with a lower cost per foot . Whether drilling float equipment or formation, it can reduce torque
response, maintain tangents and reduce sliding time without compromising efficiency.
It features a strong, one-piece construction and a low overall height that enhances directional capabilities
when drilling with down hole motors.Vibration is controlled by force and mass balancing, employment of spiral
blades and gauge,asymmetrical blade layout,. Because of the resulting bit vibration control,bit rotation is
maintained about the true bit axis,ensuring accurate finished hole diameter and quality . Hydraulic ports are

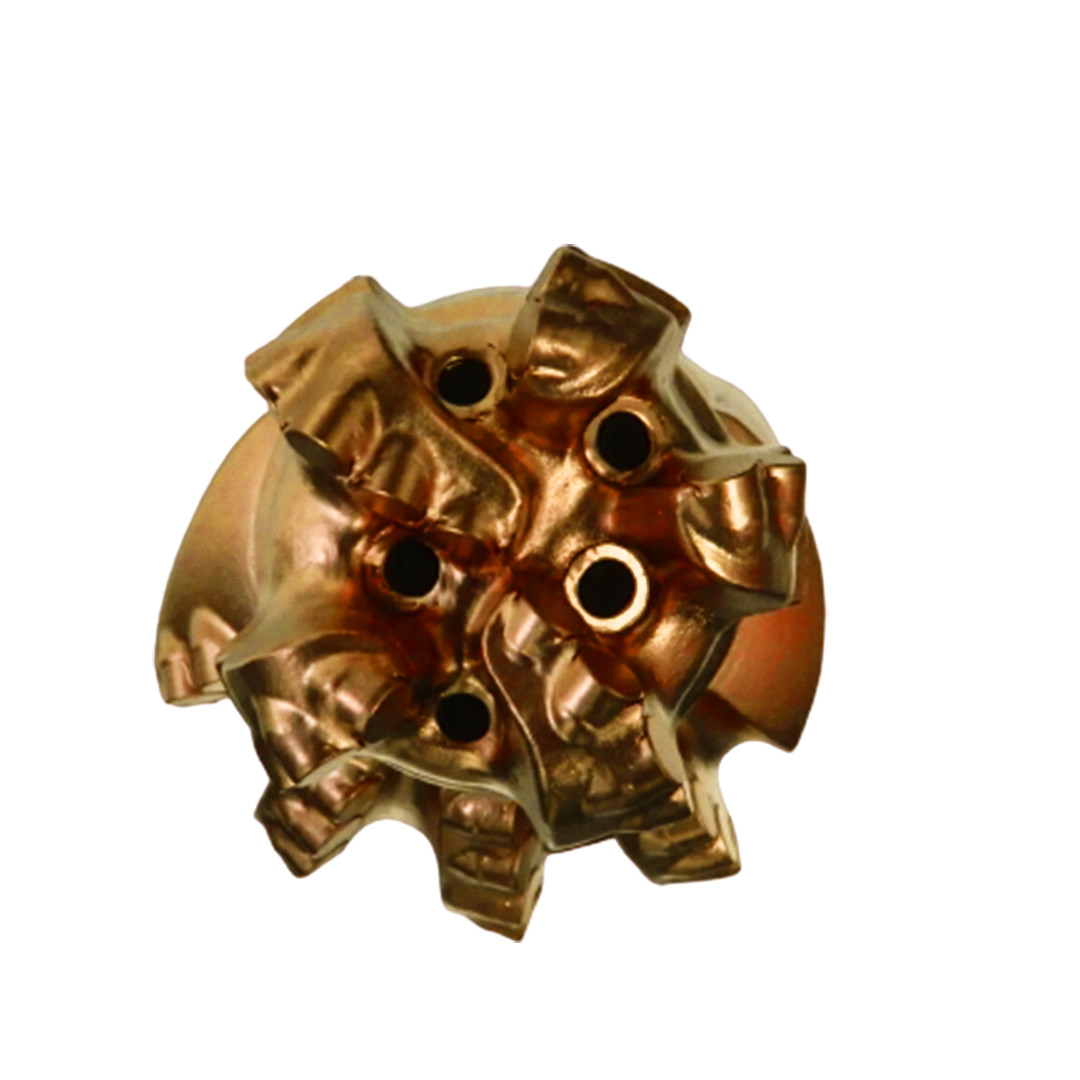

positioned to provide efficient cuttings removal and cleaning of both the pilot and reaming sections .
A unique gauge profile prevents cutters from contacting and damaging the casing and also provides a
high degree of stabilization and gauge protection. dual-diameter drift and drill bi-center bits have achieved
success in a broad range of applications.
