12-1/4“ PDC Drill Bit 6 Baldes Of Diamond Rock Drill Bit ”
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 12 1/4 | Usage | Oil ,gas,mining , |
|---|---|---|---|
| Formation Type | Soft, Medium, Hard, Or Extreme Hard | Advantage | High-efficiency,High Strength |
| Use | Oil ,gas ,minig ,drilling | Warranty | 1 Year |
| Material | Diamond, Alloy Steel, Tungston Carbide | Nozzle Qunatity | 10 |
| Packing | Wooden Box Or Steel Box | Nozzles | 7 |
Product Description

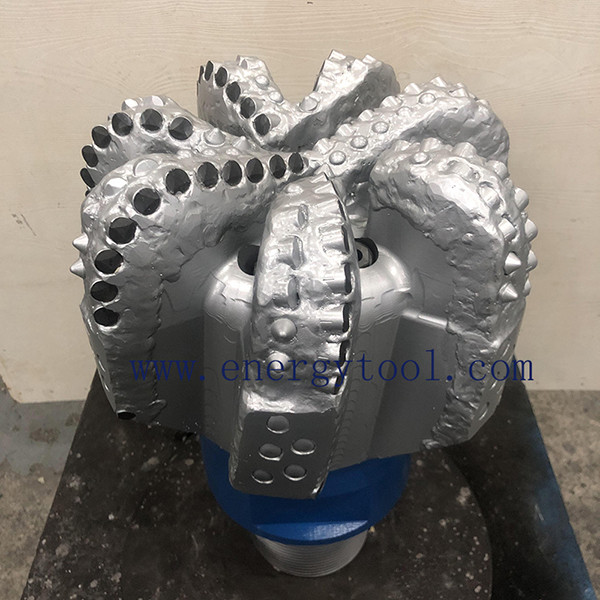

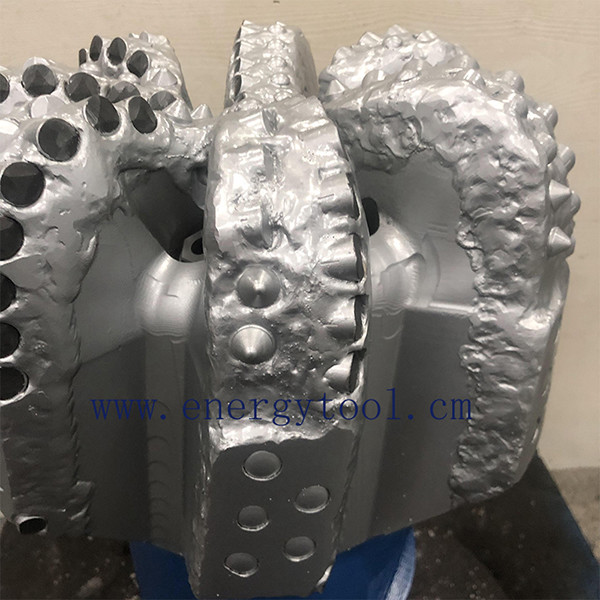

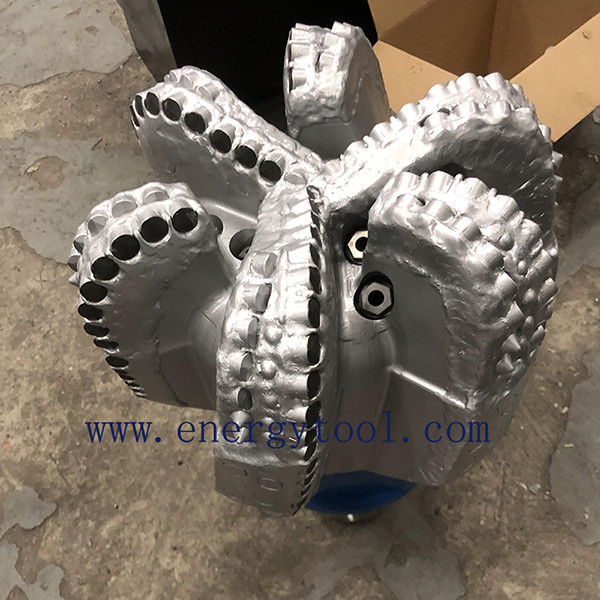

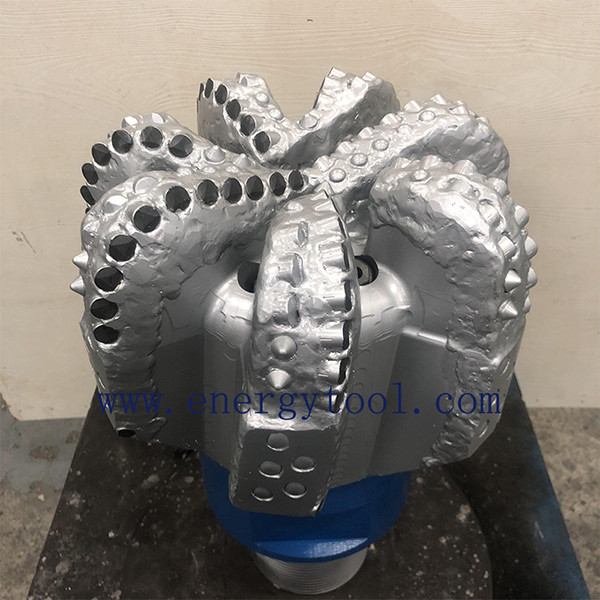

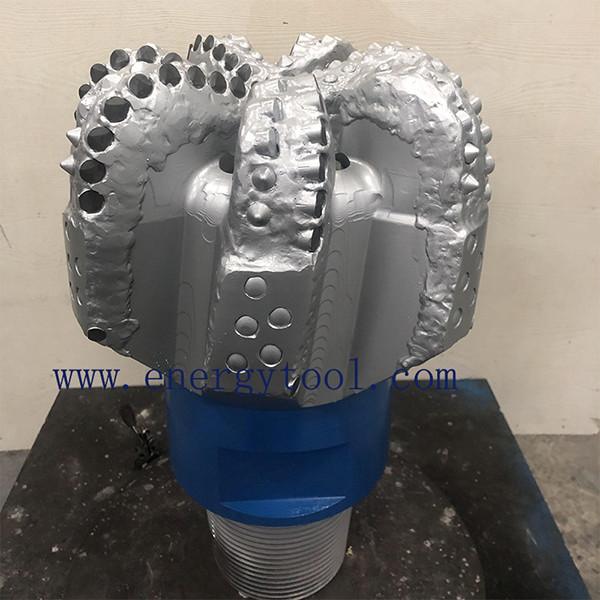

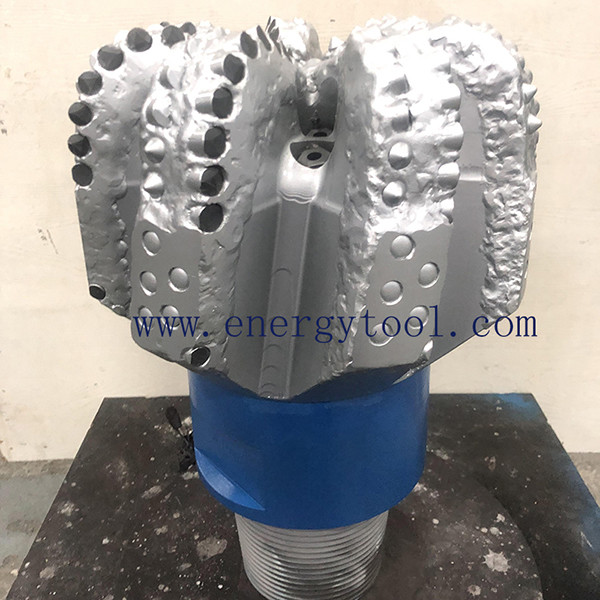

12-1/4“ PDC Drill Bit 6 Baldes Of Diamond Rock Drill Bit
Production Name :
PDC bit is a fixed cutter drilling tool with polycrystalline diamond compact cutters used for rock drilling in oil, mining, water or gas wells. This drilling tool is manufactured according to API specifications and is API certified. The PDC cutters are made of synthetic diamond material, which is the hardest known material, making it extremely wear-resistant. Compared to tricone bits, PDC bits generally offer higher drilling efficiency but at a higher cost.
PDC Drill Bit Specfication :
| SPECIFICATION | |
| Size : | 12-1/4" ( 311.3mm) |
| Drill Body Type : | Steel Body |
| Blades Quantity : | 6 |
| Nozzles Quantity : | 3 |
| API Connection (in) : | 6 -5/8" REG |
| Gauge Length (In): | 2.5 |
| OPERATIONAL PARAMETERS | |
| Weight on Bit (KN): | 89-178 |
| RPM Range(Rotary): | 100-DHM |
| Flow Rate(lps): | 48-57 LBS |
| Make-Up Torque(KN): | 38- 43 KN |
