PDC Diamond Drill Bit 8 1/2" 215.9mm 3 Blades With Double Cutters Line For Oil Gas Well Drilling
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Blade | 3 | Primary Cutter SiSe | 16mm |
|---|---|---|---|
| Nozzle | 3 | Connection | 4 1/2''API |
| Highlight | Double Cutters Line PDC Drill Bit,3 Blades PDC Drill Bit,8 1/2” PDC Drill Bit |
||
Product Description

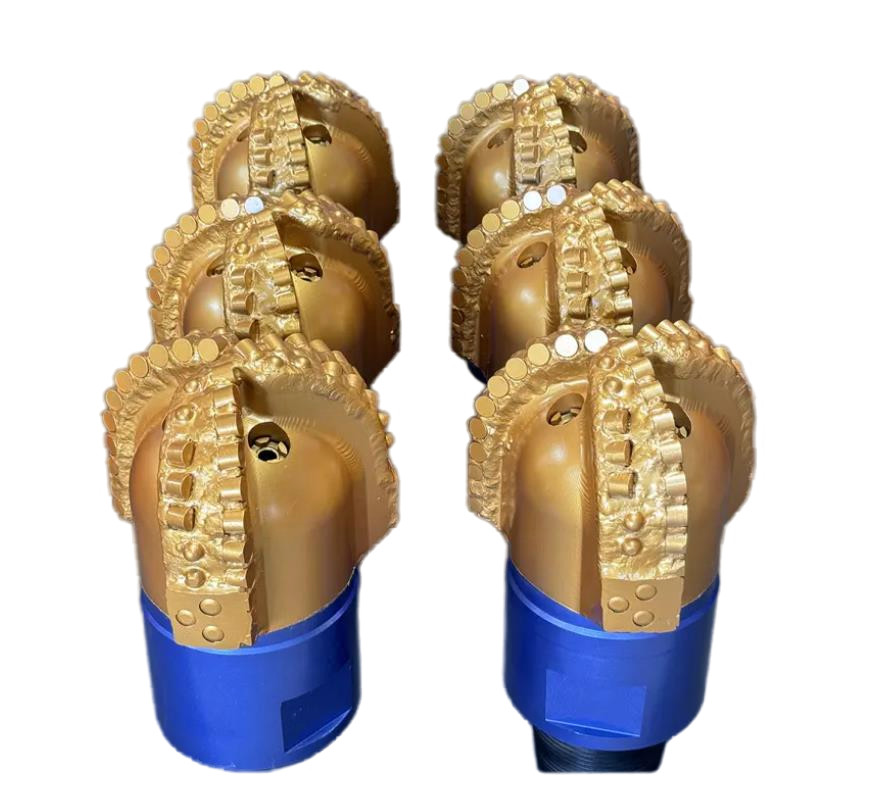

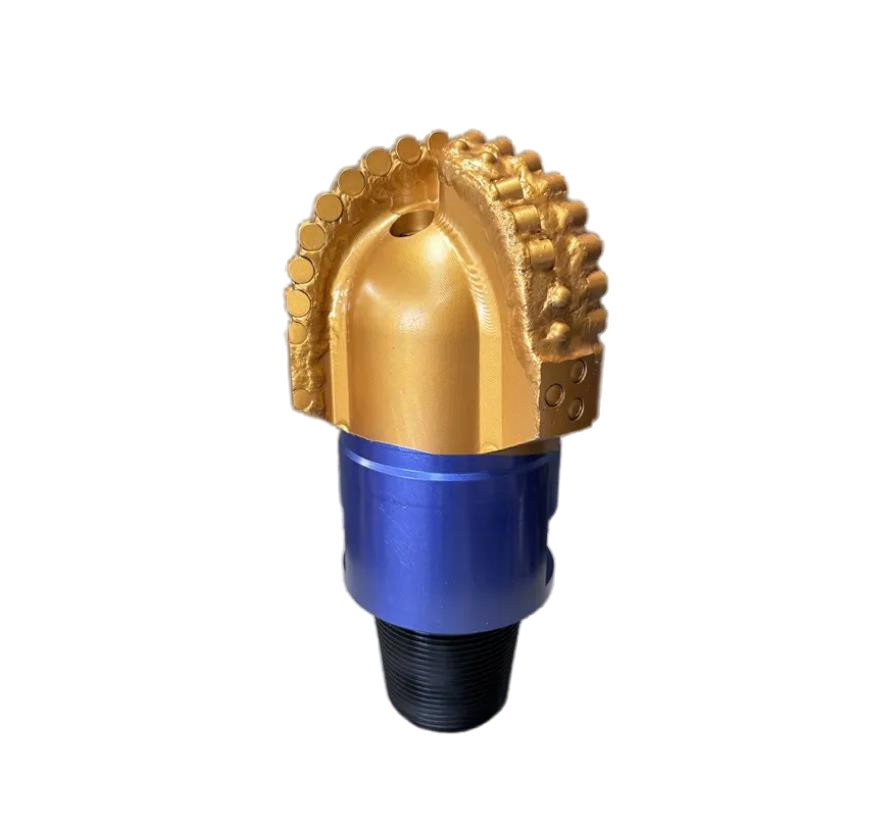

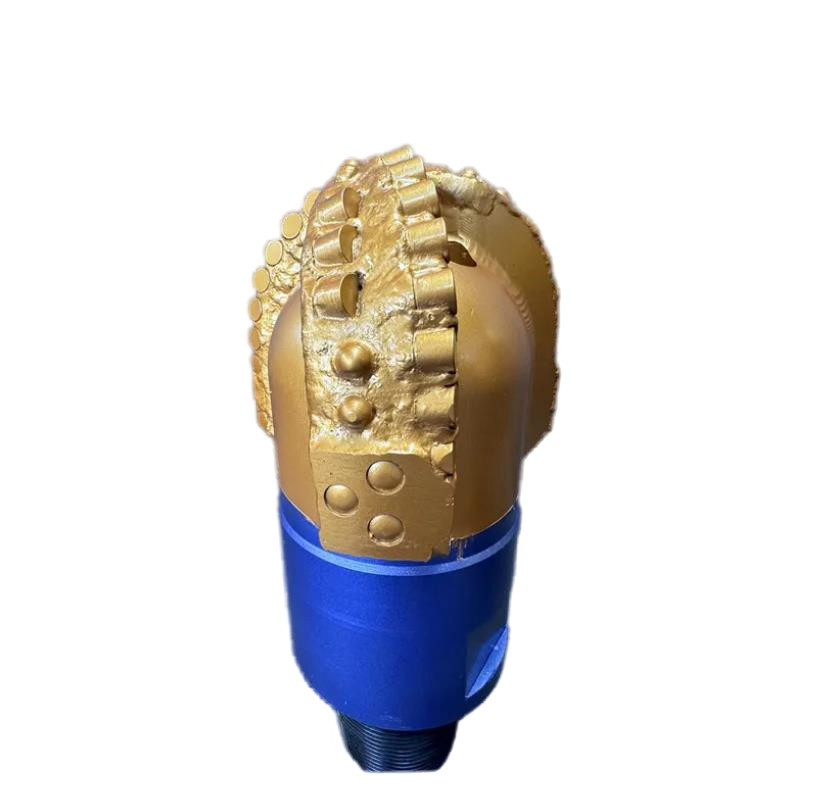

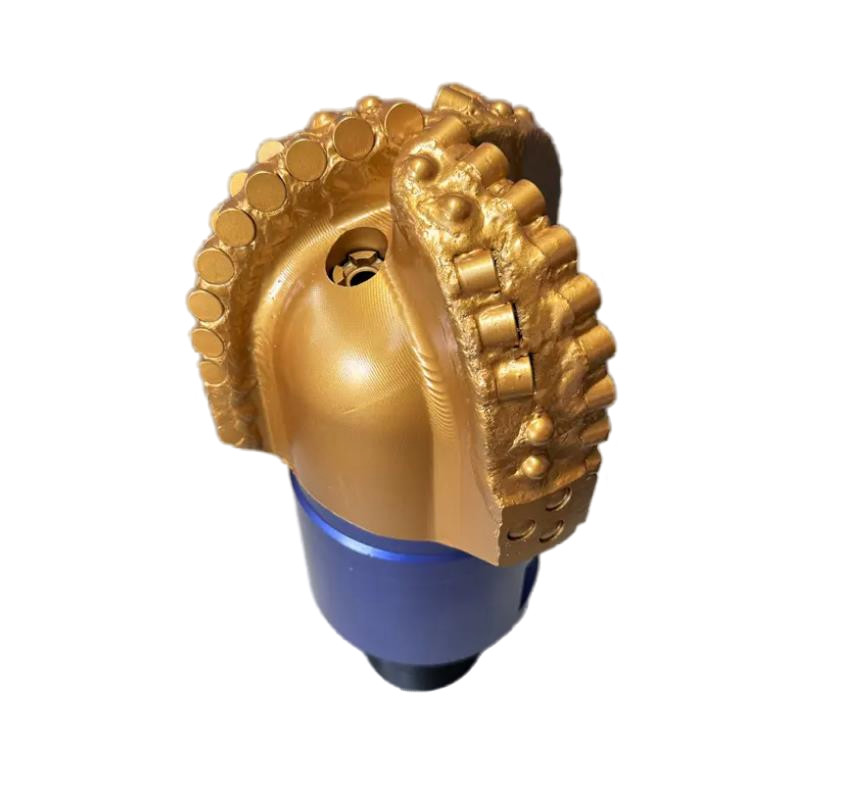

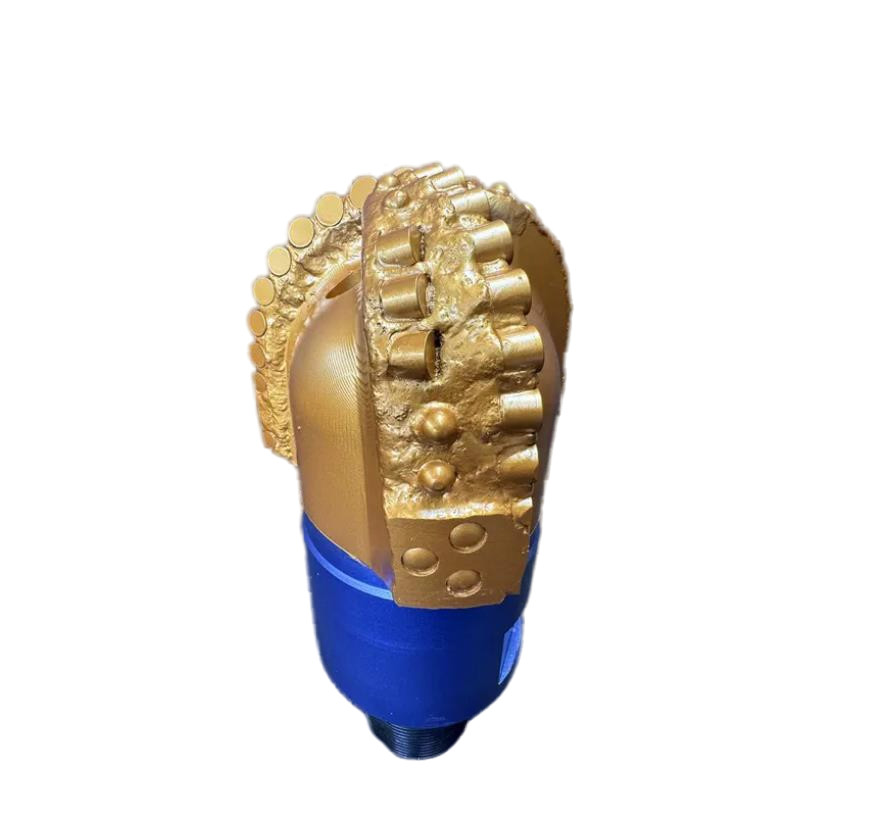

PDC Diamond Drill Bit 8 1/2" (215.9mm) 3 Blades with Double Cutters Line for Oil Gas Well Drilling
| Product Specifications | |
| Blade Quantity | 3 |
| Primary cutter size | 16mm |
| Nozzle | 3 |
| Gauge protection | 1.5-2” |
| Operation Parameters | |
| Rotary speed (r/min) | 60~260r/min |
| Weight on Bit (KN) | 30~120KN/mm |
| Application formation | Medium soft with low compressive strength and harder abrasgive stringers, such as hard shale, hard gypsolyte, soft limestone, sandstone and dolomite with stringers, etc. |
About Us
Certifications
Package&Shipping
FAQ
| Q: You are a trading company or manufacturer ? |
| A: Manufacturer, We are a 100% real factory with over 20 years' experience in water/oil/gas wells Drill Bits. |
| Q: How about your products ? |
| A : Both of tricone bits and PDC bits strictly conform to API 7 requirements and ISO9001. we will do kinds inspections before delivery, also cover for after-sales service. |
| Q: Package Methods ? |
| A: Normally wooden case, also can be steel box; can be customized if need. |
| Q: Payment Terms ? |
| A: we accept T/T, L/C, Paypal, Western Union, etc. |
| Q: Can I visit your factory ? |
| A: Yes, we welcome you to our factory all the time, will send invitation letters if need; also can show our workshop and warehouse online. |
