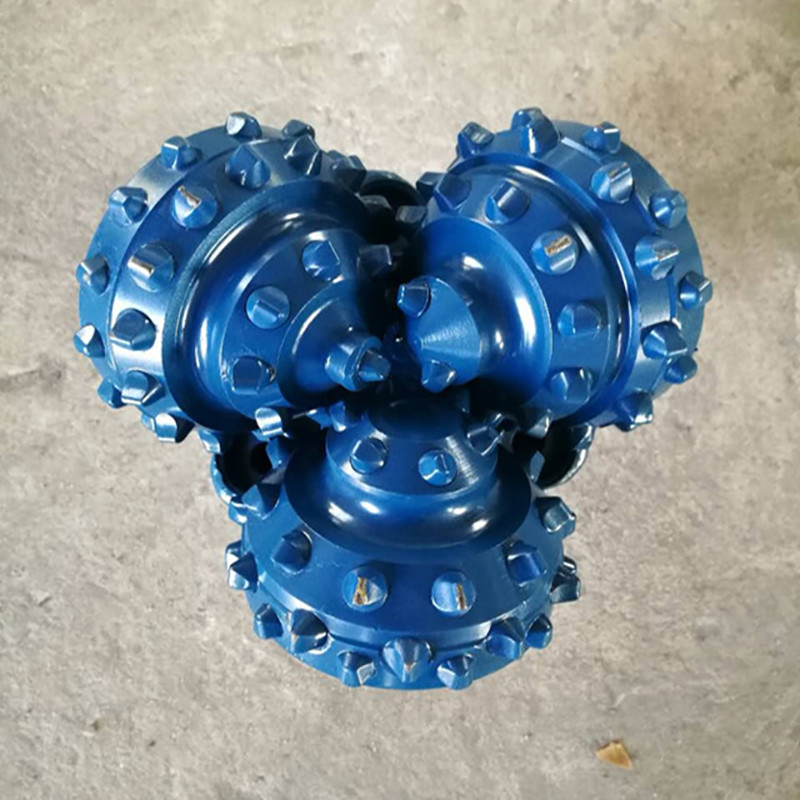

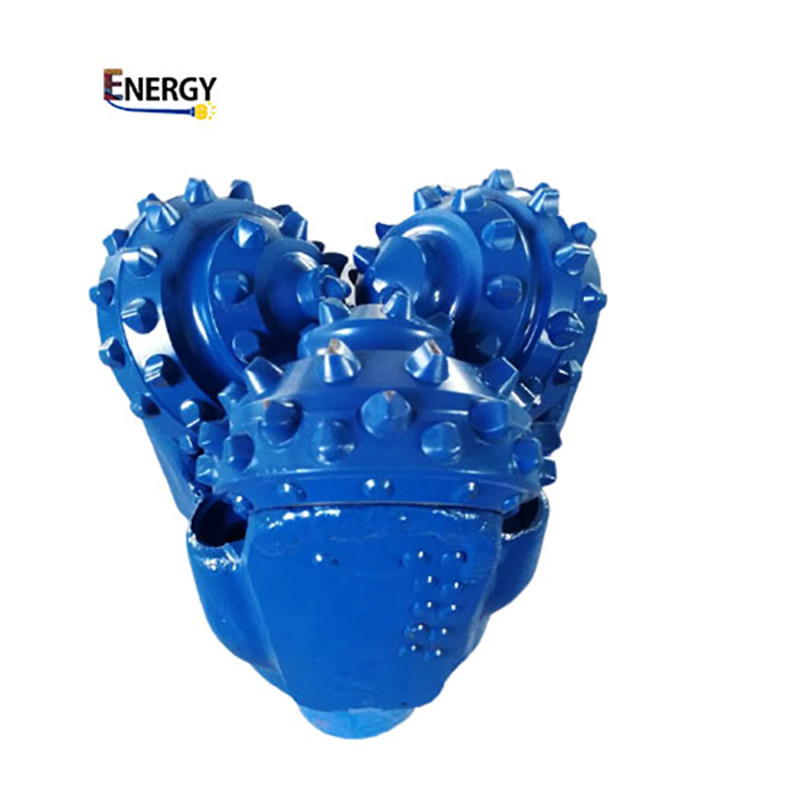

Roller Cone Drill Bit 8-1/2 Inch TCI Drilling Tool IADC 435

Roller Cone Drill Bit 8-1/2 Inch TCI Drilling Tool IADC 435

Description :

• Roller cone bits have rollers rotating around bearings. Roller cone bits use steel teeth or tungsten carbide inserts as cutting elements.
• A roller cone bit removes rock by crushing, gouging and scraping.
• Roller cone bits are made up of three legs welded together.
• Each leg holds a rolling cone fitted with teeth or inserts. Teeth are milled directly in the cone where tungsten carbide inserts are pushed in holes that are drilled in the cone.
• Roller cones that have teeth milled into them are called tooth bits. These steel teeth are brazed over with a protective hard facing which substantially increases the life of the bit. Steel tooth bits are mainly used for fast soft rock applications like surface bits or shallow wells. When the cutters are made from tungsten carbide inserts, the bit is called a TCI (tungsten carbide insert) bit. TCI bits are more durable but are not as aggressive as a steel tooth bit. TCIs are used in harder more abrasive applications.

Specification :

 Tricone Bit Size : 8-1/2”
  IADC : 435
  Make Up Torque(KN.M): 24.1-26.5
  API Connect : 4-1/2” REG
  Weight on Bit (KN): 108-227

  APPLICATION
 Petroleum & gas, water well, mining and tectonic industries, oil field, construction,
 geothermal, directional boring, and underground foundation work.

 RE: Medium hard formation /high compressive strength

Tricone Bit  Cutting Structure
Unique steel tooth structure effectively improving the wearing resistance of the
teeth and greatly increasing the rate of penetration.



Tricone Bit    Gauge Structure
Enhanced gauge protection with hard facing on the shirttail, strength enabled
with special insert tungsten carbide.



Tricone Bit   Bearing Structure
High precision journal bearing, hard-faced bearing surface. Cone bearing inlaid
with friction-reducing alloy and then silver-plated, made the rotating more
stable, safe, and durable.



Tricone Bit   Seal and Lubrication
The patented unique metal seal can enhance the seal performance, it has longer
durability than the rubber seal. The compensation bearing grease system greatly
increases the lubricating reliability and improve the bearing life effectively.



Application:
Soft formations with low compressive strength,such as shale/clay/ sand stone/
soft limestone/ halite/anhydrite.etc.

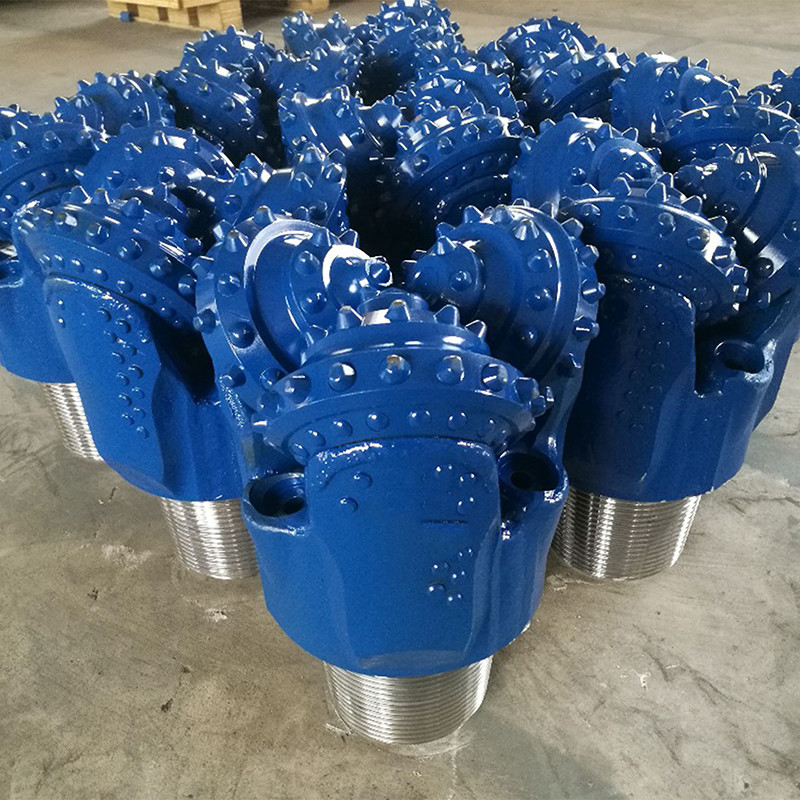

We supply different sizes of this type of bit as clients’requirement.
