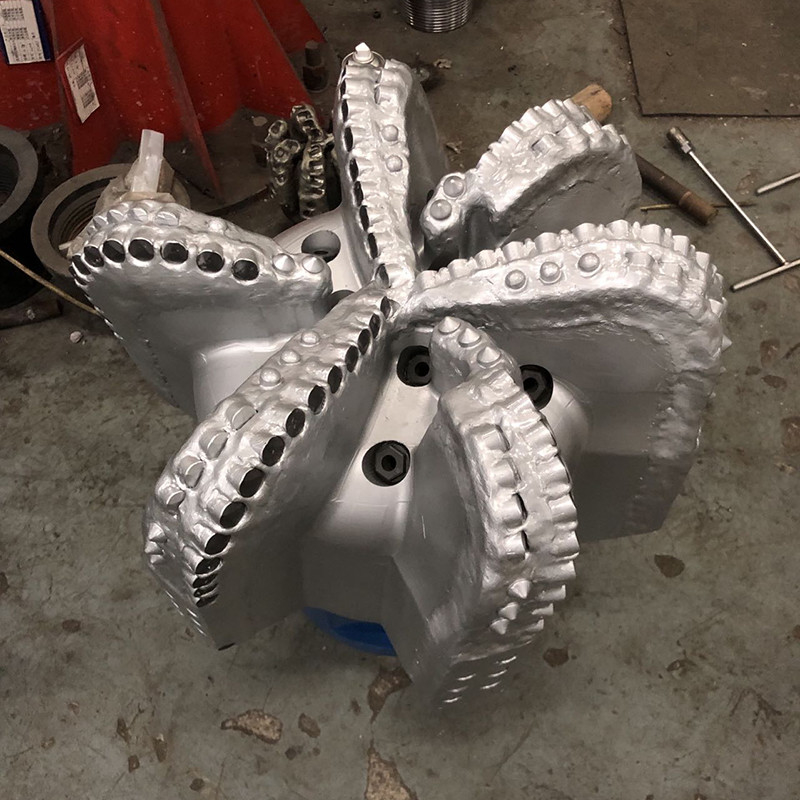

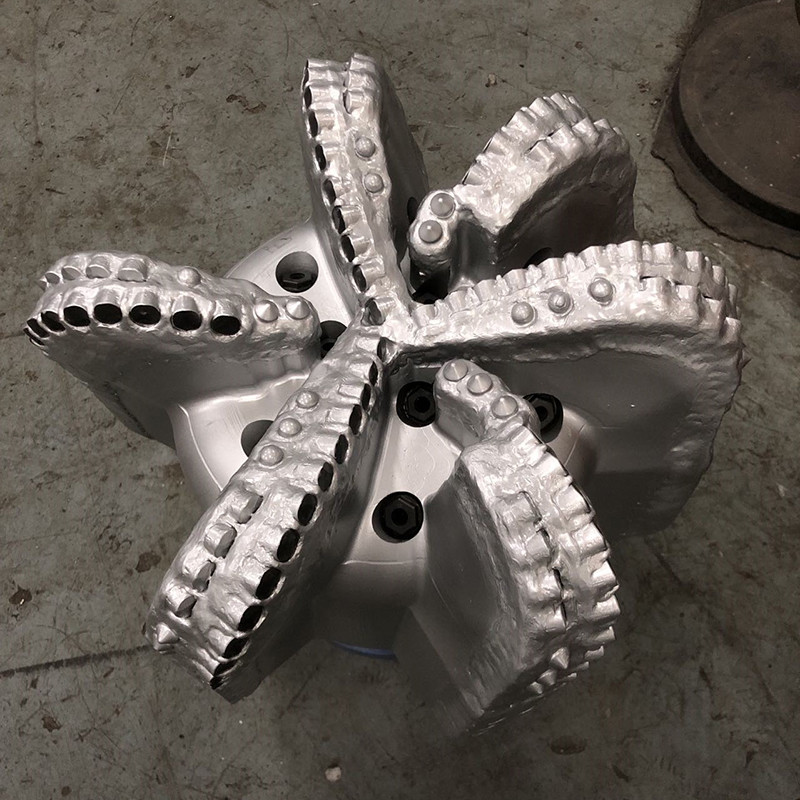

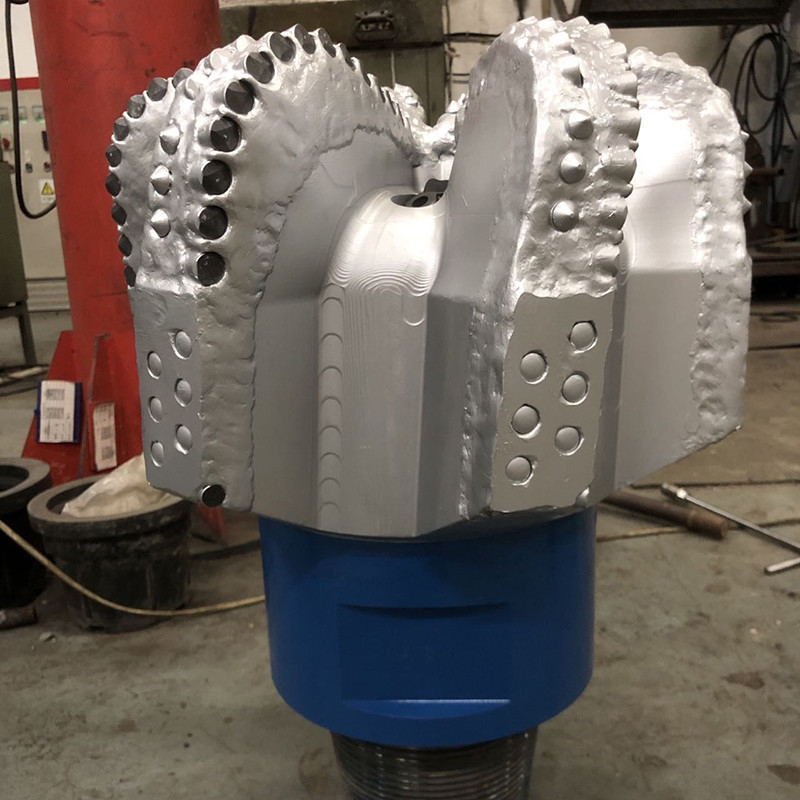

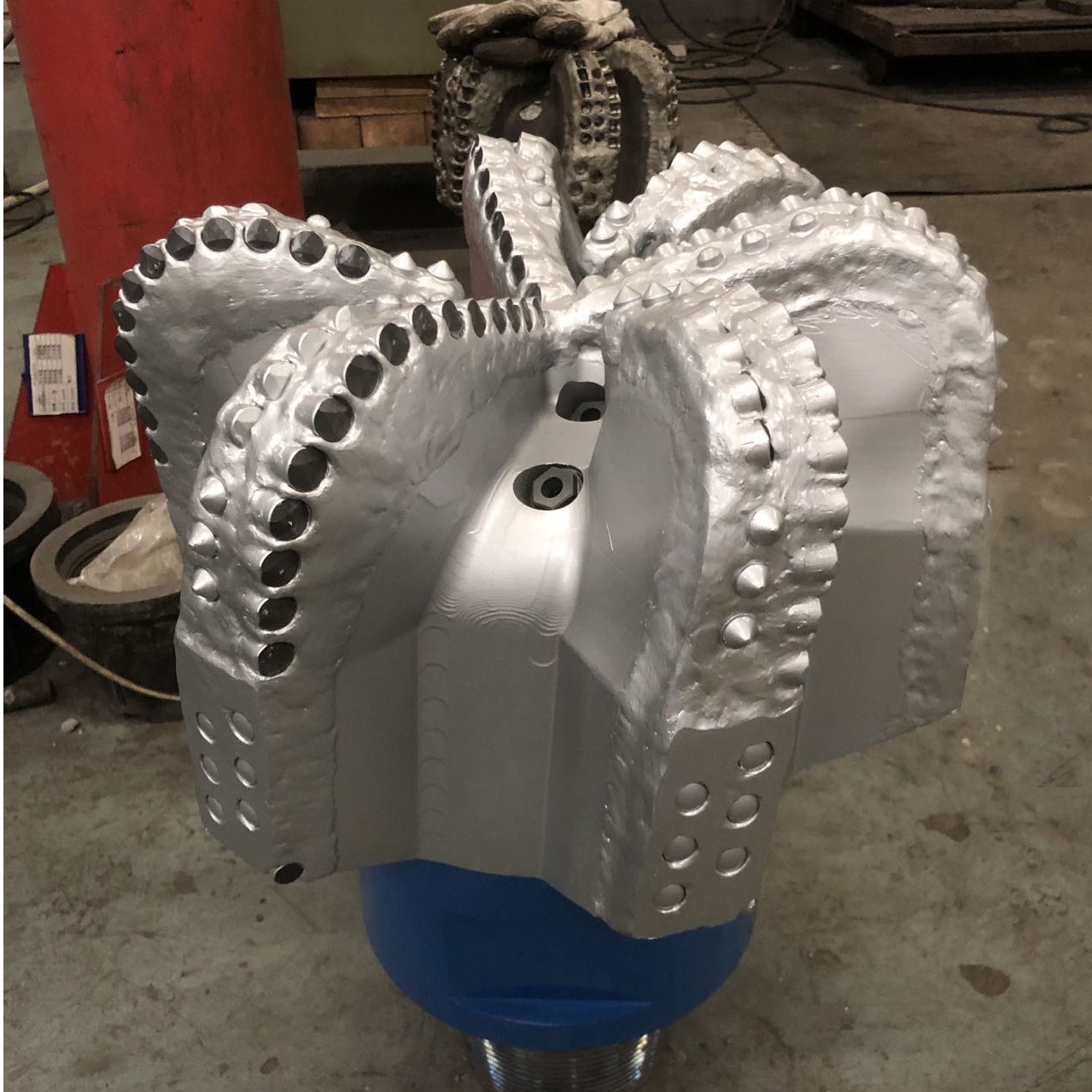

Diamond Drill Bit 17-1/2inch 6 Blade PDC Drilling Bit Of API Spec

Diamond Drill Bit 17-1/2inch 6 Blade PDC Drilling Bit of API Spec

1 . Descriptions:

PDC bits are specifically engineered for high-speed drilling in shale, limestone, and sandstone formations. Diverging from roller cones, these polycrystalline diamond compact (PDC) drill bits are solid bodies without any movable components. The fixed-cutters efficiently scrape away the rock, enabling more efficient operation at higher rotation speeds, particularly in consolidated formations.

2. Specification:

Polycrystalline diamond compacts PDC bit in the Oil and Gas Industry PDC bits get their name from the polycrystalline diamond compacts used for their cutting structure. A PDC bit is a drill bit fitted with industrial diamond cutters instead of hardened metal teeth.

3 .  Tricone Bit profile

4 . Drill Bit PDC Cutters

Polycrystalline Diamond Composite (PDC) cutters are the main point of contact for a drill bit. PDC bits remove the rock mainly by shearing.
The PDC cutters are exposed to a lot of heating and cooling down the well, a very challenging environment.
PDC cutters that have lower thermal degradation and more thermal stability generally achieve higher ROP and increased wear resistance. So, optimizing the cutter is important.

5. Drill Bit Nozzles

Drill bit nozzles help clear the cutting area and cool the Polycrystalline Diamond Composite (PDC) cutters.
Effective placement of these nozzles along with the angle they are set at plays a critical role on how efficient the drill bit performs.
Fluid channels also complement nozzle placement to imp
