PDC Diamond Bit 17-1/2 inch of Oil Rock Drilling Tool
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Fixed Cutter Diamond Bit | Use | Oil ,gas ,mining ,drilling ,water |
|---|---|---|---|
| Color | Customer Requirement | ||
| Highlight | API Connection Diamond Drill Bit,PDC Diamond Drill Bit,API Connection Diamond Drilling Bit |
||
Product Description

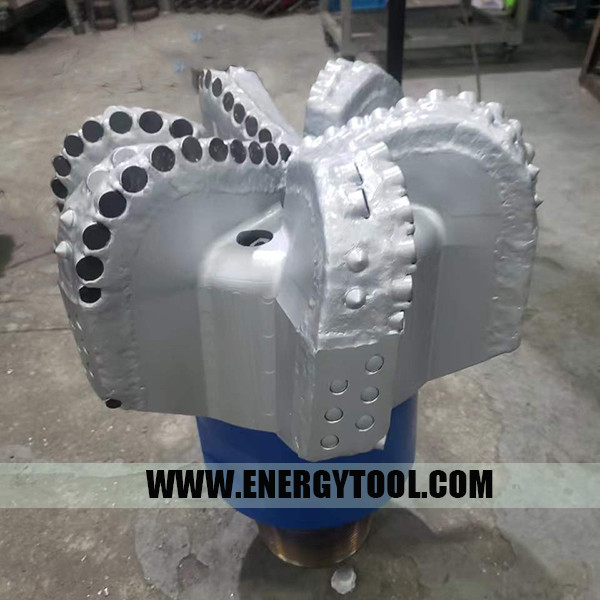

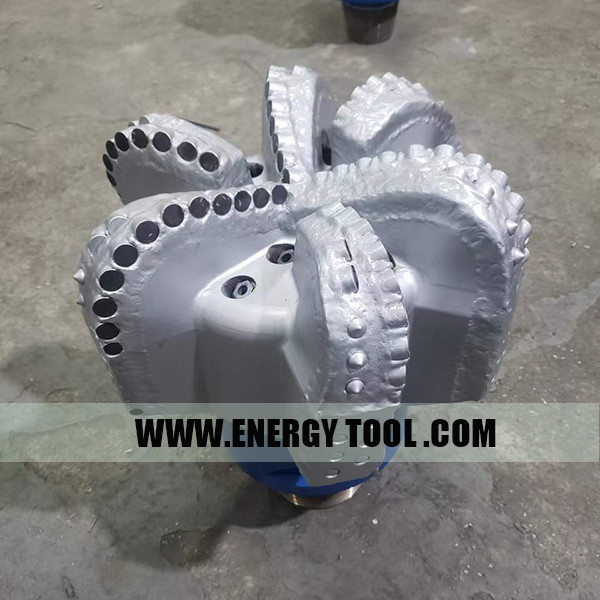

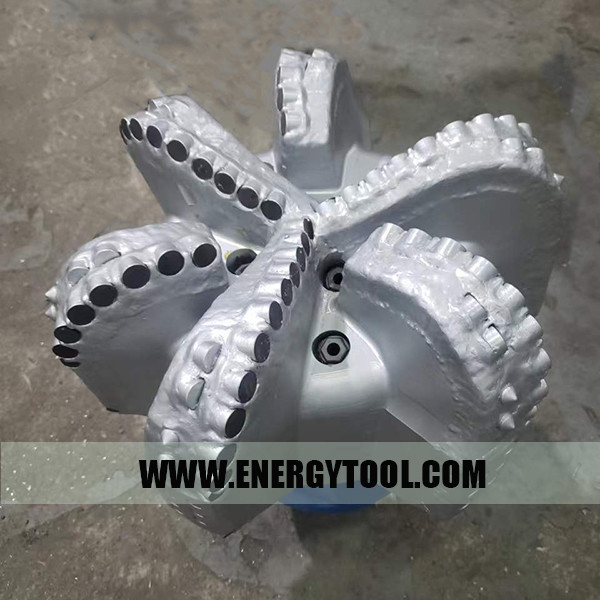

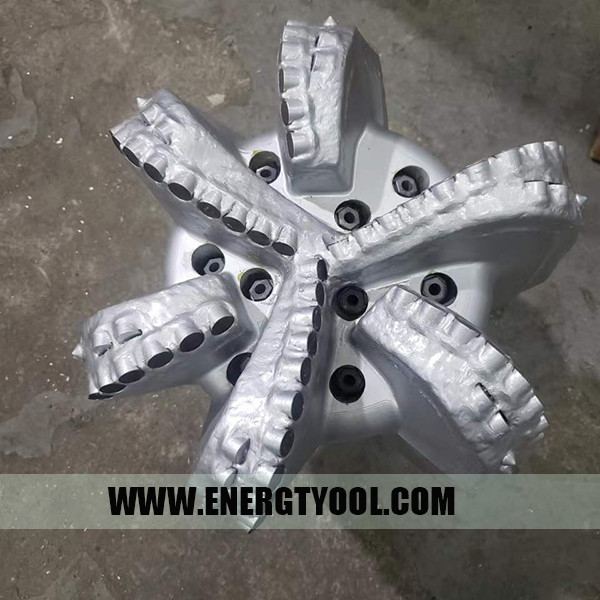

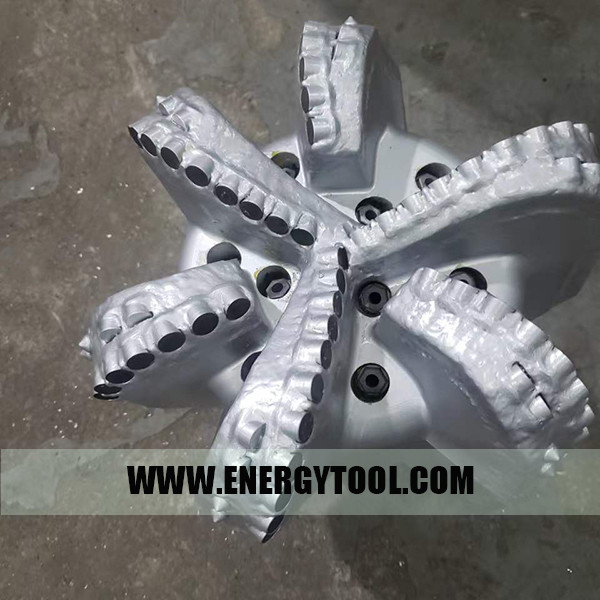

PDC Diamond Bit Oil Rock Drilling Tool
1 . Descriptions:
A PDC bit is a special type of diamond drilling bit that does not use roller cones, but instead has polycrystalline diamond inserts. PDC bits get their name from the polycrystalline diamond compacts used for their cutting structure.
According to the International Association of Drilling Contractors (IADC), the Fixed-cutter bit classification composed of four characters that designate:
- Body material
- Cutter density
- Cutter size or type
- Bit profile
2. Specification:
| SPECIFICATION | |
| Size : | 17--1/2 inch (444.5 m) |
| Drill Body Type : | Steel Body |
| Blade Quantity : | 6 |
| Nozzle Quantity : | 11 |
| API Connection (in) : | 7-5/8" REG |
| Gauge Length (In): | 3.5 |
| OPERATIONAL PARAMETERS | |
| Weight on Bit (KN): | 89 -178 KN |
| RPM | 80- DHM |
| Flow Rate (lps): | 48- 57 LPM |
| Make-Up Torque (KN): | 82-91 KN.M |
3 . Bit profile
4 . Drill Bit PDC Cutters
Polycrystalline Diamond Composite (PDC) cutters are the main point of contact for a drill bit. PDC bits remove the rock mainly by shearing.
The PDC cutters are exposed to a lot of heating and cooling down the well, a very challenging environment.
PDC cutters that have lower thermal degradation and more thermal stability generally achieve higher ROP and increased wear resistance. So, optimizing the cutter is important.
5. Drill Bit Nozzles
Drill bit nozzles help clear the cutting area and cool the Polycrystalline Diamond Composite (PDC) cutters.
Effective placement of these nozzles along with the angle they are set at plays a critical role on how efficient the drill bit performs.
Fluid channels also complement nozzle placement to improve the clearing of cuttings.
6. Steel Body PDC Bits
Steel body is the opposite of matrix body. It can of withstanding high impact loads, but is softer and lacks protective features. The strength and ductility of steel give steel-bit bodies high impact resistance.
Steel bodies are considerably stronger than matrix bodies.
A beneficial feature of steel bits is that they can easily be rebuilt a number of times because worn or damaged cutters can be replaced rather easily. This is a particular advantage for operators in low-cost drilling environments.
Polycrystalline diamond compact (PDC) drill bits are different than roller cones in that they are one piece bodies with no moving parts. The fixed-cutters shred the rock, so the bit is able to operate with higher rotation speeds more efficiently in consolidated formations.
