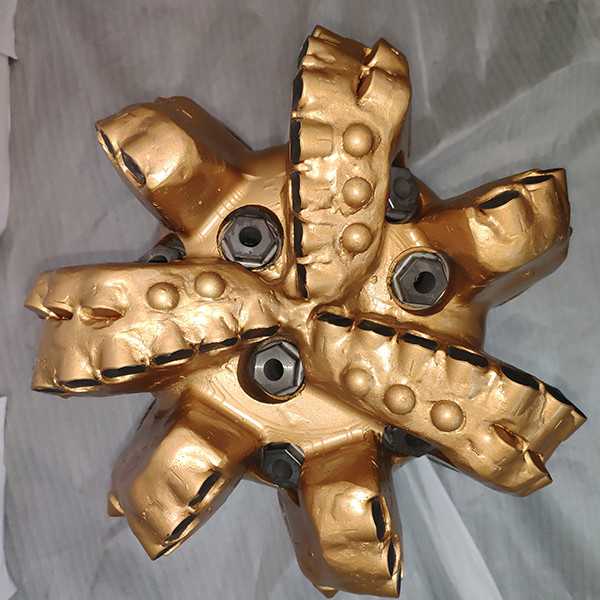

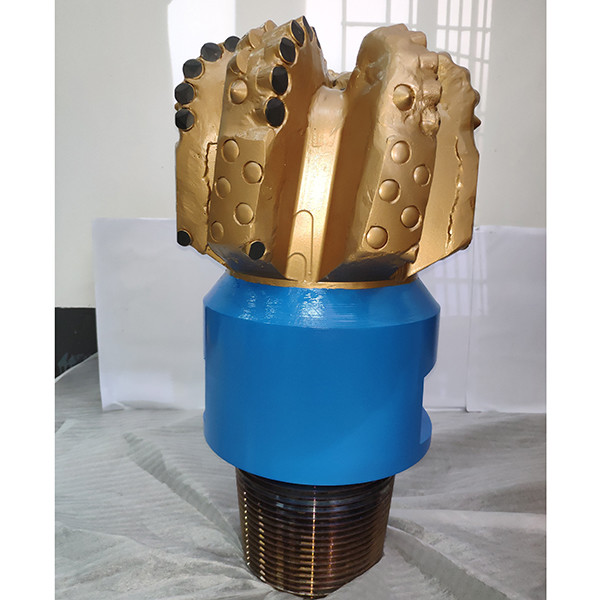

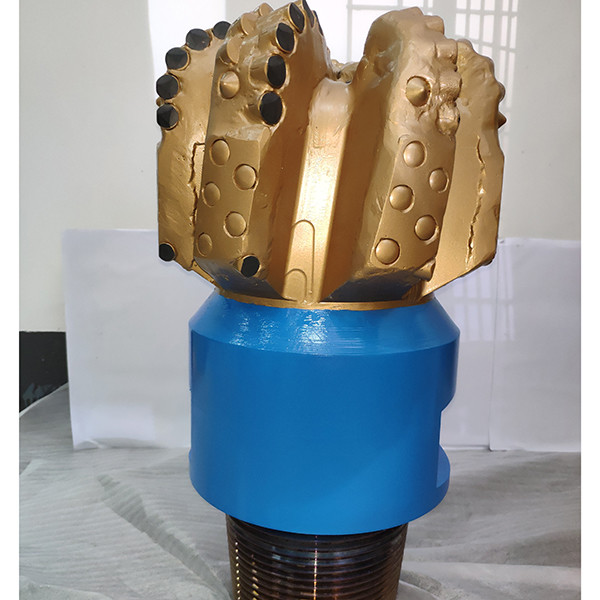

Oilfield Diamond Drilling Tool 8-1/2 Inch PDC Drill Bit With Tungston Carbide
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Diamond PDC Drill Bit | Use | Oil ,gas ,minig ,drilling |
|---|---|---|---|
| Material | Diamond ,Alloy Steel ,Tungston Carbide | Machine Type | Drilling Tool |
| Processing Type | Forging ,Casting | Application | Rock Drill Of Oil ,mining ,gas |
| Size | 8-1/2inch (215.9.mm) | Color | Customer Requirement |
| Advantage | High-efficiency , High Strength | Cutter Diameter | 16mm |
| Usage | Oil ,mining ,gas | Blades | 7 Blades |
| Market | All Over The World | Packing | Steel Box |
| Cutter Type | 1613 ,1319 | Rock Formation | F<8 |
| Nozzle Qunatity | 7 | ||
| Highlight | 8-1/2 Inch PDC Drill Bit,Tungston Carbide PDC Drill Bit,Oilfield Diamond Drilling Tool |
||
Product Description
API Rock Bit 8-1/2 Inch PDC Drill Bit Of Oilfeild Diamond Drilling Tool
1 . Descriptions:
A PDC Drill bit is a Polycrystalline Diamond Compact fixed on steel body cutter blades .The material ,cutters , profile, size are the important factory to effect the drill bit . When you choose the drill bit ,you should be more consider the condition as below :
- PDC Drill Bit Body material
- PDC Drill Bit Cutter density
- PDC Drill Bit Cutter size or type
- PDC Drill Bit Bit profile
- PDC Drill Bit Blades of Cutter
The PDC drill bits size 3~22inch with 3~9Blades are available. And different classification cutter are optional according to your budget .
2. Specification:
| SPECIFICATION | |
| Size : | 8-1/2inch (215.9.mm) |
| Drill Body Type : | Steel Body |
| Blades Quantity : | 7 |
| Nozzles Quantity : | 7 |
| API Connection (in) : | 4-1/2" REG |
| Gauge Length (In): | 2 |
| OPERATIONAL PARAMETERS | |
| Weight on Bit (KN): | 22-111 |
| RPM Range(Rotary): | 80- DHM |
| Flow Rate(lps): | 28- 37 LPM |
| Make-Up Torque(KN): | 16- 22KN.M |
3 . PDC Bit of profile
Profile shape of PDC Bit is one of the most important characteristics of fixed-cutter PDC Drill bits, having direct influence on possibilities for cutter placement and densities and on hydraulic layouts. Profile of PDC Drill Bit also affects:PDC Drill Bit stability
4 . Drill Bit PDC Cutters
Polycrystalline Diamond Composite (PDC) cutters are the main point of contact for a drill bit. PDC bits remove the rock mainly by shearing.
The PDC cutters are exposed to a lot of heating and cooling down the well, a very challenging environment.
PDC cutters that have lower thermal degradation and more thermal stability generally achieve higher ROP and increased wear resistance. So, optimizing the cutter is important.
5. PDC Drill Bit Nozzles
Drill bit nozzles help clear the cutting area and cool the Polycrystalline Diamond Composite (PDC) cutters.
Effective placement of these nozzles along with the angle they are set at plays a critical role on how efficient the drill bit performs.
Fluid channels also complement nozzle placement to improve the clearing of cuttings.
6. Steel Body PDC Bits
Steel body is the opposite of matrix body. It can of withstanding high impact loads, but is softer and lacks protective features. The strength and ductility of steel give steel-bit bodies high impact resistance.
Steel bodies are considerably stronger than matrix bodies.
A beneficial feature of steel bits is that they can easily be rebuilt a number of times because worn or damaged cutters can be replaced rather easily. This is a particular advantage for operators in low-cost drilling environments.
Polycrystalline diamond compact (PDC) drill bits are different than roller cones in that they are one piece bodies with no moving parts. The fixed-cutters shred the rock, so the bit is able to operate with higher rotation speeds more efficiently in consolidated formations.
