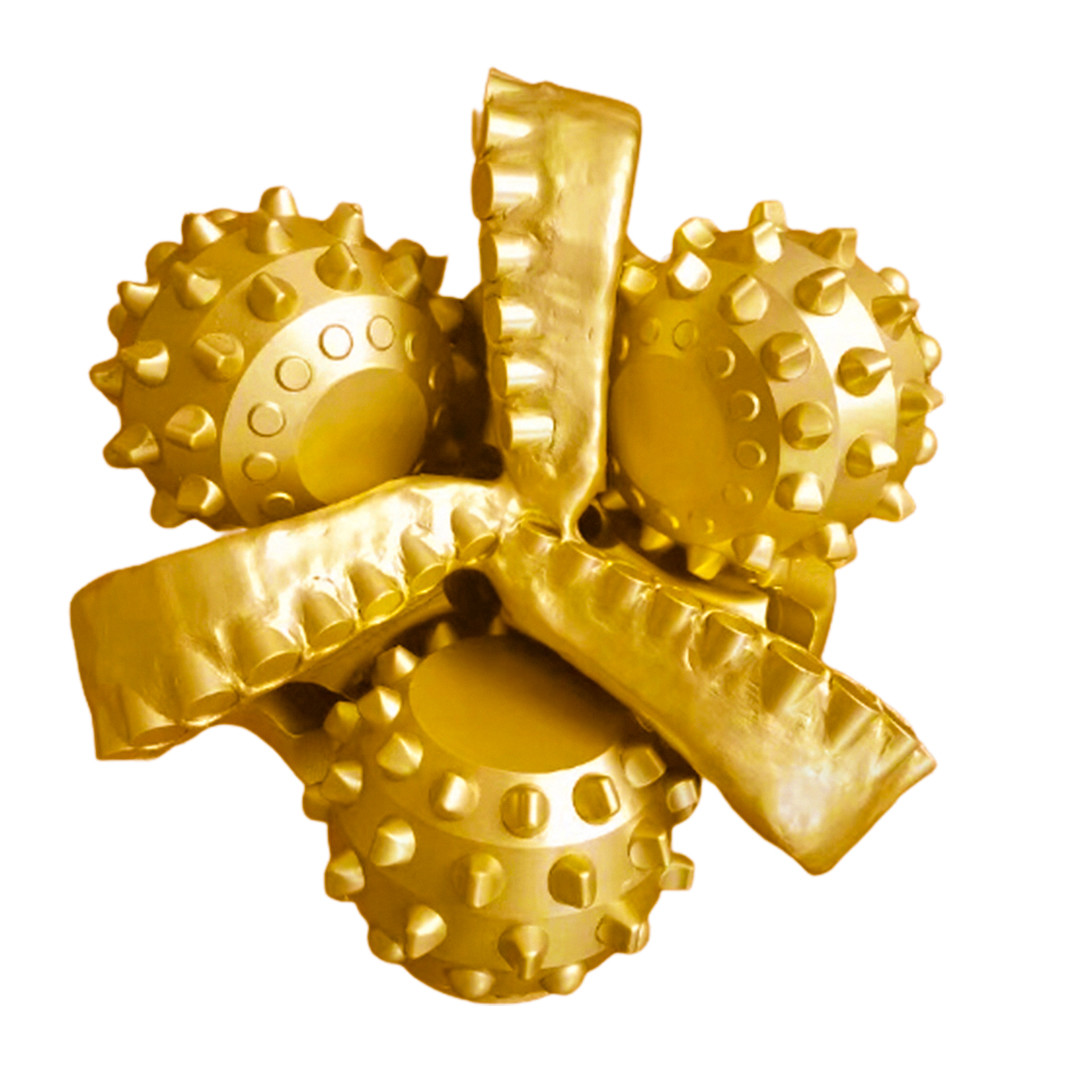

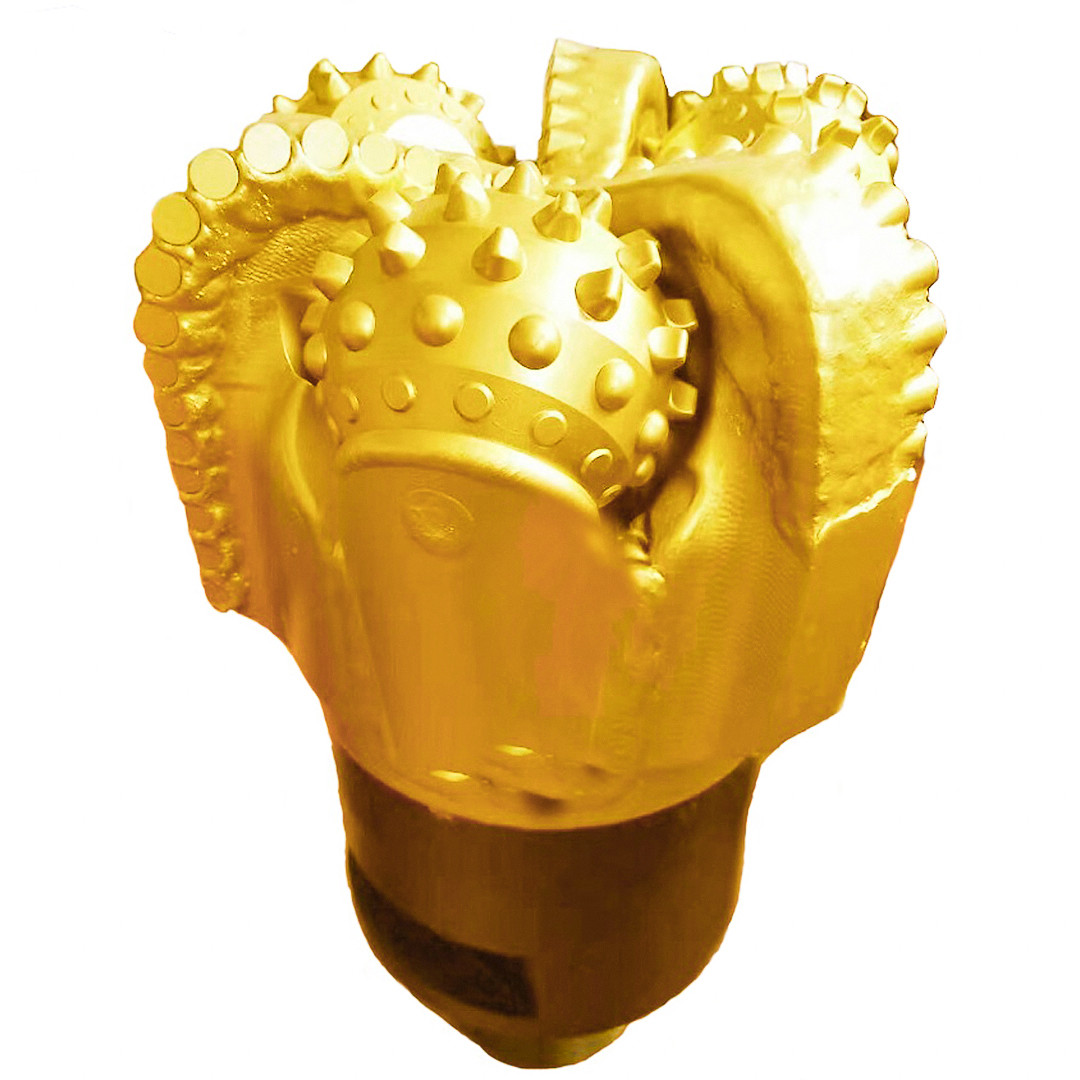

Tugnsten Carbide Insert Bit 9-1/2 Inch PDC Hybrid Drill Bit Of API Rock Bit

  • Tugnsten Carbide Insert Bit 9-1/2 Inch PDC Hybrid Drill Bit Of API Rock Bit
  • Tugnsten Carbide Insert Bit 9-1/2 Inch PDC Hybrid Drill Bit Of API Rock Bit
Place of Origin China
Brand Name EN
Certification API . ISO
Model Number 9500
Minimum Order Quantity 1 Pcs
Price USD 3000 /Pcs
Packaging Details Wooden Box
Delivery Time 2-4 Weeks
Payment Terms L/C, T/T
Supply Ability 3000 PCS / Year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Diamond Drill Bit Material Diamond ,Alloy Steel ,Tungston Carbide
Use Oil ,gas ,minig ,drilling Application Rock Drill Of Oil ,mining ,gas
Processing Type Forging ,Casting Machine Type Drilling Tool
Color Customer Requirement Usage Oil ,mining ,gas
Packing Wooden Box Or Steel Box Cutter Diameter 13mm Or 16mm
Size 9-1/2"(241mm)
Highlight

PDC And Tricone Hybrid Drill Bit

,

API ISO Hybrid Drill Bit

,

241mm PDC And Tricone Drill Bit
Leave a Message
Product Description

Tugnsten Carbide Insert Bit 9-1/2 Inch PDC Hybrid Drill Bit Of API Rock Bit





SPECIFICATION


Hybride Type: PDC and Roller
Diamete Size : 8 1/2(215.9mm)
Blades Quantity : 3
Nozzles Quantity : 3
API Connect : 4-1/2” REG
Gauge Length (In): 2.0



OPERATION PARAMETERS
Weight on Bit (KN): 14-100
RPM Range (Rotary): 60-350
Flow Rate (lps) : 22-38
Make-Up Torque (KN): 51.7-56.9





SPECIFICATION

Hybrid Type :

PDC & Roller

Diameter Size:

9 - 1/2”

Body Type :

Steel Body

Blades Qty:

3

Roller Qty

3

Gauge Length

2.0"

API Connection

4 -1/2" REG

Make Up Torque(KN):

51.7-56.9
OPERATION PARAMETERS

Rotary Speed (rpm):

60- 350

Weight On Bit (KN):

14-100

Flow Rate (lps):

22-38





Hybrid bit technology is a combination of multiple bits designed for oil and natural gas drilling .

The hybrid bit is specially designed for the mixing of hard, highly abrasive sandstone, shale and siltstone.

Some common types of hybrid bit technology are the combination of roller cone and fixed bit, rotary and

planer bit, PDC and diamond impregnated bit. Compared with conventional drills, the main advantages of

hybrid drills are: Save the time of switching drill bits Increase the rate of penetration (ROP) by 25%,

improve the speed and durability, but do not affect the stability; Multi-segment wells are drilled
through a single mixed bit to maximize performance.
