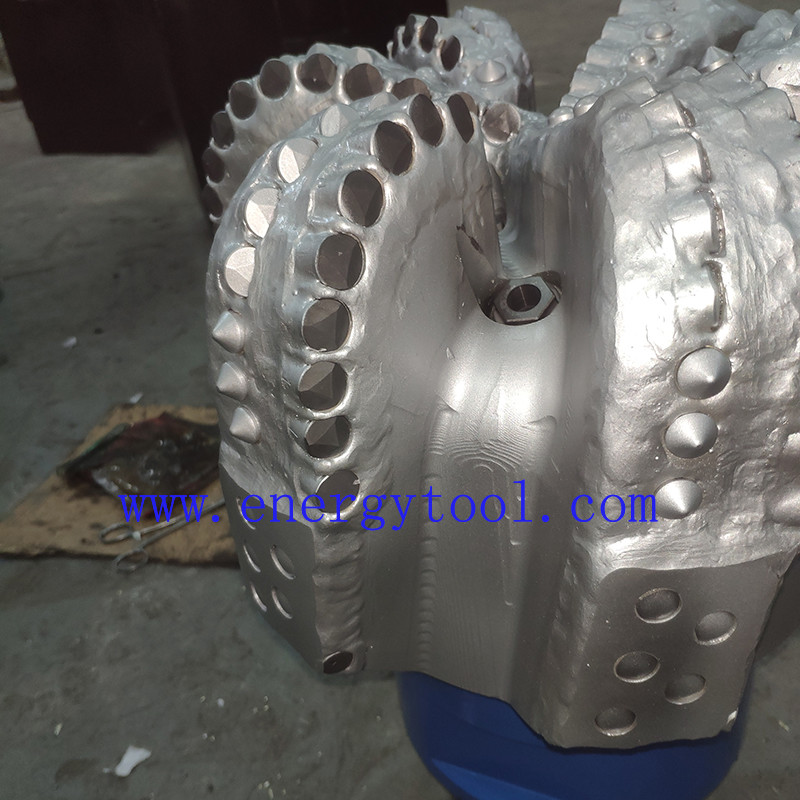

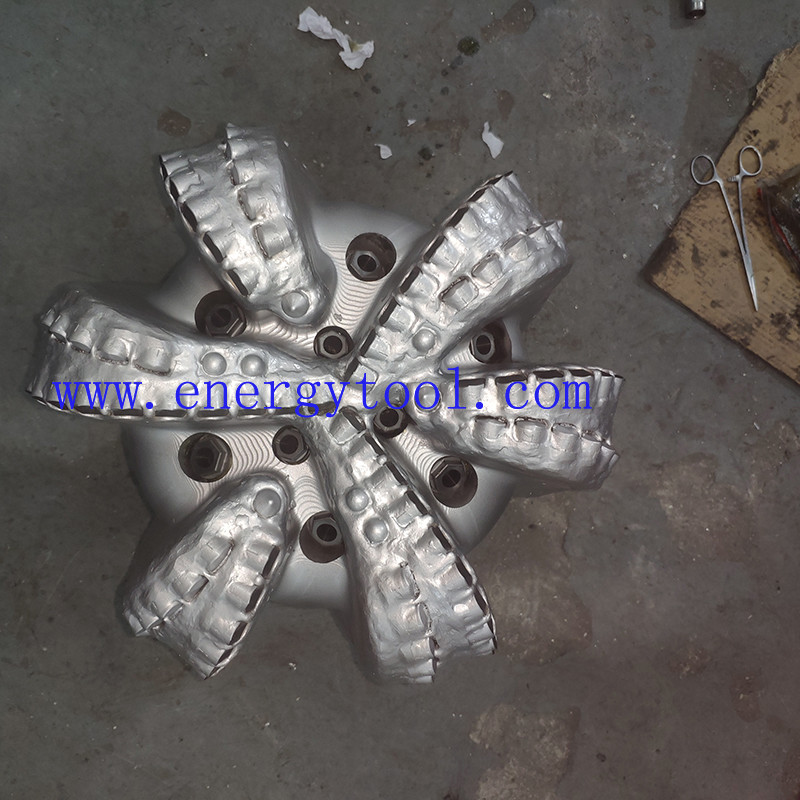

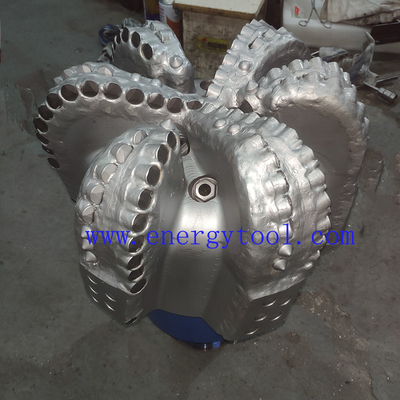

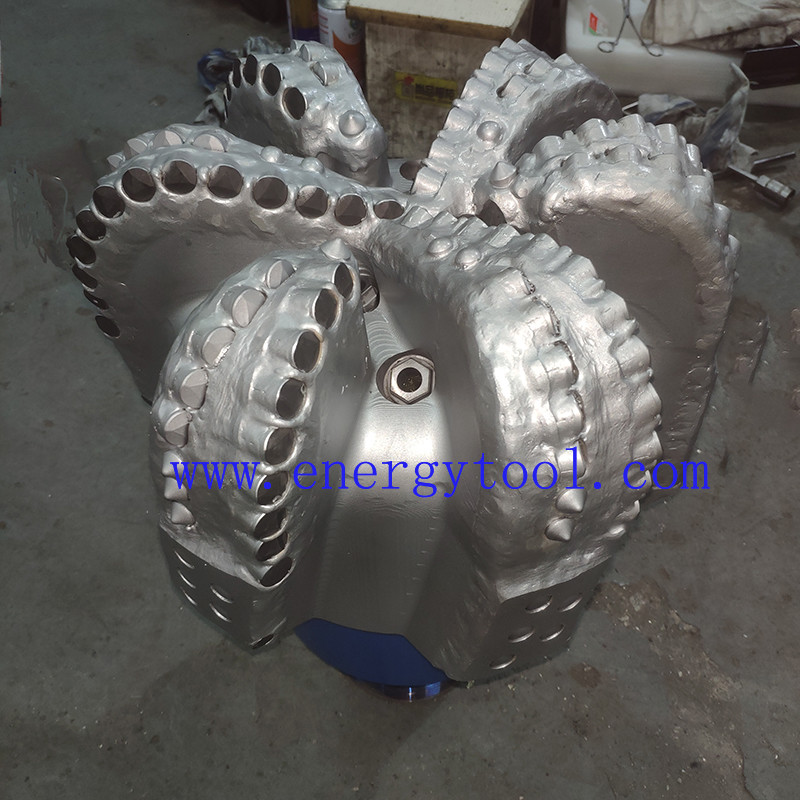

Oilfield PDC Drill Bit 12-1/4 Inch Diamond Bit Of API Spec
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Diamond Drill Bit | Machine Type | Drilling Industry |
|---|---|---|---|
| Processing Type | Forging | Application | Rock Drill |
| Size | 12-1/4" (311.1mm) | Color | Customer Requirement |
| Advantage | High-efficiency , High Strength | Market | All Over The World |
| Rock Formation | F<8 | ||
| Highlight | 12-1/4 Inch PDC Drill Bit,API Spec PDC Drill Bit,Oilfield PDC Drill Bit |
||
Product Description
Oilfield PDC Drill Bit
1 . Descriptions:
.
The specifications for a PDC (polycrystalline diamond compact) drill bit can vary depending on the specific application and the manufacturer. However, here are some common specifications that may be included in a PDC drill bit specification:
- Bit size
- Number of blades
- Cutter size and shape
- Cutter placement
- Cutter type
- Gauge length
- Connection type
- Hydraulic design
- Operating parameters
2. Specification:
| SPECIFICATION | |
| Size : | 12-1/4 inch (311.1mm) |
| Drill Body Type : | Steel Body |
| Blade Quantity : | 6 |
| Nozzle Quantity : | 7 |
| API Connection (in) : | 6-5/8" REG |
| Gauge Length (In): | 3.0 |
| OPERATIONAL PARAMETERS | |
| Weight on Bit (KN): | 89 -178 KN |
| RPM Range (Rotary): | 100- DHM |
| Flow Rate (lps): | 48- 56 LPM |
| Make-Up Torque (KN): | 51 -57 KN.M |
3 . PDC Bit profile

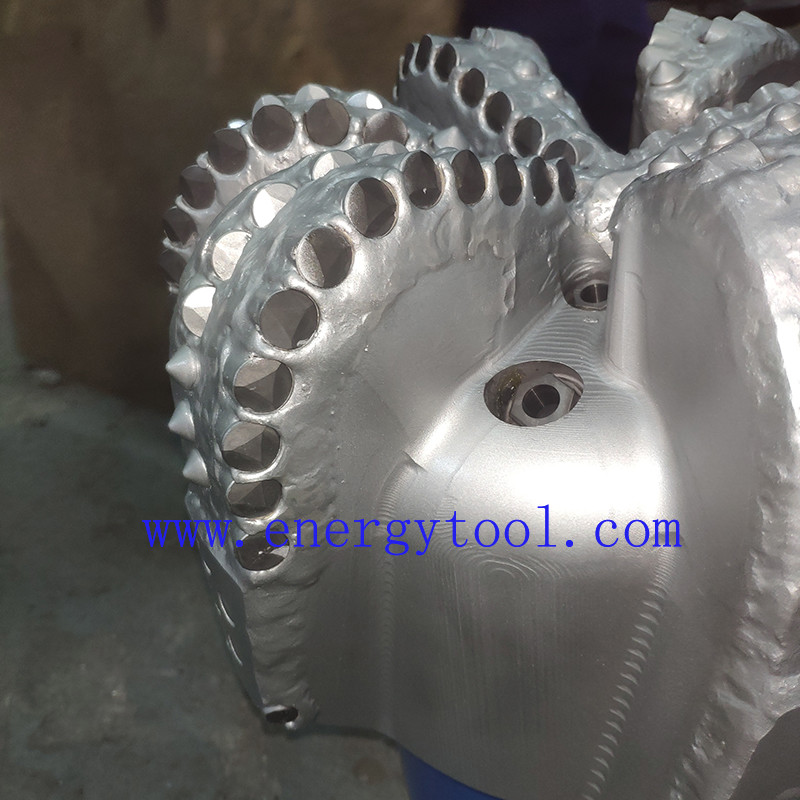

4 . Drill Bit PDC Cutter
Polycrystalline Diamond Composite (PDC) cutters are the main point of contact for a drill bit. PDC bits remove the rock mainly by shearing.
The PDC cutters are exposed to a lot of heating and cooling down the well, a very challenging environment.
PDC cutters that have lower thermal degradation and more thermal stability generally achieve higher ROP and increased wear resistance. So, optimizing the cutter is important.
5. Drill Bit Nozzle
Drill bit nozzles help clear the cutting area and cool the Polycrystalline Diamond Composite (PDC) cutters.
Effective placement of these nozzles along with the angle they are set at plays a critical role on how efficient the drill bit performs.
Fluid channels also complement nozzle placement to improve the clearing of cuttings.
6. Steel Body PDC Bits
Steel body is the opposite of matrix body. It can of withstanding high impact loads, but is softer and lacks protective features. The strength and ductility of steel give steel-bit bodies high impact resistance.
Steel bodies are considerably stronger than matrix bodies.
A beneficial feature of steel bits is that they can easily be rebuilt a number of times because worn or damaged cutters can be replaced rather easily. This is a particular advantage for operators in low-cost drilling environments.
Polycrystalline diamond compact (PDC) drill bits are different than roller cones in that they are one piece bodies with no moving parts. The fixed-cutters shred the rock, so the bit is able to operate with higher rotation speeds more efficiently in consolidated formations.
7. Special Requirement :
