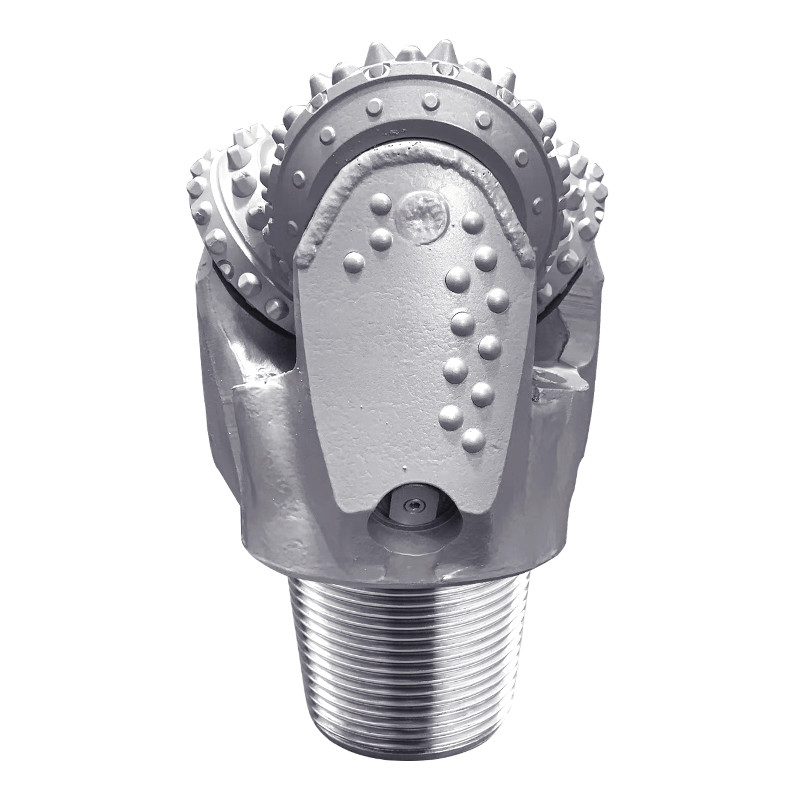

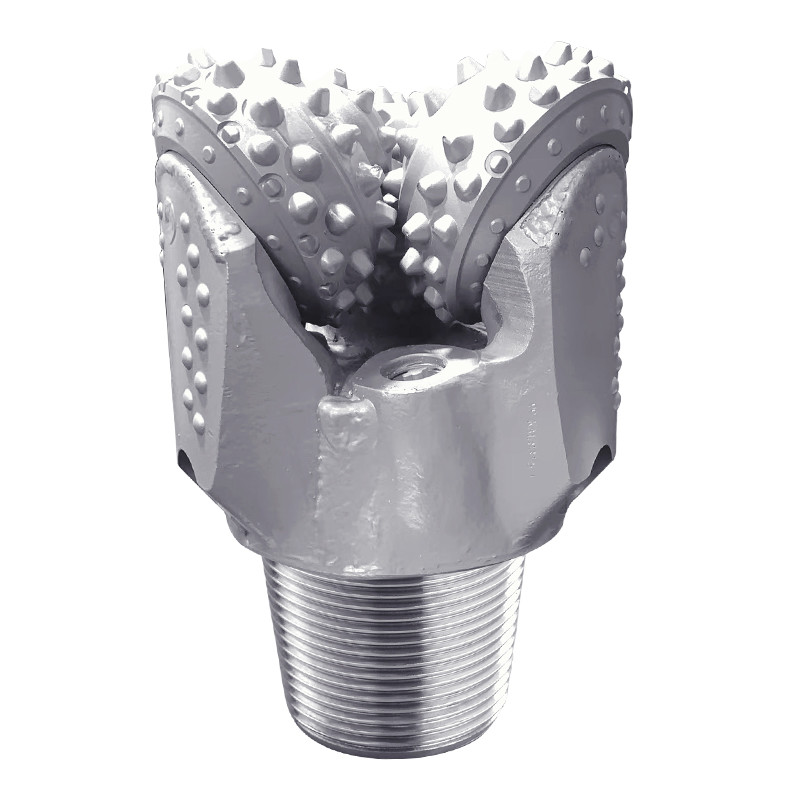

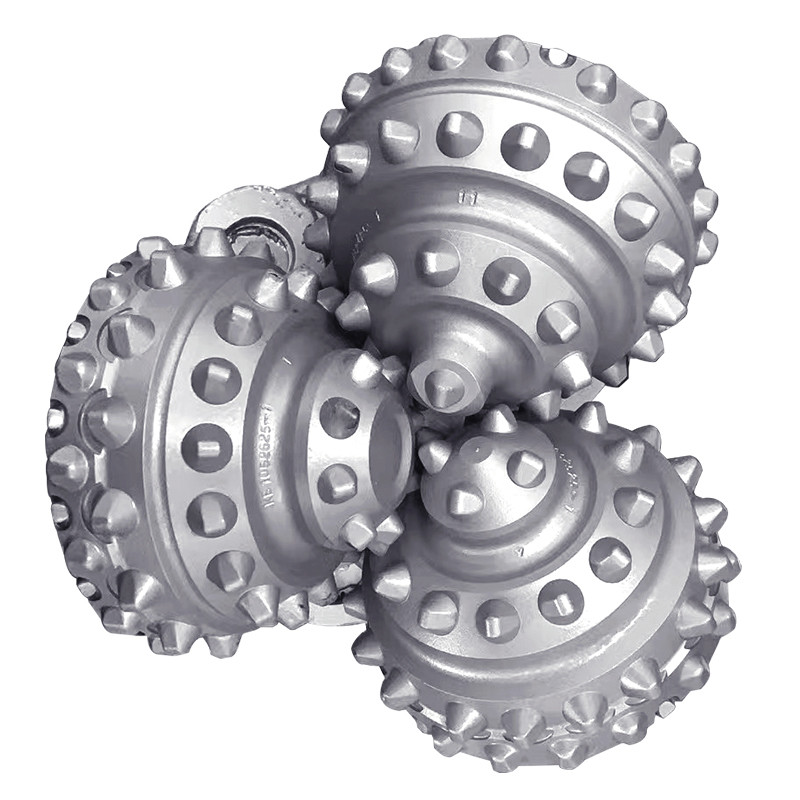

10-5/8 Inch Diameter Rotary Tri Cone Drill Bits

  • 10-5/8 Inch Diameter Rotary Tri Cone Drill Bits
  • 10-5/8 Inch Diameter Rotary Tri Cone Drill Bits
  • 10-5/8 Inch Diameter Rotary Tri Cone Drill Bits
  • 10-5/8 Inch Diameter Rotary Tri Cone Drill Bits
Place of Origin China
Brand Name ENG
Certification API, ISO
Model Number 537GT
Minimum Order Quantity 1
Price 1000-20000
Packaging Details Wooden Box
Delivery Time 4 weeks
Payment Terms L/C,T/T,Western Union
Supply Ability 5000PCS/Year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Diameter 10 5/8'' (270mm) Bearing Type Journal Bearing/flat Rubber Sealing Ring
Drilling Cycle Type Mud Circulation Connection Thread Type 6 5/8'' REG
Bit Weight 72 Kg
Highlight

10 5/8" Water Well Drill Bits

,

10 5/8 rotary tricone rock drill bit

,

Effective rotary tricone rock drill bit
Leave a Message
Product Description


10-5/8" Rotary Tricone Roller Drilling Water Well Bits​



Product Specifications
Diameter 10 5/8" 270mm
Bearing Type Journal bearing/flat rubber seal ring
Drilling cycle type Mud circulation
Connection thread ty 6 5/8'' REG
Operation Parameters
Rotary speed (r/min) 40-110 r/min
Weight on Bit (KN) 0.5～1.05 kN/mm
Formation low compressive strength, medium soft, hard abrasive interbedded formation, such as hard shale, anhydrite, soft limestone, sandstone, interbedded dolomite, etc.



  • Product profile
  1. Carbide insert with high strength and wear resistance are adopted to improve the wear resistance and cutting efficiency.
  2. New journal bearing structure greatly prolongs the working life of the bearing, and has the ability to withstand medium bit pressure and adapt to high speed.
  3. New flat rubber sealing ring is more suitable for the working environment and using parameters of roller cone bit.
  4. New sealing structure makes the sealing performance match with the bearing, thus greatly prolongs the service life of the drill bit.



10-5/8 Inch Diameter Rotary Tri Cone Drill Bits 010-5/8 Inch Diameter Rotary Tri Cone Drill Bits 1







About Us


        10-5/8 Inch Diameter Rotary Tri Cone Drill Bits 210-5/8 Inch Diameter Rotary Tri Cone Drill Bits 3




Certifications


10-5/8 Inch Diameter Rotary Tri Cone Drill Bits 4





Package&Shipping


10-5/8 Inch Diameter Rotary Tri Cone Drill Bits 5

10-5/8 Inch Diameter Rotary Tri Cone Drill Bits 6




FAQ


Q: You are a trading company or manufacturer ?
A: Manufacturer, We are a 100% real factory with over 10 years' experience in water/oil/gas wells Drill Bits.

Q: How about your products ?
A : Both of tricone bits and PDC bits strictly conform to API 7 requirements and ISO9001. we will do kinds inspections before delivery, also cover for after-sales service.

Q: Package Methods ?
A: Normally wooden case, also can be steel box; can be customized if need.

Q: Payment Terms ?
A: we accept T/T, L/C, Paypal, Western Union, etc.

Q: Can I visit your factory ?
A: Yes, we welcome you to our factory all the time, will send invitation letters if need; also can show our workshop and warehouse online.
